Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
APTM10DAM05TGMOSFET N-CH 100V 278A SP4 |
3258 | 127.82 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 278A (Tc) | 10V | 5mOhm @ 125A, 10V | 4V @ 5mA | 700 nC @ 10 V | ±30V | 20000 pF @ 25 V | - | 780W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM10SKM05TGMOSFET N-CH 100V 278A SP4 |
2624 | 127.82 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 278A (Tc) | 10V | 5mOhm @ 125A, 10V | 4V @ 5mA | 700 nC @ 10 V | ±30V | 20000 pF @ 25 V | - | 780W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|

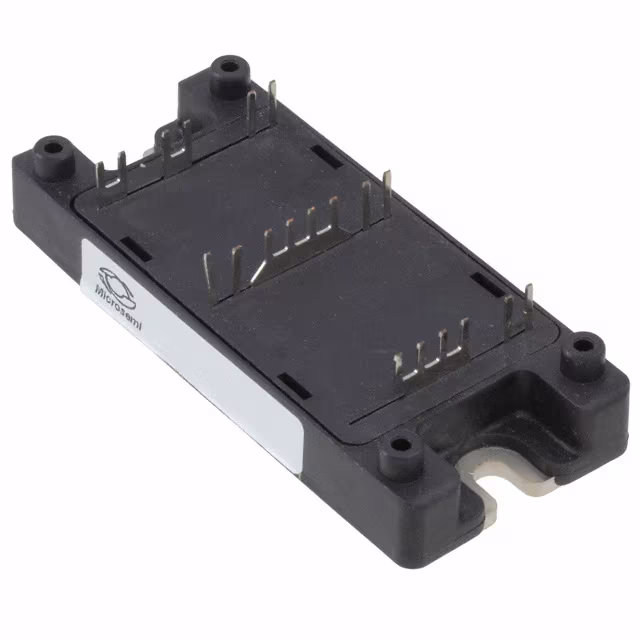

APTC60DAM18CTGMOSFET N-CH 600V 143A SP4 |
3345 | 181.15 |
ДобавитьРасследования |
Bulk | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 143A (Tc) | 10V | 18mOhm @ 71.5A, 10V | 3.9V @ 4mA | 1036 nC @ 10 V | ±30V | 28000 pF @ 25 V | - | 833W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM50DAM19GMOSFET N-CH 500V 163A SP6 |
2854 | 202.63 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 163A (Tc) | 10V | 22.5mOhm @ 81.5A, 10V | 5V @ 10mA | 492 nC @ 10 V | ±30V | 22400 pF @ 25 V | - | 1136W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM50SKM19GMOSFET N-CH 500V 163A SP6 |
2233 | 202.63 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 163A (Tc) | 10V | 22.5mOhm @ 81.5A, 10V | 5V @ 10mA | 492 nC @ 10 V | ±30V | 22400 pF @ 25 V | - | 1136W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|

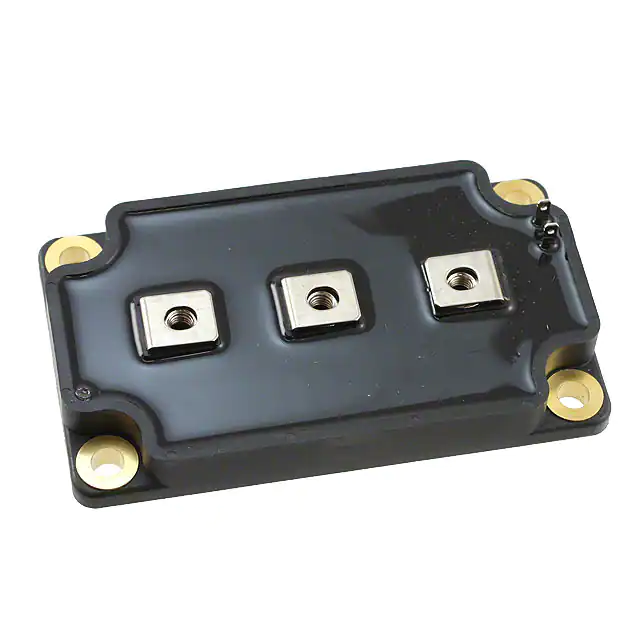

APTM20DAM05GMOSFET N-CH 200V 317A SP6 |
2606 | 206.80 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 317A (Tc) | 10V | 6mOhm @ 158.5A, 10V | 5V @ 10mA | 448 nC @ 10 V | ±30V | 27400 pF @ 25 V | - | 1136W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM20DAM04GMOSFET N-CH 200V 372A SP6 |
2330 | 228.35 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 372A (Tc) | 10V | 5mOhm @ 186A, 10V | 5V @ 10mA | 560 nC @ 10 V | ±30V | 28900 pF @ 25 V | - | 1250W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM20SKM04GMOSFET N-CH 200V 372A SP6 |
3834 | 228.35 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 372A (Tc) | 10V | 5mOhm @ 186A, 10V | 5V @ 10mA | 560 nC @ 10 V | ±30V | 28900 pF @ 25 V | - | 1250W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM100DAM90GMOSFET N-CH 1000V 78A SP6 |
2178 | 232.28 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 78A (Tc) | 10V | 105mOhm @ 39A, 10V | 5V @ 10mA | 744 nC @ 10 V | ±30V | 20700 pF @ 25 V | - | 1250W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM50DAM17GMOSFET N-CH 500V 180A SP6 |
3389 | 232.30 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 180A (Tc) | 10V | 20mOhm @ 90A, 10V | 5V @ 10mA | 560 nC @ 10 V | ±30V | 28000 pF @ 25 V | - | 1250W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM50SKM17GMOSFET N-CH 500V 180A SP6 |
2412 | 232.30 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 180A (Tc) | 10V | 20mOhm @ 90A, 10V | 5V @ 10mA | 560 nC @ 10 V | ±30V | 28000 pF @ 25 V | - | 1250W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM10DAM02GMOSFET N-CH 100V 495A SP6 |
3891 | 236.59 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 495A (Tc) | 10V | 2.5mOhm @ 200A, 10V | 4V @ 10mA | 1360 nC @ 10 V | ±30V | 40000 pF @ 25 V | - | 1250W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM10SKM02GMOSFET N-CH 100V 495A SP6 |
2219 | 236.59 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 495A (Tc) | 10V | 2.5mOhm @ 200A, 10V | 4V @ 10mA | 1360 nC @ 10 V | ±30V | 40000 pF @ 25 V | - | 1250W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM20UM04SAGMOSFET N-CH 200V 417A SP6 |
3422 | 287.63 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 417A (Tc) | 10V | 5mOhm @ 208.5A, 10V | 5V @ 10mA | 560 nC @ 10 V | ±30V | 28800 pF @ 25 V | - | 1560W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM10UM02FAGMOSFET N-CH 100V 570A SP6 |
2454 | 305.53 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 570A (Tc) | 10V | 2.5mOhm @ 200A, 10V | 4V @ 10mA | 1360 nC @ 10 V | ±30V | 40000 pF @ 25 V | - | 1660W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM50UM13SAGMOSFET N-CH 500V 335A SP6 |
2004 | 331.10 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 335A (Tc) | 10V | 15mOhm @ 167.5A, 10V | 5V @ 20mA | 800 nC @ 10 V | ±30V | 42200 pF @ 25 V | - | 3290W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APTM100UM65DAGMOSFET N-CH 1000V 145A SP6 |
2658 | 331.53 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 145A (Tc) | 10V | 78mOhm @ 72.5A, 10V | 5V @ 20mA | 1068 nC @ 10 V | ±30V | 28500 pF @ 25 V | - | 3250W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|

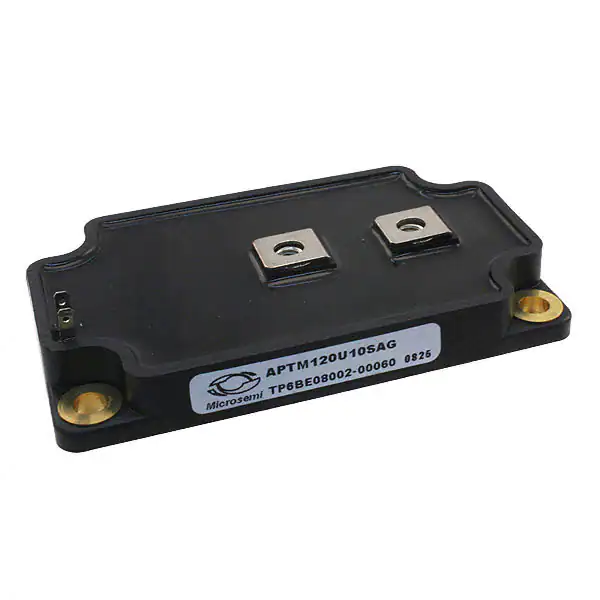

APTM120U10SAGMOSFET N-CH 1200V 116A SP6 |
3279 | 337.48 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 116A (Tc) | 10V | 120mOhm @ 58A, 10V | 5V @ 20mA | 1100 nC @ 10 V | ±30V | 28900 pF @ 25 V | - | 3290W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|

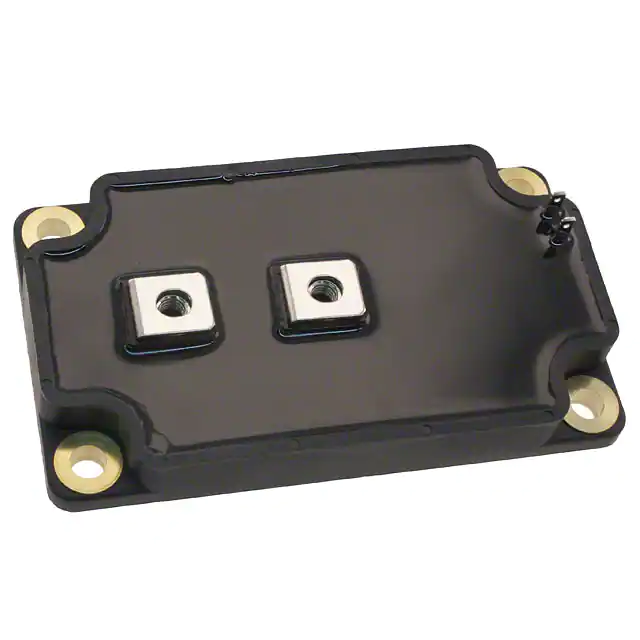

APTM100UM65SAGMOSFET N-CH 1000V 145A SP6 |
2421 | 349.32 |
ДобавитьРасследования |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 145A (Tc) | 10V | 78mOhm @ 72.5A, 10V | 5V @ 20mA | 1068 nC @ 10 V | ±30V | 28500 pF @ 25 V | - | 3250W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|

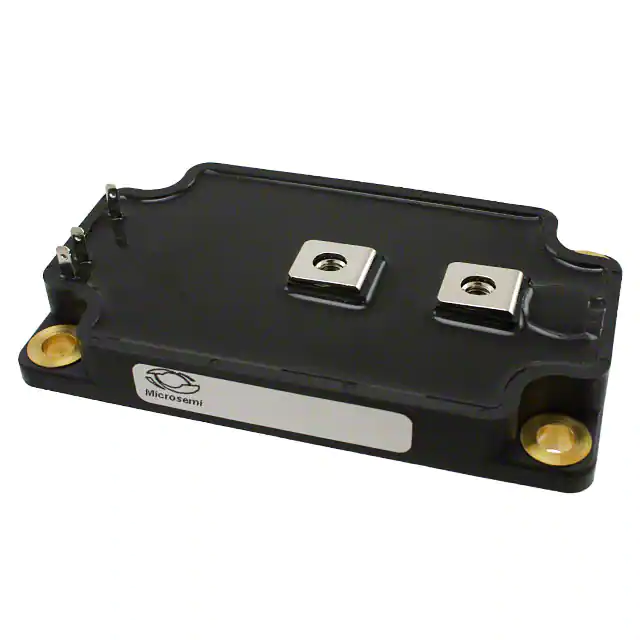

APTM20UM03FAGMOSFET N-CH 200V 580A SP6 |
2267 | 357.75 |
ДобавитьРасследования |
Bulk | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 580A (Tc) | 10V | 3.6mOhm @ 290A, 10V | 5V @ 15mA | 840 nC @ 10 V | ±30V | 43300 pF @ 25 V | - | 2270W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
Запрос котировок
