Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |

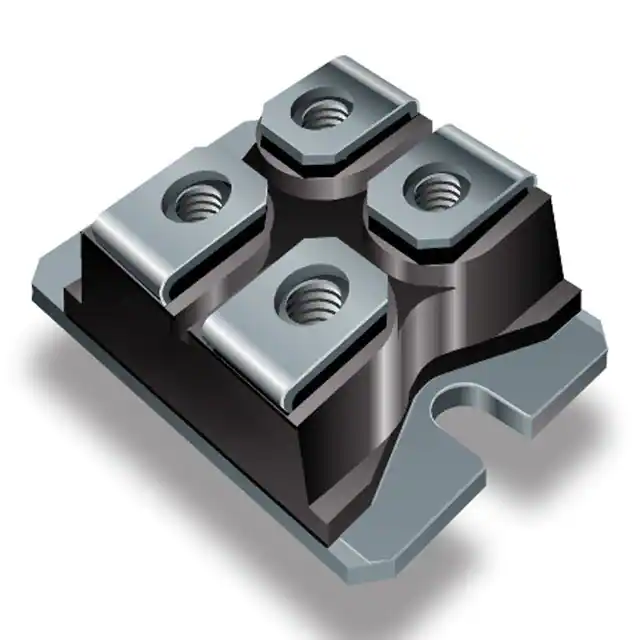

IXXN110N65B4H1IGBT MOD 650V 215A 750W SOT227B |
3089 | 30.99 |
ДобавитьРасследования |
Tube | XPT™, GenX4™ | Active | PT | Single | 650 V | 215 A | 750 W | 2.1V @ 15V, 110A | 50 µA | 3.65 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | |
Таблицы данных |

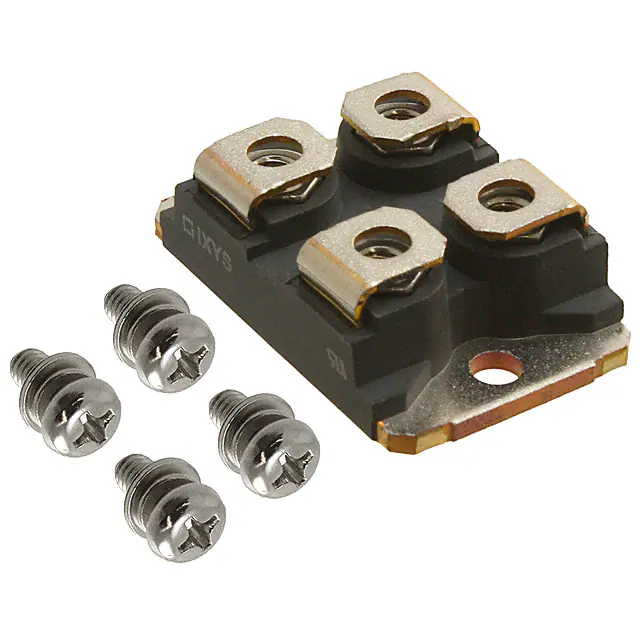

IXDN75N120IGBT MOD 1200V 150A 660W SOT227B |
330 | 35.89 |
ДобавитьРасследования |
Tube | - | Active | NPT | Single | 1200 V | 150 A | 660 W | 2.7V @ 15V, 75A | 4 mA | 5.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
Таблицы данных |
VS-GT180DA120UIGBT MOD 1200V 281A 1087W SOT227 |
747 | 47.59 |
ДобавитьРасследования |
Tube | HEXFRED® | Active | Trench Field Stop | Single | 1200 V | 281 A | 1087 W | 2.05V @ 15V, 100A | 100 µA | 9.35 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
Таблицы данных |

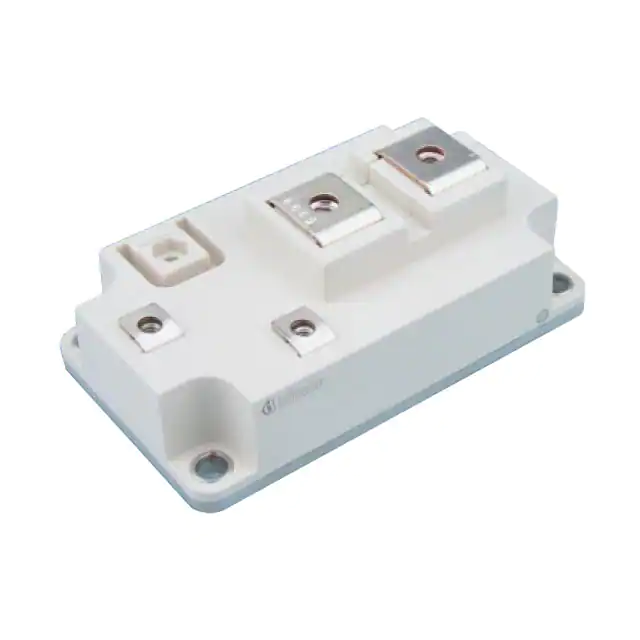

FZ800R12KE3HOSA1IGBT MOD 1200V 800A 3550W |
3175 | 226.47 |
ДобавитьРасследования |
Tray | C | Last Time Buy | Trench Field Stop | Single | 1200 V | 800 A | 3550 W | 2.15V @ 15V, 800A | 5 mA | 56 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | |
Таблицы данных |

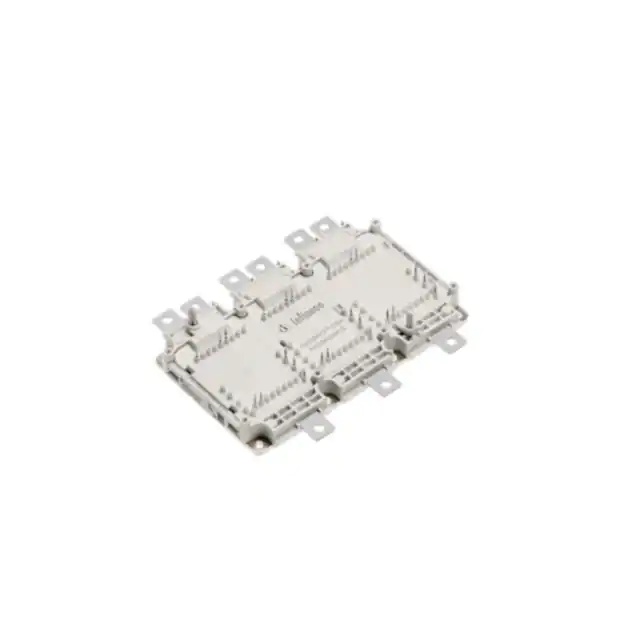

FS820R08A6P2BBPSA1IGBT MODULE PACK DRV HYBRIDD-1 |
2978 | 682.50 |
ДобавитьРасследования |
Tray | HybridPACK™ | Active | Trench Field Stop | Three Phase Inverter | 750 V | 450 A | 714 W | 1.35V @ 15V, 450A | 1 mA | 80 nF @ 50 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
Таблицы данных |
FF400R12KE3HOSA1IGBT MOD 1200V 580A 2000W |
3883 | 226.47 |
ДобавитьРасследования |
Tray | C | Active | Trench Field Stop | Half Bridge | 1200 V | 580 A | 2000 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | |
Таблицы данных |
APT100GT120JU2IGBT MOD 1200V 140A 480W SOT227 |
164 | 38.70 |
ДобавитьРасследования |
Bulk | - | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 5 mA | 7.2 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | |
Таблицы данных |

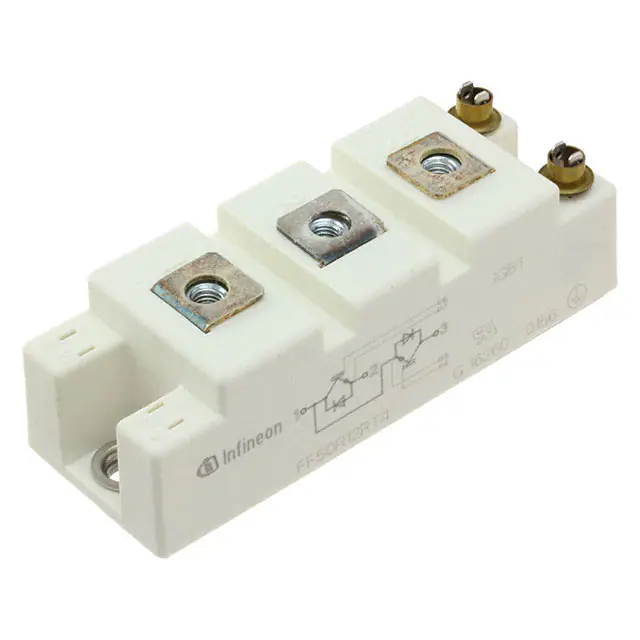

FF50R12RT4HOSA1IGBT MOD 1200V 50A 285W |
157 | 61.28 |
ДобавитьРасследования |
Tray | - | Active | Trench Field Stop | Half Bridge | 1200 V | 50 A | 285 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
Таблицы данных |
FF200R06KE3HOSA1IGBT MOD 600V 260A 680W |
2882 | 119.71 |
ДобавитьРасследования |
Tray | C | Active | Trench Field Stop | Half Bridge | 600 V | 260 A | 680 W | 1.9V @ 15V, 200A | 5 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
Таблицы данных |

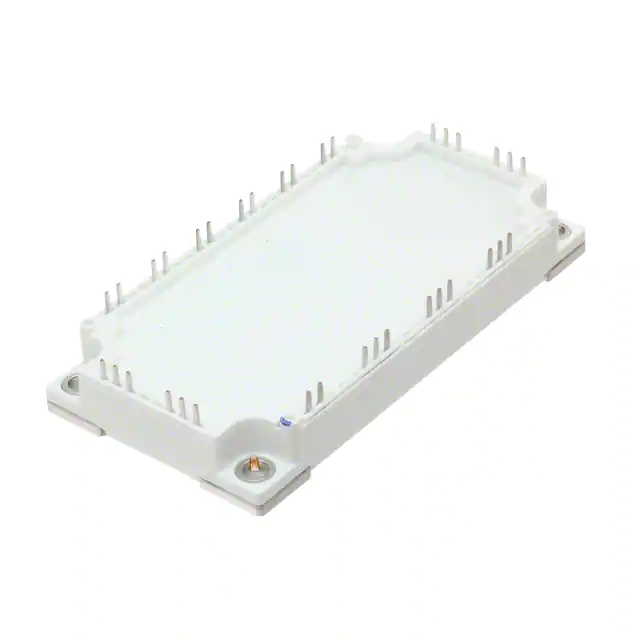

FS150R12KT4BOSA1IGBT MOD 1200V 150A 750W |
3892 | 249.16 |
ДобавитьРасследования |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | 750 W | 2.1V @ 15V, 150A | 1 mA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
Таблицы данных |

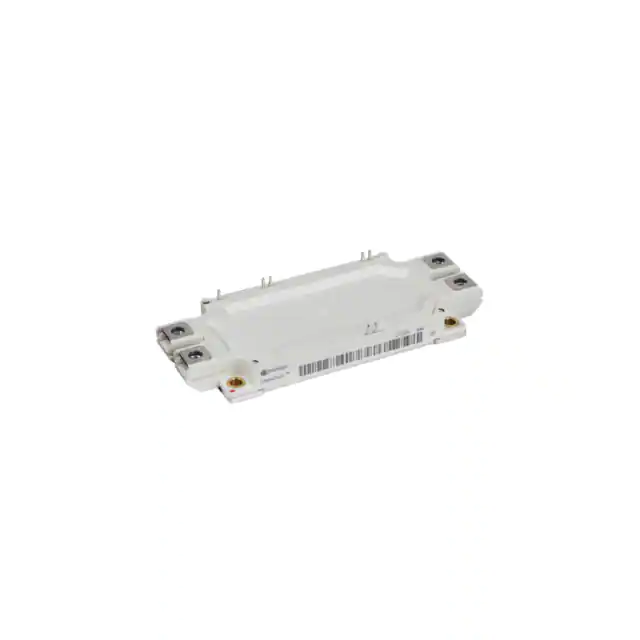

FF225R12ME4BOSA1IGBT MOD 1200V 320A 1050W |
3928 | 150.38 |
ДобавитьРасследования |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 1200 V | 320 A | 1050 W | 2.15V @ 15V, 225A | 3 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |
Таблицы данных |

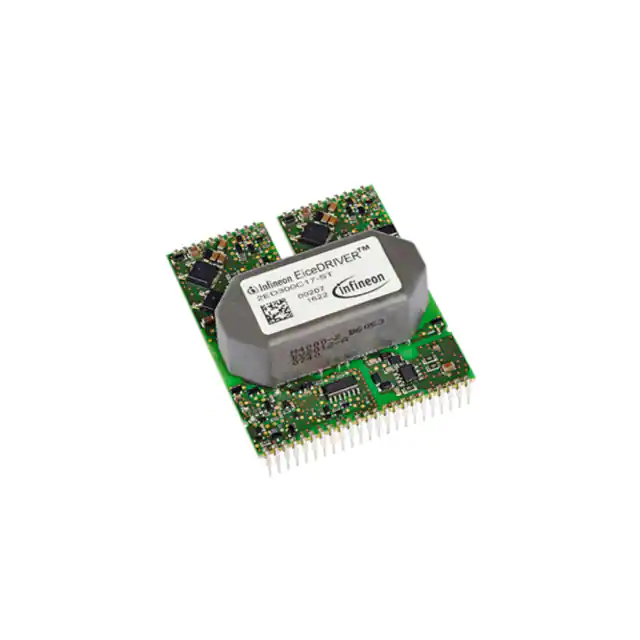

2ED300C17SROHSBPSA1IGBT MODULE 1700V 30A |
2771 | 193.22 |
ДобавитьРасследования |
Tray | EiceDriver™ | Active | - | Half Bridge | 1700 V | - | - | - | - | - | Standard | No | -25°C ~ 85°C | Through Hole | |
Таблицы данных |
VS-GT100DA120UFIGBT MOD 1200V 187A 890W SOT227 |
116 | 42.71 |
ДобавитьРасследования |
Bulk | HEXFRED® | Active | Trench | Single | 1200 V | 187 A | 890 W | 2.55V @ 15V, 100A | 100 µA | 6.15 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
Таблицы данных |
APT45GP120JDQ2IGBT MOD 1200V 75A 329W ISOTOP |
128 | 45.80 |
ДобавитьРасследования |
Tube | POWER MOS 7® | Active | PT | Single | 1200 V | 75 A | 329 W | 3.9V @ 15V, 45A | 750 µA | 4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | |
Таблицы данных |

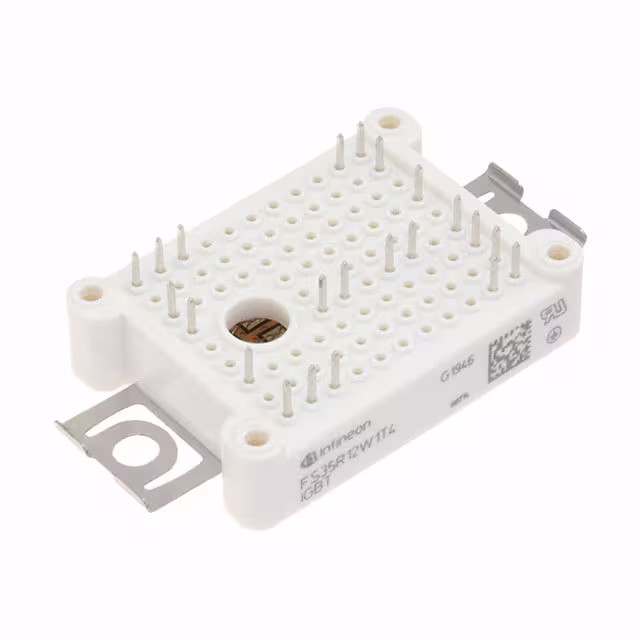

FS35R12W1T4BOMA1IGBT MOD 1200V 65A 225W |
2754 | 45.82 |
ДобавитьРасследования |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 65 A | 225 W | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
Таблицы данных |

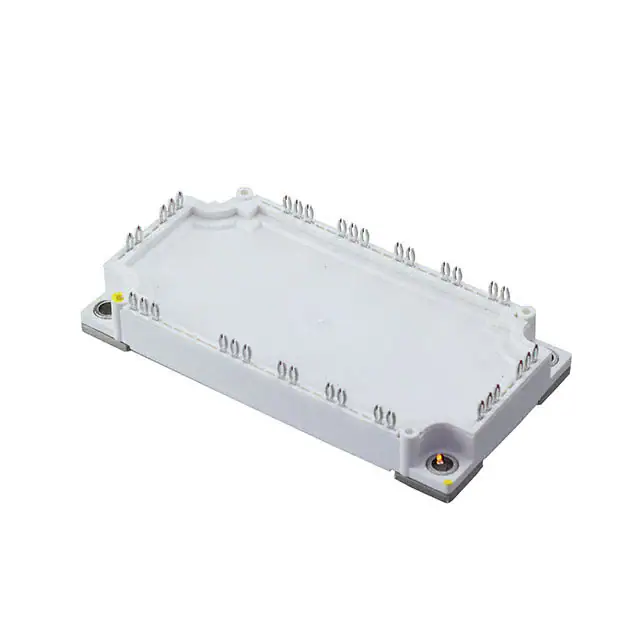

FP75R12KT4B11BOSA1IGBT MOD 1200V 75A 385W |
2865 | 191.42 |
ДобавитьРасследования |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 385 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
Таблицы данных |

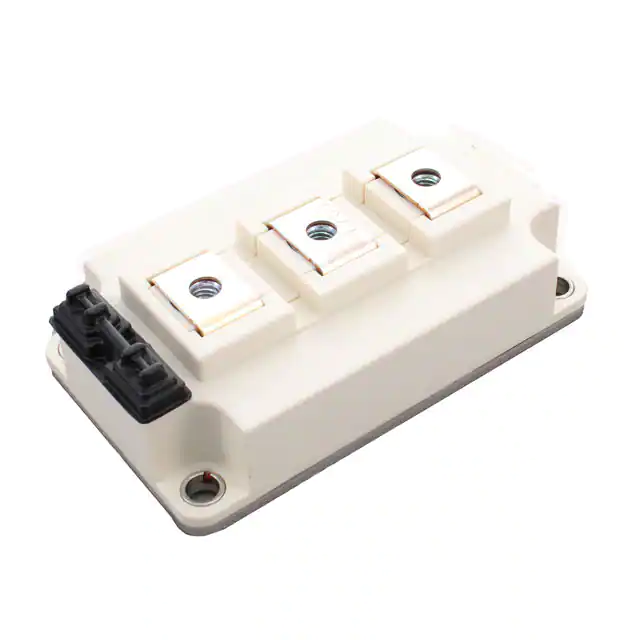

FD450R12KE4PHOSA1IGBT MODULE 1200V 450A AG62MM-1 |
2144 | 200.41 |
ДобавитьРасследования |
Tray | C | Active | Trench Field Stop | Single Chopper | 1200 V | 450 A | - | 2.15V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | |
Таблицы данных |

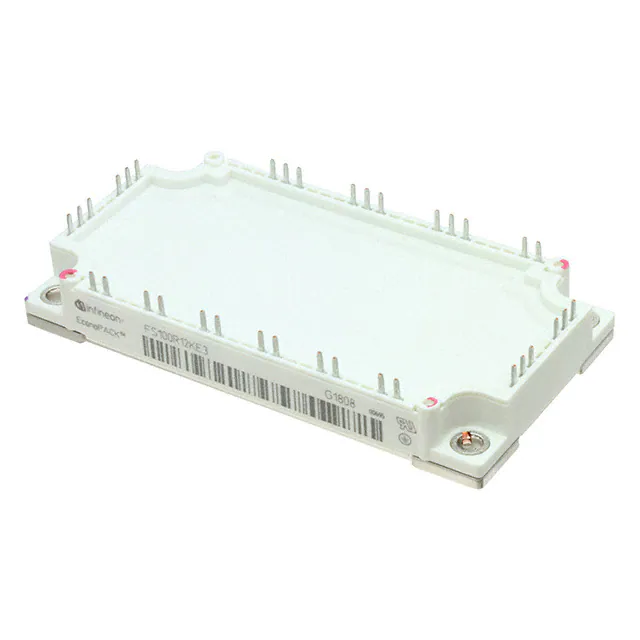

FS100R12KE3BOSA1IGBT MOD 1200V 140A 480W |
3636 | 206.34 |
ДобавитьРасследования |
Tray | - | Not For New Designs | NPT | Single | 1200 V | 140 A | 480 W | 2.15V @ 15V, 100A | 5 mA | 7.1 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | |
Таблицы данных |
FS450R12KE3BOSA1IGBT MOD 1200V 600A 2100W |
2031 | 881.96 |
ДобавитьРасследования |
Tray | - | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 600 A | 2100 W | 2.15V @ 15V, 450A | 5 mA | 32 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | |
Таблицы данных |
VS-GT80DA120UIGBT MOD 1200V 139A 658W SOT227 |
138 | 38.99 |
ДобавитьРасследования |
Bulk | HEXFRED® | Active | Trench | Single | 1200 V | 139 A | 658 W | 2.55V @ 15V, 80A | 100 µA | 4.4 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
