Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|

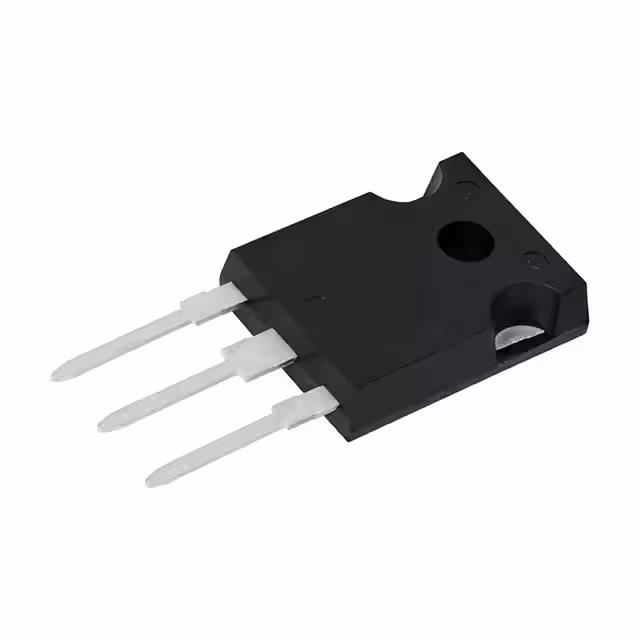

SIHG21N80AEF-GE3E SERIES POWER MOSFET WITH FAST |
3413 | 3.53 |
ДобавитьРасследования |
Bulk | EF | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 16.3A (Tc) | 10V | 250mOhm @ 8.5A, 10V | 4V @ 250µA | 71 nC @ 10 V | ±30V | 1511 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
SIHP35N60E-BE3N-CHANNEL 600V |
3831 | 6.34 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 32A (Tc) | 10V | 94mOhm @ 17A, 10V | 4V @ 250µA | 132 nC @ 10 V | ±30V | 2760 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|

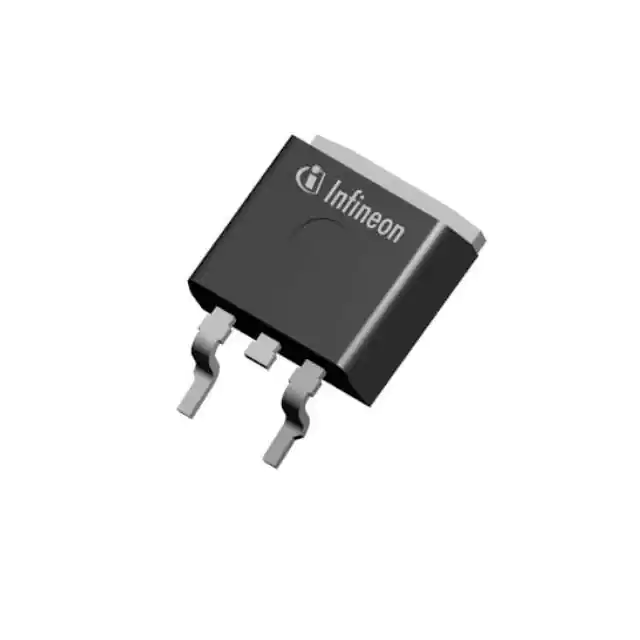

IPB720P15LMATMA1TRENCH >=100V PG-TO263-3 |
2918 | 6.53 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 150 V | 4.6A (Ta), 41A (Tc) | 4.5V, 10V | 72mOhm @ 37A, 10V | 2V @ 5.55mA | 224 nC @ 10 V | ±20V | 11000 pF @ 75 V | - | 3.8W (Ta), 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
NVMFS5C410NLWFAFT1GMOSFET N-CH 40V 50A/330A 5DFN |
3096 | 4.62 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Ta), 330A (Tc) | 4.5V, 10V | 0.82mOhm @ 50A, 10V | 2V @ 250µA | 143 nC @ 10 V | ±20V | 8862 pF @ 25 V | - | 3.8W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
FCPF380N60EMOSFET N-CH 600V 10.2A TO220F |
1761 | 2.44 |
ДобавитьРасследования |
Bulk,Tube | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.2A (Tc) | 10V | 380mOhm @ 5A, 10V | 3.5V @ 250µA | 45 nC @ 10 V | ±20V | 1770 pF @ 25 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
| |
|
IXFA22N65X2-TRLMOSFET N-CH 650V 22A TO263 |
2726 | 5.76 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 145mOhm @ 11A, 10V | 5V @ 1.5mA | 37 nC @ 10 V | ±30V | 2190 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AOW2502MOSFET N-CH 150V 16A/106A TO262 |
2341 | 3.62 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 16A (Ta), 106A (Tc) | 10V | 10.7mOhm @ 20A, 10V | 5.1V @ 250µA | 60 nC @ 10 V | ±20V | 3010 pF @ 75 V | - | 6.2W (Ta), 277W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IPB65R110CFD7ATMA1HIGH POWER_NEW |
3529 | 6.60 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 110mOhm @ 9.7A, 10V | 4.5V @ 480µA | 41 nC @ 10 V | ±20V | 1942 pF @ 400 V | - | 114W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|

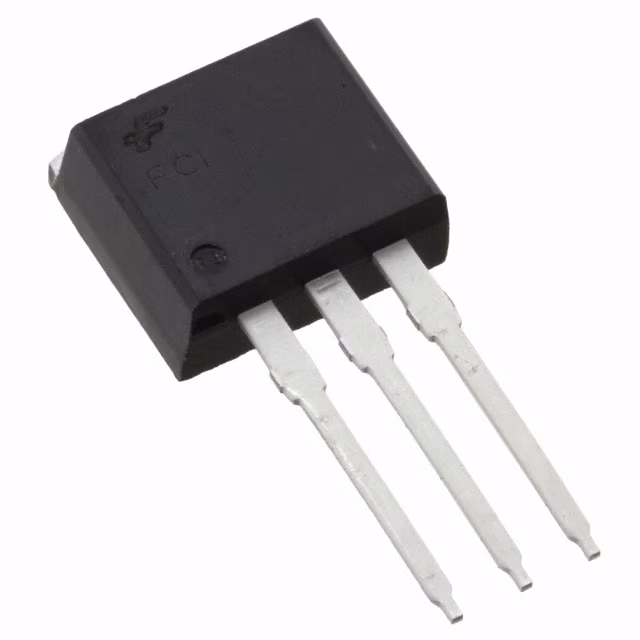

FCI7N60MOSFET N-CH 600V 7A I2PAK |
2622 | 2.46 |
ДобавитьРасследования |
Tube | SuperFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 5V @ 250µA | 30 nC @ 10 V | ±30V | 920 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXTP10P15TMOSFET P-CH 150V 10A TO220AB |
3030 | 3.65 |
ДобавитьРасследования |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 150 V | 10A (Tc) | 10V | 350mOhm @ 5A, 10V | 4.5V @ 250µA | 36 nC @ 10 V | ±15V | 2210 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
NVMFS5C410NAFT1GMOSFET N-CH 40V 46A/300A 5DFN |
2524 | 4.67 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 46A (Ta), 300A (Tc) | 10V | 0.92mOhm @ 50A, 10V | 3.5V @ 250µA | 86 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 3.9W (Ta), 166W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IPT063N15N5ATMA1TRENCH >=100V PG-HSOF-8 |
2754 | 6.64 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 16.2A (Ta), 122A (Tc) | 8V, 10V | 6.3mOhm @ 50A, 10V | 4.6V @ 153µA | 59 nC @ 10 V | ±20V | 4550 pF @ 75 V | - | 3.8W (Ta), 214W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
| |
|
FCB099N65S3MOSFET N-CH 650V 30A D2PAK-3 |
2197 | 3.96 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 99mOhm @ 15A, 10V | 4.5V @ 740µA | 61 nC @ 10 V | ±30V | 2480 pF @ 400 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
NVMTS4D3N15MCSINGLE N-CHANNEL POWER MOSFET 00 |
2723 | 6.71 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 21A (Ta), 165A (Tc) | 10V | 4.45mOhm @ 95A, 10V | 4.5V @ 521µA | 79 nC @ 10 V | ±20V | 6514 pF @ 75 V | - | 5W (Ta), 292W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
NTB5D0N15MCMOSFET - N-CHANNEL SHIELDED GATE |
3026 | 5.88 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 18A (Ta), 139A (Tc) | 10V | 5mOhm @ 97A, 10V | 4.5V @ 532µA | 75 nC @ 10 V | ±20V | 6300 pF @ 75 V | - | 3.8W (Ta), 214W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
RJK1003DPN-A0#T2MOSFET N-CH 100V 50A TO220ABA |
2959 | 3.70 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 50A (Ta) | 10V | 11mOhm @ 25A, 10V | 4V @ 1mA | 59 nC @ 10 V | ±20V | 4150 pF @ 10 V | - | 125W (Ta) | 150°C | Through Hole |
|
Таблицы данных |
|
FDB86563-F085MOSFET N-CH 60V 110A D2PAK |
3716 | 2.52 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101, PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 110A (Tc) | 10V | 1.8mOhm @ 80A, 10V | 4V @ 250µA | 163 nC @ 10 V | ±20V | 10100 pF @ 30 V | - | 333W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
| |
|
NVBLS1D1N08HMOSFET N-CH 80V 41A/351A 8HPSOF |
3705 | 6.90 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 41A (Ta), 351A (Tc) | 10V | 1.05mOhm @ 50A, 10V | 4V @ 650µA | 166 nC @ 10 V | ±20V | 11200 pF @ 40 V | - | 4.2W (Ta), 311W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
TSM019NH04CR RLG40V, 100A, SINGLE N-CHANNEL POWE |
3378 | 6.60 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | PerFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 35A (Ta), 100A (Tc) | 7V, 10V | 1.9mOhm @ 50A, 10V | 3.6V @ 250µA | 89 nC @ 10 V | ±20V | 6029 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
FCP400N80ZMOSFET N-CH 800V 14A TO220-3 |
3775 | 3.79 |
ДобавитьРасследования |
Tube | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 400mOhm @ 5.5A, 10V | 4.5V @ 1.1mA | 56 nC @ 10 V | ±20V | 2350 pF @ 1000 V | - | 195W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
Запрос котировок
