Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
STF2LN60K3MOSFET N CH 600V 2A TO-220FP |
898 | 0.00 |
ДобавитьРасследования |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 2A (Tc) | 10V | 4.5Ohm @ 1A, 10V | 4.5V @ 50µA | 12 nC @ 10 V | ±30V | 235 pF @ 50 V | - | 20W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
RJK0651DPB-00#J5MOSFET N-CH 60V 25A LFPAK |
3241 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 25A (Ta) | 4.5V, 10V | 14mOhm @ 12.5A, 10V | - | 15 nC @ 4.5 V | ±20V | 2030 pF @ 10 V | - | 45W (Tc) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
DMPH6050SK3Q-13MOSFET P-CH 60V 7.2A/23.6A TO252 |
2753 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 7.2A (Ta), 23.6A (Tc) | 4.5V, 10V | 50mOhm @ 7A, 10V | 3V @ 250µA | 25 nC @ 10 V | ±20V | 1377 pF @ 30 V | - | 1.9W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STP190N55LF3MOSFET N-CH 55V 120A TO220-3 |
2040 | 0.00 |
ДобавитьРасследования |
Tube | STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 120A (Tc) | 5V, 10V | 3.7mOhm @ 30A, 10V | 2.5V @ 250µA | 80 nC @ 5 V | ±18V | 6200 pF @ 25 V | - | 312W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
STP12NK80ZMOSFET N-CH 800V 10.5A TO220AB |
3941 | 0.00 |
ДобавитьРасследования |
Tube | SuperMESH™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 800 V | 10.5A (Tc) | 10V | 750mOhm @ 5.25A, 10V | 4.5V @ 100µA | 87 nC @ 10 V | ±30V | 2620 pF @ 25 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
HTNFET-TMOSFET N-CH 55V 4POWER TAB |
3587 | 0.00 |
ДобавитьРасследования |
Bulk | HTMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | - | 5V | 400mOhm @ 100mA, 5V | 2.4V @ 100µA | 4.3 nC @ 5 V | 10V | 290 pF @ 28 V | - | 50W (Tj) | -55°C ~ 225°C (TJ) | Through Hole |
|
Таблицы данных |
|
FDP030N06MOSFET N-CH 60V 120A TO220-3 |
2109 | 0.00 |
ДобавитьРасследования |
Tube | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 3.2mOhm @ 75A, 10V | 4.5V @ 250µA | 151 nC @ 10 V | ±20V | 9815 pF @ 25 V | - | 231W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
STF15N60M2-EPMOSFET N-CH 600V 11A TO220FP |
3786 | 0.00 |
ДобавитьРасследования |
Tube | MDmesh™ M2-EP | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 378mOhm @ 5.5A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±25V | 590 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
RJK0354DSP-00#J0MOSFET N-CH 30V 16A 8SOP |
2604 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 7mOhm @ 8A, 10V | - | 12 nC @ 4.5 V | ±20V | 1740 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STW15N95K5MOSFET N-CH 950V 12A TO247 |
3659 | 0.00 |
ДобавитьРасследования |
Tube | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 12A (Tc) | 10V | 500mOhm @ 6A, 10V | 5V @ 100µA | 40 nC @ 10 V | ±30V | 900 pF @ 100 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STF28N60DM2MOSFET N-CH 600V 21A TO220FP |
2485 | 0.00 |
ДобавитьРасследования |
Tube | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 160mOhm @ 10.5A, 10V | 5V @ 250µA | 34 nC @ 10 V | ±25V | 1500 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
MCH3374-TL-EMOSFET P-CH 12V 3A SC70FL/MCPH3 |
3447 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 3A (Ta) | 1.8V, 4V | 70mOhm @ 1.5A, 4.5V | - | 5.6 nC @ 4.5 V | ±8V | 405 pF @ 6 V | - | 1W (Ta) | - | Surface Mount |
|
Таблицы данных |
|
IRFPS3810PBFMOSFET N-CH 100V 170A SUPER247 |
3781 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 170A (Tc) | 10V | 9mOhm @ 100A, 10V | 5V @ 250µA | 390 nC @ 10 V | ±30V | 6790 pF @ 25 V | - | 580W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRLI2910PBFMOSFET N-CH 100V 31A TO220AB FP |
2563 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 31A (Tc) | 4V, 10V | 26mOhm @ 16A, 10V | 2V @ 250µA | 140 nC @ 5 V | ±16V | 3700 pF @ 25 V | - | 63W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
STP10NK70ZFPMOSFET N-CH 700V 8.6A TO220FP |
3471 | 0.00 |
ДобавитьРасследования |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 8.6A (Tc) | 10V | 850mOhm @ 4.5A, 10V | 4.5V @ 100µA | 90 nC @ 10 V | ±30V | 2000 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|

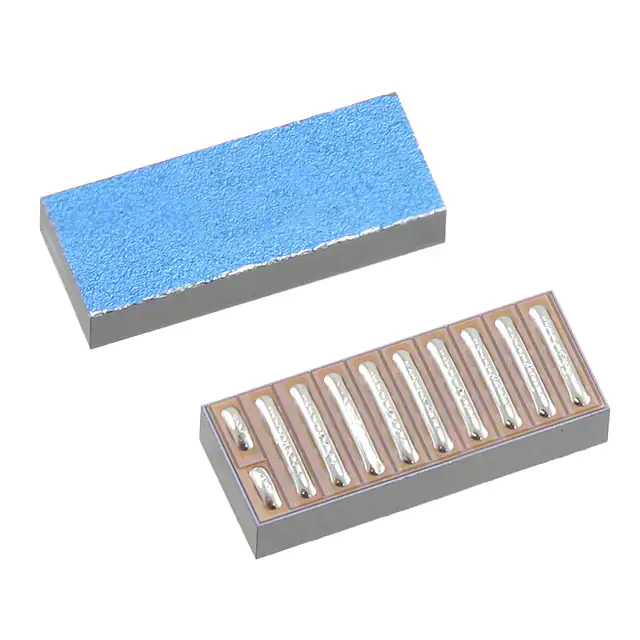

EPC2001GANFET N-CH 100V 25A DIE OUTLINE |
3667 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | eGaN® | Discontinued at Mosen | N-Channel | GaNFET (Gallium Nitride) | 100 V | 25A (Ta) | 5V | 7mOhm @ 25A, 5V | 2.5V @ 5mA | 10 nC @ 5 V | +6V, -5V | 950 pF @ 50 V | - | - | -40°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
EPC2007GANFET N-CH 100V 6A DIE OUTLINE |
3924 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | eGaN® | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 100 V | 6A (Ta) | 5V | 30mOhm @ 6A, 5V | 2.5V @ 1.2mA | 2.8 nC @ 5 V | +6V, -5V | 205 pF @ 50 V | - | - | -40°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
EPC2010GANFET N-CH 200V 12A DIE |
2617 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | eGaN® | Discontinued at Mosen | N-Channel | GaNFET (Gallium Nitride) | 200 V | 12A (Ta) | 5V | 25mOhm @ 6A, 5V | 2.5V @ 3mA | 7.5 nC @ 5 V | +6V, -4V | 540 pF @ 100 V | - | - | -40°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
EPC2012GANFET N-CH 200V 3A DIE |
3312 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | eGaN® | Discontinued at Mosen | N-Channel | GaNFET (Gallium Nitride) | 200 V | 3A (Ta) | 5V | 100mOhm @ 3A, 5V | 2.5V @ 1mA | 1.8 nC @ 5 V | +6V, -5V | 145 pF @ 100 V | - | - | -40°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
EPC2014GANFET N-CH 40V 10A DIE OUTLINE |
2712 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | eGaN® | Discontinued at Mosen | N-Channel | GaNFET (Gallium Nitride) | 40 V | 10A (Ta) | 5V | 16mOhm @ 5A, 5V | 2.5V @ 2mA | 2.8 nC @ 5 V | +6V, -5V | 325 pF @ 20 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
Запрос котировок
