Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|

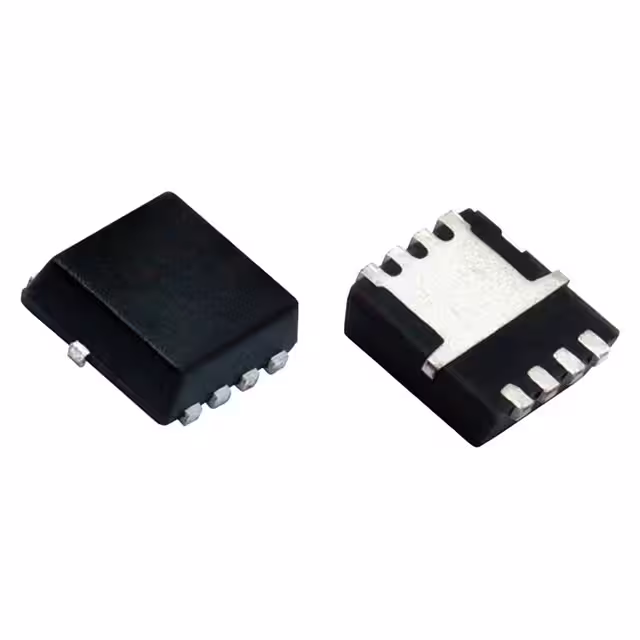

SIS4608DN-T1-GE3N-CHANNEL 60 V (D-S) MOSFET POWE |
3473 | 0.90 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TrenchFET® Gen IV | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 12.4A (Ta), 35.7A (Tc) | 7.5V, 10V | 11.8mOhm @ 10A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 740 pF @ 30 V | - | 3.3W (Ta), 27.1W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
SI3457CDV-T1-BE3P-CHANNEL 30-V (D-S) MOSFET |
6000 | 0.56 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.1A (Ta), 5.1A (Tc) | 4.5V, 10V | 74mOhm @ 4.1A, 10V | 3V @ 250µA | 15 nC @ 10 V | ±20V | 450 pF @ 15 V | - | 2W (Ta), 3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
.jpg)
|
SI2315BDS-T1-BE3P-CHANNEL 1.8-V (G-S) MOSFET |
3000 | 0.56 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 3A (Ta) | 1.8V, 4.5V | 50mOhm @ 3.85A, 4.5V | 900mV @ 250µA | 15 nC @ 4.5 V | ±8V | 715 pF @ 6 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
| |
|
RM40P40LDMOSFET P-CHANNEL 40V 40A TO252-2 |
3038 | 0.26 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 10V | 14mOhm @ 12A, 10V | 3V @ 250µA | - | ±20V | 2960 pF @ 20 V | - | 80W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
| |
|
RM20N150LDMOSFET N-CH 150V 20A TO252-2 |
2771 | 0.26 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 20A (Ta) | 10V | 65mOhm @ 10A, 10V | 4.5V @ 250µA | - | ±20V | 600 pF @ 75 V | - | 68W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
| |
|
RM80N20DNMOSFET N-CHANNEL 20V 80A 8PPAK |
2742 | 0.26 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 80A (Tc) | 1.8V, 4.5V | 3.5mOhm @ 15A, 4.5V | 1V @ 250µA | - | ±12V | 5500 pF @ 10 V | - | 66W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
| |
|
RM16P60LDMOSFET P-CHANNEL 60V 16A TO252-2 |
3395 | 0.26 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 16A (Tc) | 4.5V, 10V | 48mOhm @ 8A, 10V | 2.2V @ 25µA | - | ±20V | 1810 pF @ 30 V | - | 25W (Tc) | -50°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
MCH3427-TL-EMOSFET N-CH 20V 4A 3SMD |
2749 | 0.15 |
ДобавитьРасследования |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | - | 52mOhm @ 2A, 4V | 1.3V @ 1mA | 6 nC @ 4 V | ±12V | 400 pF @ 10 V | - | 1W (Ta) | 150°C | Surface Mount |
|
Таблицы данных |
|
BUK7Y25-40B,115TRANSISTOR >30MHZ |
3560 | 0.00 |
ДобавитьРасследования |
Bulk | Automotive, AEC-Q101, TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 35.3A (Tc) | 10V | 25mOhm @ 20A, 10V | 4V @ 1mA | 12.1 nC @ 10 V | ±20V | 693 pF @ 25 V | - | 59.4W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
DMP3028LK3Q-13MOSFET P-CHANNEL 30V 27A TO252 |
3553 | 0.68 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 27A (Tc) | 4.5V, 10V | 25mOhm @ 7A, 10V | 2.4V @ 250µA | 22 nC @ 10 V | ±20V | 1241 pF @ 15 V | - | 2.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
| |
|
PJQ2405-AU_R1_000A120V P-CHANNEL ENHANCEMENT MODE M |
3086 | 0.70 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.2A | 1.8V, 4.5V | 32mOhm @ 7.2A, 4.5V | 900mV @ 250µA | 18.9 nC @ 4.5 V | ±8V | 1785 pF @ 10 V | - | 2.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
| |
|
RM13P40S8MOSFET P-CHANNEL 40V 13A 8SOP |
2769 | 0.27 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 13A (Ta) | 10V | 15mOhm @ 12A, 10V | 2.5V @ 250µA | - | ±20V | 2800 pF @ 20 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
| |
|
RM35N30DFMOSFET N-CHANNEL 30V 35A 8DFN |
2589 | 0.27 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 35A (Tc) | 4.5V, 10V | 7mOhm @ 12A, 10V | 3V @ 250µA | - | ±20V | 2330 pF @ 15 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
| |
|
PJQ4441P-AU_R2_000A140V P-CHANNEL ENHANCEMENT MODE M |
2637 | 0.74 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 8.5A (Ta), 44A (Tc) | 4.5V, 10V | 17mOhm @ 10A, 10V | 2.5V @ 250µA | 19 nC @ 4.5 V | ±20V | 2030 pF @ 25 V | - | 2W (Ta), 59.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
| |
|
PJD16P04_L2_0000140V P-CHANNEL ENHANCEMENT MODE M |
3420 | 0.70 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 5A (Ta), 16A (Tc) | 4.5V, 10V | 45mOhm @ 10A, 10V | 2.5V @ 250µA | 8.3 nC @ 4.5 V | ±20V | 929 pF @ 15 V | - | 2W (Ta), 22W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
| |
|
PJL9434A_R2_0000160V N-CHANNEL ENHANCEMENT MODE M |
3186 | 0.71 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 10A (Ta) | 4.5V, 10V | 12mOhm @ 10A, 10V | 2.5V @ 250µA | 39 nC @ 10 V | ±20V | 2256 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
| |
|
PJD85N03_L2_0000130V N-CHANNEL ENHANCEMENT MODE M |
3670 | 0.71 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 85A (Tc) | 4.5V, 10V | 3.8mOhm @ 20A, 10V | 2.5V @ 250µA | 23 nC @ 4.5 V | ±20V | 2436 pF @ 25 V | - | 2W (Ta), 58W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
RSR010N10TLMOSFET N-CH 100V 1A TSMT3 |
2234 | 0.71 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1A (Ta) | 4V, 10V | 520mOhm @ 1A, 10V | 2.5V @ 1mA | 3.5 nC @ 5 V | ±20V | 140 pF @ 25 V | - | 540mW (Ta) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
SSM6K810R,LXHFAUTO AEC-Q SS MOS N-CH LOGIC-LEV |
2793 | 0.72 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.5A (Ta) | 4.5V, 10V | 69mOhm @ 2A, 10V | 2.5V @ 100µA | 3.2 nC @ 4.5 V | ±20V | 430 pF @ 15 V | - | 1.5W (Ta) | 175°C | Surface Mount |
|
Таблицы данных |
|
SSM6K809R,LXHFAUTO AEC-Q SS MOS N-CH LOGIC-LEV |
2954 | 0.72 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6A (Ta) | 4V, 10V | 36mOhm @ 5A, 10V | 2.5V @ 100µA | 9.3 nC @ 10 V | ±20V | 550 pF @ 10 V | - | 1.5W (Ta) | 175°C | Surface Mount |
