Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
IPA80R750P7XKSA1MOSFET N-CHANNEL 800V 7A TO220 |
2311 | 1.00 |
ДобавитьРасследования |
Bulk,Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | 750mOhm @ 2.7A, 10V | 3.5V @ 140µA | 17 nC @ 10 V | ±20V | 460 pF @ 500 V | - | 27W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STP3NK90ZMOSFET N-CH 900V 3A TO220AB |
3924 | 2.19 |
ДобавитьРасследования |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 3A (Tc) | 10V | 4.8Ohm @ 1.5A, 10V | 4.5V @ 50µA | 22.7 nC @ 10 V | ±30V | 590 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IPP083N10N5AKSA1MOSFET N-CH 100V 73A TO220-3 |
2685 | 1.00 |
ДобавитьРасследования |
Bulk,Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 73A (Tc) | 6V, 10V | 8.3mOhm @ 73A, 10V | 3.8V @ 49µA | 37 nC @ 10 V | ±20V | 2730 pF @ 50 V | - | 100W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IPB65R190C7ATMA2MOSFET N-CH 650V 13A TO263-3 |
3656 | 1.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 13A (Tc) | 10V | 190mOhm @ 5.7A, 10V | 4V @ 290µA | 23 nC @ 10 V | ±20V | 1150 pF @ 400 V | - | 72W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFBF20SPBFMOSFET N-CH 900V 1.7A D2PAK |
2223 | 2.20 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 1.7A (Tc) | 10V | 8Ohm @ 1A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 490 pF @ 25 V | - | 3.1W (Ta), 54W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|

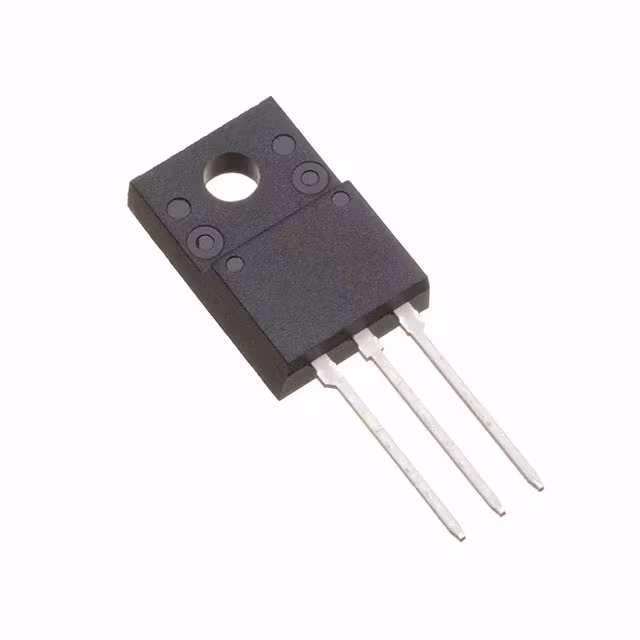

TK6R7A10PL,S4XX35 PB-F POWER MOSFET TRANSISTOR |
2149 | 1.60 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 56A (Tc) | 4.5V, 10V | 6.7mOhm @ 28A, 10V | 2.5V @ 500µA | 58 nC @ 10 V | ±20V | 3455 pF @ 50 V | - | 42W (Tc) | 175°C | Through Hole |
|
Таблицы данных |
|
IPA95R1K2P7XKSA1MOSFET N-CH 950V 6A TO220 |
2073 | 2.20 |
ДобавитьРасследования |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 6A (Tc) | 10V | 1.2Ohm @ 2.7A, 10V | 3.5V @ 140µA | 15 nC @ 10 V | ±20V | 478 pF @ 400 V | - | 27W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STL220N6F7MOSFET N-CH 60V 120A POWERFLAT |
3920 | 3.67 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | STripFET™ F7 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 1.4mOhm @ 20A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 6600 pF @ 25 V | - | 4.8W (Ta), 187W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
BSC010N04LSIATMA1MOSFET N-CH 40V 37A/100A TDSON |
3381 | 1.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 37A (Ta), 100A (Tc) | 4.5V, 10V | 1.05mOhm @ 50A, 10V | 2V @ 250µA | 87 nC @ 10 V | ±20V | 6200 pF @ 20 V | Schottky Diode (Body) | 2.5W (Ta), 139W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STP5N95K5MOSFET N-CH 950V 3.5A TO220 |
876 | 2.21 |
ДобавитьРасследования |
Tube | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 3.5A (Tc) | 10V | 2.5Ohm @ 1.5A, 10V | 5V @ 100µA | 12.5 nC @ 10 V | ±30V | 220 pF @ 100 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
BUK9606-75B,118MOSFET N-CH 75V 75A D2PAK |
3146 | 3.54 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101, TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tc) | 5V, 10V | 5.5mOhm @ 25A, 10V | 2V @ 1mA | 95 nC @ 5 V | ±15V | 11693 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STP30NF10MOSFET N-CH 100V 35A TO220AB |
3587 | 2.22 |
ДобавитьРасследования |
Tube | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 10V | 45mOhm @ 15A, 10V | 4V @ 250µA | 55 nC @ 10 V | ±20V | 1180 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
FDP3652MOSFET N-CH 100V 9A/61A TO220-3 |
2496 | 2.26 |
ДобавитьРасследования |
Tube | PowerTrench® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 9A (Ta), 61A (Tc) | 6V, 10V | 16mOhm @ 61A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±20V | 2880 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
STU7LN80K5MOSFET N-CH 800V 5A IPAK |
3719 | 2.27 |
ДобавитьРасследования |
Tube | MDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5A (Tc) | 10V | 1.15Ohm @ 2.5A, 10V | 5V @ 100µA | 12 nC @ 10 V | ±30V | 270 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
CSD18535KTTMOSFET N-CH 60V 200A DDPAK |
3105 | 3.63 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 200A (Ta) | 4.5V, 10V | 2mOhm @ 100A, 10V | 2.4V @ 250µA | 81 nC @ 10 V | ±20V | 6620 pF @ 30 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IPB120P04P4L03ATMA1MOSFET P-CH 40V 120A D2PAK |
2371 | 4.14 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 4.5V, 10V | 3.1mOhm @ 100A, 10V | 2.2V @ 340µA | 234 nC @ 10 V | ±16V | 15000 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IPB120P04P4L03ATMA2MOSFET P-CH 40V 120A TO263-3 |
2537 | 4.14 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS®-P2 | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 4.5V, 10V | 3.4mOhm @ 100A, 10V | 2.2V @ 340µA | 234 nC @ 10 V | +5V, -16V | 15000 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STP13N60M2MOSFET N-CH 600V 11A TO220 |
3574 | 2.28 |
ДобавитьРасследования |
Tube | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±25V | 580 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
PSMN8R7-80PS,127MOSFET N-CH 80V 90A TO220AB |
3884 | 2.29 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 90A (Tc) | 10V | 8.7mOhm @ 10A, 10V | 4V @ 1mA | 52 nC @ 10 V | ±20V | 3346 pF @ 40 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IPP040N06N3GXKSA1MOSFET N-CH 60V 90A TO220-3 |
3388 | 2.29 |
ДобавитьРасследования |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A (Tc) | 10V | 4mOhm @ 90A, 10V | 4V @ 90µA | 98 nC @ 10 V | ±20V | 11000 pF @ 30 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
