Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
UMW FDN335NSOT-23 MOSFETS ROHS |
3724 | 0.24 |
ДобавитьРасследования |
Tape & Reel (TR) | UMW | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.7A (Ta) | 2.5V, 4.5V | 70mOhm @ 1.7A, 4.5V | 1.5V @ 250µA | 3.5 nC @ 4.5 V | ±8V | 310 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IPN65R1K5CESMALL SIGNAL FIELD-EFFECT TRANSI |
3162 | 0.00 |
ДобавитьРасследования |
Bulk | CoolMOS™ CE | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 5.2A (Tc) | 10V | 1.5Ohm @ 1A, 10V | 3.5V @ 100µA | 10.5 nC @ 10 V | ±20V | 225 pF @ 100 V | - | 5W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
G20P06KP-60V, -20A,RD<45M@-10V,VTH-2V~- |
2500 | 0.74 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 10V | 45mOhm @ 12A, 10V | 3.5V @ 250µA | 46 nC @ 10 V | ±20V | 3430 pF @ 30 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
YJG53G06AN-CH MOSFET 60V 53A PDFN5060-8L- |
2638 | 0.82 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 53A (Tc) | 4.5V, 10V | 8.2mOhm @ 20A, 10V | 2.5V @ 250µA | 31 nC @ 10 V | ±20V | 1525 pF @ 35 V | - | 65W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
YJD45G10AN-CH MOSFET 100V 45A TO-252 |
3702 | 0.82 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 45A (Tc) | 4.5V, 10V | 17mOhm @ 20A, 10V | 3V @ 250µA | 16 nC @ 10 V | ±20V | 1135 pF @ 50 V | - | 72W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|

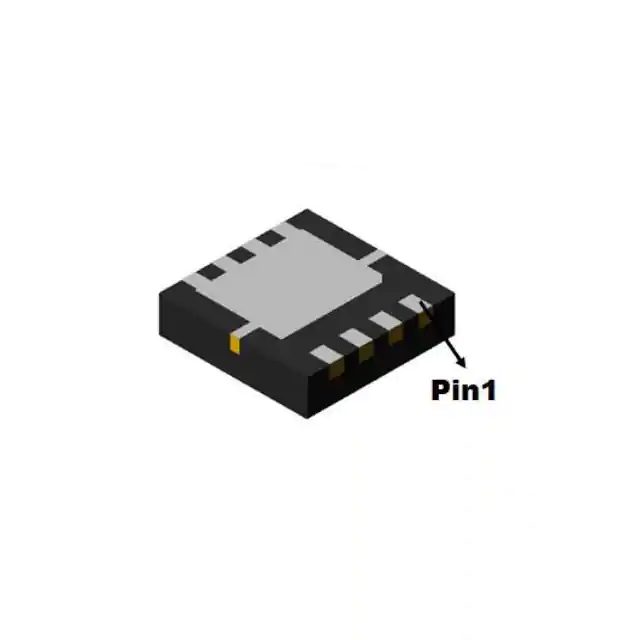

YJQ40G10AN-CH MOSFET 100V 40A DFN3333-8L- |
2596 | 0.91 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 4.5V, 10V | 18.5mOhm @ 20A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 1051 pF @ 50 V | - | 43W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
G18P03D3P30V,RD(MAX)<10M@-10V,RD(MAX)<15 |
3876 | 0.87 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 28A (Tc) | 4.5V, 10V | 10mOhm @ 10A, 10V | 2.5V @ 250µA | 30 nC @ 10 V | ±20V | 2060 pF @ 15 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
MMBT7002KMOSFET, SOT-23, 60V, 0.3A, N, 0. |
3590 | 0.34 |
ДобавитьРасследования |
Strip | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 4.5V, 10V | 3Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
YJD80G06AN-CH MOSFET 60V 80A TO-252 |
2324 | 0.91 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 4.5V, 10V | 8mOhm @ 20A, 10V | 2.2V @ 250µA | 31 nC @ 10 V | ±20V | 1990 pF @ 30 V | - | 85W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
2N7002MOSFET, SOT-23, 60V, 0.28A, N, 0 |
2849 | 0.35 |
ДобавитьРасследования |
Strip | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 280mA (Ta) | 5V, 10V | 5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±30V | 50 pF @ 25 V | - | 350mW (Ta) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRF7413TRPBF-1MOSFET N-CH 30V 13A 8SO |
3274 | 0.00 |
ДобавитьРасследования |
Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 11mOhm @ 7.3A, 10V | 3V @ 250µA | 79 nC @ 10 V | ±20V | 1800 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
MMBT7002K-AQMOSFET, SOT-23, 60V, 0.3A, N, 0. |
3824 | 0.35 |
ДобавитьРасследования |
Strip | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 4.5V, 10V | 3Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
BUK6215-75C,118NEXPERIA BUK6215-75C - 57A, 75V |
3298 | 0.00 |
ДобавитьРасследования |
Bulk | Automotive, AEC-Q101, TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 57A (Ta) | - | 15mOhm @ 15A, 10V | 2.8V @ 1mA | 61.8 nC @ 10 V | ±16V | 3900 pF @ 25 V | - | 128W (Ta) | -55°C ~ 175°C (TJ) | |
|
Таблицы данных |
|
FDD5N50UTM3A, 500V, 2OHM, N-CHANNEL MOSFET |
3015 | 0.00 |
ДобавитьРасследования |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|
MMFTP84WMOSFET, 50V, 0.13A, P, 0.25W |
3184 | 0.37 |
ДобавитьРасследования |
Tape & Reel (TR),Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 130mA | 45V | 10Ohm @ 130mA, 10V | 2V @ 1mA | - | ±20V | 45 pF @ 25 V | - | 200mW | 150°C (TJ) | Surface Mount |
| |
|
GT060N04KMOSFET, N-CH, 40V,54A,TO-252 |
2874 | 0.82 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
Таблицы данных |
|
PML260SN,118MOSFET N-CH 200V 8.8A DFN3333-8 |
2817 | 0.00 |
ДобавитьРасследования |
Bulk | TrenchMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 8.8A (Tc) | 6V, 10V | 294mOhm @ 2.6A, 10V | 4V @ 1mA | 13.3 nC @ 10 V | ±20V | 657 pF @ 30 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
MMFTN138MOSFET, SOT-23, 50V, 0.22A, N, 0 |
3462 | 0.38 |
ДобавитьРасследования |
Strip | - | Active | N-Channel | MOSFET (Metal Oxide) | 50 V | 220mA (Ta) | 4.5V, 10V | 3.5Ohm @ 220mA, 10V | 1.6V @ 1mA | - | ±20V | 60 pF @ 25 V | - | 360mW (Ta) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
UMW IRLML640220V 3.7A 1.3W 65MR@4.5V,3.7A 950 |
2859 | 0.33 |
ДобавитьРасследования |
Tape & Reel (TR) | UMW | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.7A (Ta) | 2.5V, 4.5V | 65mOhm @ 3.7A, 4.5V | 0.95V @ 250µA | 12 nC @ 5 V | ±12V | 633 pF @ 10 V | - | 1.3W (Ta) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
UMW IRLML640112V 4.3A 50MR@4.5V,4.3A 1.3W 950 |
3908 | 0.33 |
ДобавитьРасследования |
Tape & Reel (TR) | UMW | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 4.3A (Ta) | 1.8V, 4.5V | 50mOhm @ 4.3A, 4.5V | 0.95V @ 250µA | 15 nC @ 5 V | ±8V | 830 pF @ 10 V | - | 1.3W (Ta) | 150°C (TJ) | Surface Mount |
