Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
FCPF380N60-F152MOSFET N-CH 600V 10.2A TO220F-3 |
2264 | 0.00 |
ДобавитьРасследования |
Tube,Tube,Tube | SuperFET® II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.2A (Tc) | 10V | 380mOhm @ 5A, 10V | 3.5V @ 250µA | 40 nC @ 10 V | ±20V | 1665 pF @ 25 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
FCPF190N60-F152MOSFET N-CH 600V 20.2A TO220F |
3368 | 0.00 |
ДобавитьРасследования |
Tube | SuperFET® II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20.2A (Tc) | 10V | 199mOhm @ 10A, 10V | 3.5V @ 250µA | 74 nC @ 10 V | ±20V | 2950 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IPP60R600P6XKSA1MOSFET N-CH 600V 7.3A TO220-3 |
110340 | 0.56 |
ДобавитьРасследования |
Bulk,Tube | CoolMOS™ P6 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 2.4A, 10V | 4.5V @ 200µA | 12 nC @ 10 V | ±20V | 557 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IPU50R950CEBKMA1MOSFET N-CH 500V 4.3A TO251-3 |
34000 | 0.16 |
ДобавитьРасследования |
Bulk,Tube | CoolMOS™ CE | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 500 V | 4.3A (Tc) | 13V | 950mOhm @ 1.2A, 13V | 3.5V @ 100µA | 10.5 nC @ 10 V | ±20V | 231 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IPD60R600P6MOSFET N-CH 600V 7.3A TO252-3 |
2049 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | CoolMOS™ P6 | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 2.4A, 10V | - | 12 nC @ 10 V | ±20V | 557 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
DMP3120L-7MOSFET P-CH 30V 2.8A SOT-23 |
2142 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.8A (Ta) | 2.5V, 4.5V | 120mOhm @ 2.8A, 4.5V | 1.4V @ 250µA | 6.7 nC @ 10 V | ±12V | 285 pF @ 15 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
ZXM62P03E6TCMOSFET P-CH 30V 1.5A SOT26 |
2562 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 4.5V, 10V | 230mOhm @ 800mA, 4.5V | 1V @ 250µA | 10.2 nC @ 10 V | ±20V | 330 pF @ 25 V | - | 625mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
ZXMP3F35N8TAMOSFET P-CH 30V 9.3A 8SO |
2384 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 9.3A (Ta) | 4.5V, 10V | 12mOhm @ 12A, 10V | 2.6V @ 250µA | 77.1 nC @ 10 V | ±20V | 4600 pF @ 15 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
ZXMP3F36N8TAMOSFET P-CH 30V 7.2A 8SO |
2233 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.2A (Ta) | 4.5V, 10V | 20mOhm @ 10A, 10V | 2.5V @ 250µA | 43.9 nC @ 15 V | ±20V | 2265 pF @ 15 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
ZXMP3F37N8TAMOSFET P-CH 30V 6.4A 8SO |
2014 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 6.4A (Ta) | 4.5V, 10V | 25mOhm @ 7.1A, 10V | 2.5V @ 250µA | 31.6 nC @ 10 V | ±20V | 1678 pF @ 15 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STH110N10F7-6MOSFET N-CH 100V 110A H2PAK-6 |
3371 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | DeepGATE™, STripFET™ VII | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 110A (Tc) | 10V | 6.5mOhm @ 55A, 10V | 4.5V @ 250µA | 72 nC @ 10 V | ±20V | 5117 pF @ 50 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STF18NM60NDMOSFET N-CH 600V 13A TO220FP |
2812 | 0.00 |
ДобавитьРасследования |
Tube | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 290mOhm @ 6.5A, 10V | 5V @ 250µA | 34 nC @ 10 V | ±25V | 1030 pF @ 50 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STU10P6F6MOSFET P-CH 60V 10A IPAK |
3946 | 0.00 |
ДобавитьРасследования |
Tube | DeepGATE™, STripFET™ VI | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 10A (Tc) | 10V | 160mOhm @ 5A, 10V | 4V @ 250µA | 6.4 nC @ 10 V | ±20V | 340 pF @ 48 V | - | 35W (Tc) | 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
APTC90SKM60T1GMOSFET N-CH 900V 59A SP1 |
3293 | 0.00 |
ДобавитьРасследования |
Tray | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 59A (Tc) | 10V | 60mOhm @ 52A, 10V | 3.5V @ 6mA | 540 nC @ 10 V | ±20V | 13600 pF @ 100 V | Super Junction | 462W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|

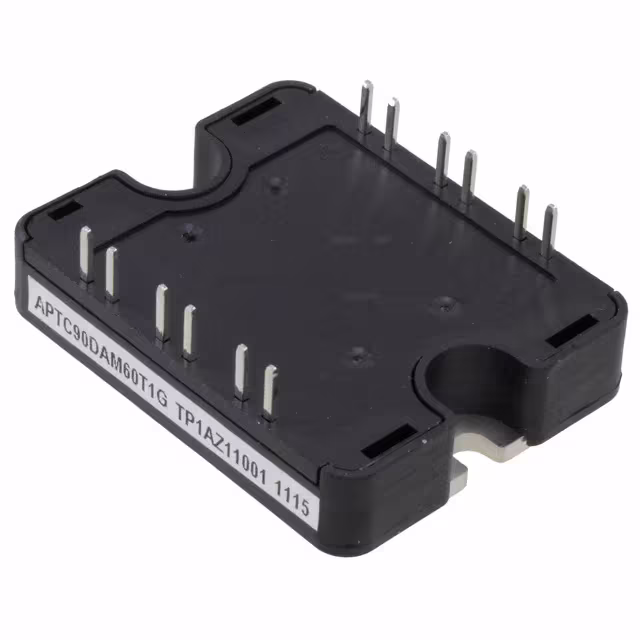

APTC90DAM60T1GMOSFET N-CH 900V 59A SP1 |
2629 | 0.00 |
ДобавитьРасследования |
Tray | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 59A (Tc) | 10V | 60mOhm @ 52A, 10V | 3.5V @ 6mA | 540 nC @ 10 V | ±20V | 13600 pF @ 100 V | Super Junction | 462W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Таблицы данных |
|
APT15F60SMOSFET N-CH 600V 16A D3PAK |
3264 | 0.00 |
ДобавитьРасследования |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 430mOhm @ 7A, 10V | 5V @ 500µA | 72 nC @ 10 V | ±30V | 2882 pF @ 25 V | - | 290W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
APT18F60SMOSFET N-CH 600V 19A D3PAK |
2435 | 0.00 |
ДобавитьРасследования |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 19A (Tc) | 10V | 370mOhm @ 9A, 10V | 5V @ 1mA | 90 nC @ 10 V | ±30V | 3550 pF @ 25 V | - | 335W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
APT20F50SMOSFET N-CH 500V 20A D3PAK |
2384 | 0.00 |
ДобавитьРасследования |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Tc) | 10V | 300mOhm @ 10A, 10V | 5V @ 500µA | 75 nC @ 10 V | ±30V | 2950 pF @ 25 V | - | 290W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
APT23F60SMOSFET N-CH 600V 24A D3PAK |
2615 | 0.00 |
ДобавитьРасследования |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 290mOhm @ 11A, 10V | 5V @ 1mA | 110 nC @ 10 V | ±30V | 4415 pF @ 25 V | - | 415W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
APT24F50SMOSFET N-CH 500V 24A D3PAK |
3923 | 0.00 |
ДобавитьРасследования |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 24A (Tc) | 10V | 240mOhm @ 11A, 10V | 5V @ 1mA | 90 nC @ 10 V | ±30V | 3630 pF @ 25 V | - | 335W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
Запрос котировок
