Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
AUIRFU8405MOSFET N-CH 40V 100A IPAK |
2088 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 1.98mOhm @ 90A, 10V | 3.9V @ 100µA | 155 nC @ 10 V | ±20V | 5171 pF @ 25 V | - | 163W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
AUIRFU8401MOSFET N-CH 40V 100A IPAK |
3489 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 4.25mOhm @ 60A, 10V | 3.9V @ 500µA | 63 nC @ 10 V | ±20V | 2200 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
| |
|
PMR290UNE,115MOSFET N-CH 20V 700MA SC75 |
3184 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 700mA (Ta) | 1.8V, 4.5V | 380mOhm @ 500mA, 4.5V | 950mV @ 250µA | 0.68 nC @ 4.5 V | ±8V | 83 pF @ 10 V | - | 250mW (Ta), 770mW (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
SK8603180LMOSFET N-CH 30V 15A/39A 8HSO |
3452 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 39A (Tc) | 4.5V, 10V | 7.1mOhm @ 10A, 10V | 3V @ 1.45mA | 9.2 nC @ 4.5 V | ±20V | 1680 pF @ 10 V | - | 2.4W (Ta), 19W (Tc) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
SK8603190LMOSFET N-CH 30V 12A/19A 8HSO |
3706 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 19A (Tc) | 4.5V, 10V | 10mOhm @ 8A, 10V | 3V @ 1.01mA | 6.3 nC @ 4.5 V | ±20V | 1092 pF @ 10 V | - | 2.7W (Ta), 19W (Tc) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|

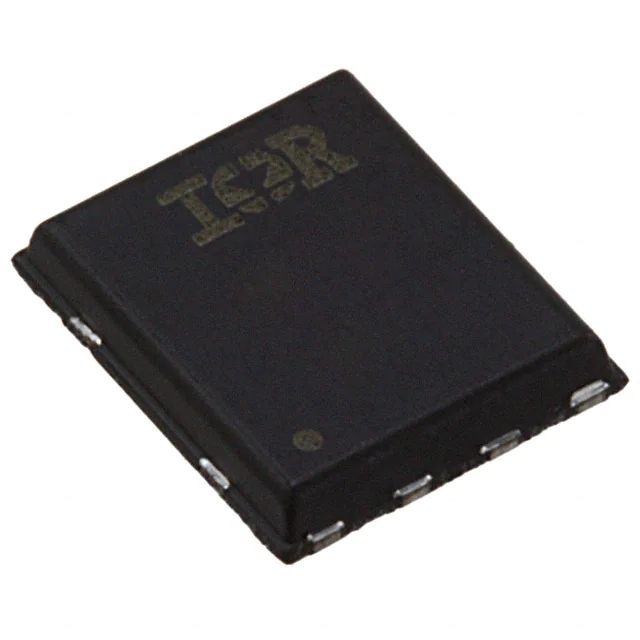

IRFH4201TRPBFMOSFET N-CH 25V 49A 8PQFN |
2175 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 49A (Ta) | 4.5V, 10V | 0.95mOhm @ 50A, 10V | 2.1V @ 150µA | 94 nC @ 10 V | ±20V | 6100 pF @ 13 V | - | 3.5W (Ta), 156W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFH4210TRPBFMOSFET N-CH 25V 45A PQFN |
3758 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 45A (Ta) | 4.5V, 10V | 1.35mOhm @ 50A, 10V | 2.1V @ 100µA | 74 nC @ 10 V | ±20V | 4812 pF @ 13 V | - | 3.6W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFH4213DTRPBFMOSFET N-CH 25V 40A PQFN |
2265 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 40A (Ta) | 4.5V, 10V | 1.35mOhm @ 50A, 10V | 2.1V @ 100µA | 55 nC @ 10 V | ±20V | 3520 pF @ 13 V | - | 3.6W (Ta), 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFH4213TRPBFMOSFET N-CH 25V 41A PQFN |
2050 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 41A (Ta) | 4.5V, 10V | 1.35mOhm @ 50A, 10V | 2.1V @ 100µA | 54 nC @ 10 V | ±20V | 3420 pF @ 13 V | - | 3.6W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFH4234TRPBFMOSFET N-CH 25V 22A PQFN |
3454 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 22A (Ta) | 4.5V, 10V | 4.6mOhm @ 30A | 2.1V @ 25µA | 17 nC @ 10 V | ±20V | 1011 pF @ 13 V | - | 3.5W (Ta), 27W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFHM4226TRPBFMOSFET N CH 25V 28A PQFN |
3119 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 28A (Ta) | 4.5V, 10V | 2.2mOhm @ 30A, 10V | 2.1V @ 50µA | 32 nC @ 10 V | ±20V | 2000 pF @ 13 V | - | 2.7W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFHM4234TRPBFMOSFET N-CH 25V 20A PQFN |
3235 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FASTIRFET™, HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 20A (Ta) | 4.5V, 10V | 4.4mOhm @ 30A, 10V | 2.1V @ 25µA | 17 nC @ 10 V | ±20V | 1011 pF @ 13 V | - | 2.8W (Ta), 28W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
TK8A10K3,S5QMOSFET N-CH 100V 8A TO220SIS |
2817 | 0.00 |
ДобавитьРасследования |
Tube | U-MOSIV | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 8A (Ta) | 10V | 120mOhm @ 4A, 10V | 4V @ 1mA | 12.9 nC @ 10 V | ±20V | 530 pF @ 10 V | - | 18W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
FDD3680MOSFET N-CH 100V 25A TO252 |
2382 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 25A (Ta) | 6V, 10V | 46mOhm @ 6.1A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±20V | 1735 pF @ 50 V | - | 68W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
FDD5670MOSFET N-CH 60V 52A TO252 |
3458 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 52A (Ta) | 6V, 10V | 15mOhm @ 10A, 10V | 4V @ 250µA | 73 nC @ 10 V | ±20V | 2739 pF @ 15 V | - | 3.8W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
FQB11P06TMMOSFET P-CH 60V 11.4A D2PAK |
2144 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | QFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 11.4A (Tc) | 10V | 175mOhm @ 5.7A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±25V | 550 pF @ 25 V | - | 3.13W (Ta), 53W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
FDMC7664MOSFET N-CH 30V 18.8A/24A 8MLP |
2345 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18.8A (Ta), 24A (Tc) | 4.5V, 10V | 4.2mOhm @ 18.8A, 10V | 3V @ 250µA | 76 nC @ 10 V | ±20V | 4865 pF @ 15 V | - | 2.3W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
FDG410NZMOSFET N-CH 20V 2.2A SC88 |
3295 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.2A (Ta) | 1.5V, 4.5V | 70mOhm @ 2.2A, 4.5V | 1V @ 250µA | 7.2 nC @ 4.5 V | ±8V | 535 pF @ 10 V | - | 420mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IPD50R1K4CEBTMA1MOSFET N-CH 500V 3.1A TO252-3 |
3441 | 1.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | CoolMOS™ CE | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 3.1A (Tc) | 13V | 1.4Ohm @ 900mA, 13V | 3.5V @ 70µA | 1 nC @ 10 V | ±20V | 178 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IPD50R3K0CEBTMA1MOSFET N-CH 500V 1.7A TO252-3 |
3317 | 1.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | CoolMOS™ CE | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 1.7A (Tc) | 13V | 3Ohm @ 400mA, 13V | 3.5V @ 30µA | 4.3 nC @ 10 V | ±20V | 84 pF @ 100 V | - | 18W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
Запрос котировок
