Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
STF30N65M5MOSFET N-CH 650V 22A TO220FP |
3763 | 0.00 |
ДобавитьРасследования |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 139mOhm @ 11A, 10V | 5V @ 250µA | 64 nC @ 10 V | ±25V | 2880 pF @ 100 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STF32N65M5MOSFET N-CH 650V 24A TO220FP |
3586 | 0.00 |
ДобавитьРасследования |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 119mOhm @ 12A, 10V | 5V @ 250µA | 72 nC @ 10 V | ±25V | 3320 pF @ 100 V | - | 35W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STP5N95K3MOSFET N-CH 950V 4A TO220 |
2642 | 0.00 |
ДобавитьРасследования |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 950 V | 4A (Tc) | 10V | 3.5Ohm @ 2A, 10V | 5V @ 100µA | 19 nC @ 10 V | ±30V | 460 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STU12N65M5MOSFET N-CH 650V 8.5A IPAK |
2453 | 0.00 |
ДобавитьРасследования |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 8.5A (Tc) | 10V | 430mOhm @ 4.3A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±25V | 900 pF @ 100 V | - | 70W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STU75N3LLH6MOSFET N-CH 30V 75A IPAK |
2337 | 0.00 |
ДобавитьРасследования |
Tube | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 4.5V, 10V | 5.9mOhm @ 37.5A, 10V | 2.5V @ 250µA | 23.8 nC @ 4.5 V | ±20V | 2030 pF @ 10 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
STW13NM60NMOSFET N-CH 600V 11A TO247-3 |
2326 | 0.00 |
ДобавитьРасследования |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±25V | 790 pF @ 50 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|

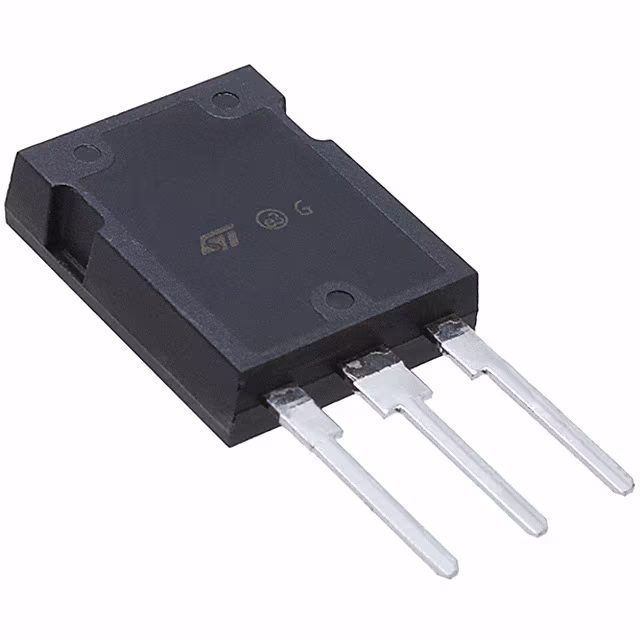

STY130NF20DMOSFET N-CH 200V 130A MAX247 |
2621 | 0.00 |
ДобавитьРасследования |
Tube | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 130A (Tc) | 10V | 12mOhm @ 65A, 10V | 4V @ 250µA | 338 nC @ 10 V | ±20V | 11100 pF @ 25 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
;;2.jpg)
|
STD14NM50NMOSFET N-CH 500V 12A DPAK |
2125 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 320mOhm @ 6A, 10V | 4V @ 100µA | 27 nC @ 10 V | ±25V | 816 pF @ 50 V | - | 90W (Tc) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STP4N62K3MOSFET N-CH 620V 3.8A TO220 |
2761 | 0.00 |
ДобавитьРасследования |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 620 V | 3.8A (Tc) | 10V | 1.95Ohm @ 1.9A, 10V | 4.5V @ 50µA | 14 nC @ 10 V | ±30V | 450 pF @ 50 V | - | 70W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STP5N52K3MOSFET N-CH 525V 4.4A TO220 |
3430 | 0.00 |
ДобавитьРасследования |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 525 V | 4.4A (Tc) | 10V | 1.5Ohm @ 2.2A, 10V | 4.5V @ 50µA | 14 nC @ 10 V | ±30V | 450 pF @ 100 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
AOT3N50MOSFET N-CH 500V 3A TO220 |
2868 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 3A (Tc) | 10V | 3Ohm @ 1.5A, 10V | 4.5V @ 250µA | 8 nC @ 10 V | ±30V | 331 pF @ 25 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
AOT2N60MOSFET N-CH 600V 2A TO220 |
2052 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 2A (Tc) | 10V | 4.4Ohm @ 1A, 10V | 4.5V @ 250µA | 11.4 nC @ 10 V | ±30V | 325 pF @ 25 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
AOT3N60MOSFET N-CH 600V 2.5A TO220 |
3653 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.5A (Tc) | 10V | 3.5Ohm @ 1.25A, 10V | 4.5V @ 250µA | 12 nC @ 10 V | ±30V | 370 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
AOT5N60MOSFET N-CH 600V 5A TO220 |
2109 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 1.8Ohm @ 2.5A, 10V | 4.5V @ 250µA | 20 nC @ 10 V | ±30V | 700 pF @ 25 V | - | 132W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
AO4444MOSFET N-CH 80V 11A 8SOIC |
3585 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | SDMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 11A (Ta) | 7V, 10V | 12mOhm @ 11A, 10V | 3.8V @ 250µA | 46 nC @ 10 V | ±25V | 2865 pF @ 40 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AO4452MOSFET N-CH 100V 8A 8SOIC |
3600 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | SDMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 8A (Ta) | 7V, 10V | 25mOhm @ 8A, 10V | 4V @ 250µA | 34 nC @ 10 V | ±25V | 2200 pF @ 50 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AOB416MOSFET N-CH 100V 6.2A/45A TO263 |
3243 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | SDMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 6.2A (Ta), 45A (Tc) | 7V, 10V | 36mOhm @ 20A, 10V | 4V @ 250µA | 24 nC @ 10 V | ±25V | 1450 pF @ 50 V | - | 2.5W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AOB418LMOSFET N-CH 100V 9.5A/105A TO263 |
3415 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | SDMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 9.5A (Ta), 105A (Tc) | 4.5V, 10V | 9.7mOhm @ 20A, 10V | 3.9V @ 250µA | 83 nC @ 10 V | ±12V | 5200 pF @ 50 V | - | 2.1W (Ta), 333W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AOB440MOSFET N-CH 60V 75A TO263 |
3348 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 75A (Tc) | 10V | 7.5mOhm @ 30A, 10V | 4V @ 250µA | 88 nC @ 10 V | ±20V | 4560 pF @ 30 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AOD4180MOSFET N-CH 80V 10A/54A TO252 |
2492 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | SDMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 10A (Ta), 54A (Tc) | 7V, 10V | 14mOhm @ 20A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±25V | 2410 pF @ 40 V | - | 3.1W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
Запрос котировок
