Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
IXFK21N100QMOSFET N-CH 1000V 21A TO264AA |
3638 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q Class | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 21A (Tc) | 10V | 500mOhm @ 10.5A, 10V | 5.5V @ 4mA | 170 nC @ 10 V | ±20V | 6900 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK24N90QMOSFET N-CH 900V 24A TO264AA |
2408 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q Class | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 24A (Tc) | 10V | 450mOhm @ 500mA, 10V | 4.5V @ 4mA | 170 nC @ 10 V | ±20V | 5900 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK26N60QMOSFET N-CH 600V 26A TO264AA |
3125 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 250mOhm @ 13A, 10V | 4.5V @ 4mA | 200 nC @ 10 V | ±20V | 5100 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK30N100Q2MOSFET N-CH 1000V 30A TO264AA |
2403 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q2 Class | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 30A (Tc) | 10V | 400mOhm @ 15A, 10V | 5V @ 8mA | 186 nC @ 10 V | ±30V | 8200 pF @ 25 V | - | 735W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK32N50QMOSFET N-CH 500V 32A TO264AA |
2639 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 32A (Tc) | 10V | 160mOhm @ 16A, 10V | 4.5V @ 4mA | 150 nC @ 10 V | ±20V | 3950 pF @ 25 V | - | 416W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK38N80Q2MOSFET N-CH 800V 38A TO264AA |
3988 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q2 Class | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 38A (Tc) | 10V | 220mOhm @ 19A, 10V | 4.5V @ 8mA | 190 nC @ 10 V | ±30V | 8340 pF @ 25 V | - | 735W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK44N55QMOSFET N-CH 550V 44A TO264AA |
2023 | 0.00 |
ДобавитьРасследования |
Box | HiPerFET™, Q Class | Active | N-Channel | MOSFET (Metal Oxide) | 550 V | 44A (Tc) | 10V | 120mOhm @ 22A, 10V | 4.5V @ 4mA | 190 nC @ 10 V | ±20V | 6400 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK48N50QMOSFET N-CH 500V 48A TO264AA |
2152 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q Class | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 48A (Tc) | 10V | 100mOhm @ 24A, 10V | 4V @ 4mA | 190 nC @ 10 V | ±20V | 7000 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK52N60Q2MOSFET N-CH 600V 52A TO264AA |
2689 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q2 Class | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 52A (Tc) | 10V | 115mOhm @ 500mA, 10V | 4.5V @ 8mA | 198 nC @ 10 V | ±30V | 6800 pF @ 25 V | - | 735W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK60N55Q2MOSFET N-CH 550V 60A TO264AA |
2988 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q2 Class | Active | N-Channel | MOSFET (Metal Oxide) | 550 V | 60A (Tc) | 10V | 88mOhm @ 30A, 10V | 4.5V @ 8mA | 200 nC @ 10 V | ±30V | 7300 pF @ 25 V | - | 735W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK66N50Q2MOSFET N-CH 500V 66A TO264AA |
2874 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 66A (Tc) | 10V | 80mOhm @ 500mA, 10V | 4.5V @ 8mA | 200 nC @ 10 V | ±30V | 8400 pF @ 25 V | - | 735W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK73N30QMOSFET N-CH 300V 73A TO264AA |
3406 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q Class | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 73A (Tc) | 10V | 45mOhm @ 500mA, 10V | 4V @ 4mA | 195 nC @ 10 V | ±30V | 5400 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFK88N20QMOSFET N-CH 200V 88A TO264AA |
2406 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q Class | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 88A (Tc) | 10V | 30mOhm @ 44A, 10V | 4V @ 4mA | 146 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|

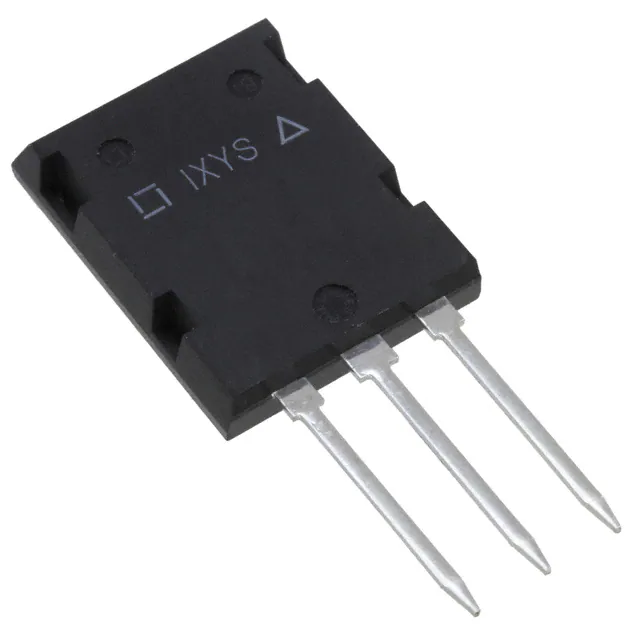

IXFL38N100Q2MOSFET N-CH 1000V 29A ISOPLUS264 |
3814 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q2 Class | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 1000 V | 29A (Tc) | 10V | 280mOhm @ 19A, 10V | 5.5V @ 8mA | 250 nC @ 10 V | ±30V | 13500 pF @ 25 V | - | 380W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFL39N90MOSFET N-CH 900V 34A ISOPLUS264 |
3851 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 34A (Tc) | 10V | 220mOhm @ 19.5A, 10V | 5V @ 8mA | 375 nC @ 10 V | ±20V | 13400 pF @ 25 V | - | 580W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFL44N60MOSFET N-CH 600V 41A ISOPLUS264 |
3815 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 41A (Tc) | 10V | 130mOhm @ 22A, 10V | 4.5V @ 8mA | 330 nC @ 10 V | ±20V | 8900 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFL44N80MOSFET N-CH 800V 44A ISOPLUS264 |
3520 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 44A (Tc) | 10V | 165mOhm @ 22A, 10V | 4V @ 8mA | 380 nC @ 10 V | ±20V | 10000 pF @ 25 V | - | 550W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFL60N60MOSFET N-CH 600V 60A ISOPLUS264 |
2156 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 60A (Tc) | 10V | 80mOhm @ 30A, 10V | 4V @ 8mA | 380 nC @ 10 V | ±20V | 10000 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFL70N60Q2MOSFET N-CH 600V 37A ISOPLUS264 |
2220 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q2 Class | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 37A (Tc) | 10V | 92mOhm @ 35A, 10V | 5.5V @ 8mA | 265 nC @ 10 V | ±30V | 12000 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFL80N50Q2MOSFET N-CH 500V 55A ISOPLUS264 |
2631 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, Q2 Class | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 55A (Tc) | 10V | 66mOhm @ 40A, 10V | 5V @ 8mA | 260 nC @ 10 V | ±30V | 10500 pF @ 25 V | - | 625W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
