Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
IXTV30N60PMOSFET N-CH 600V 30A PLUS220 |
3210 | 0.00 |
ДобавитьРасследования |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 250µA | 82 nC @ 10 V | ±30V | 5050 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXTV30N60PSMOSFET N-CH 600V 30A PLUS-220SMD |
2137 | 0.00 |
ДобавитьРасследования |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 250µA | 82 nC @ 10 V | ±30V | 5050 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXTT30N60PMOSFET N-CH 600V 30A TO268 |
3055 | 0.00 |
ДобавитьРасследования |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 250µA | 82 nC @ 10 V | ±30V | 5050 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|

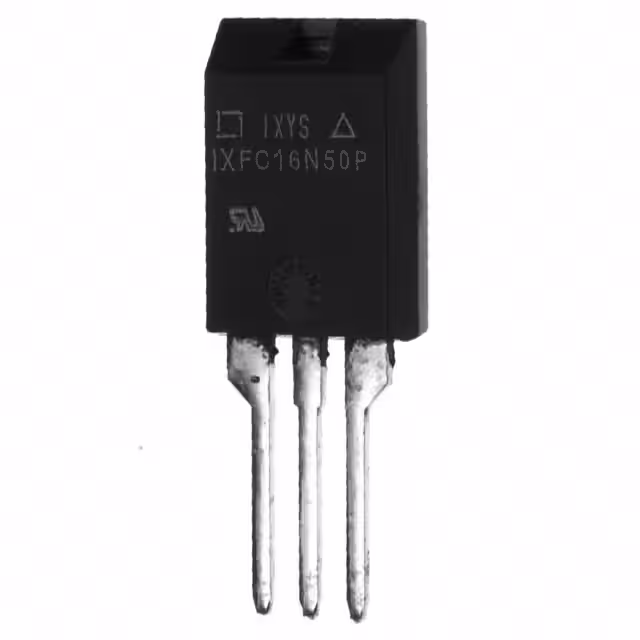

IXFC16N50PMOSFET N-CH 500V 10A ISOPLUS220 |
2862 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 10A (Tc) | 10V | 450mOhm @ 8A, 10V | 5.5V @ 2.5mA | 43 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|

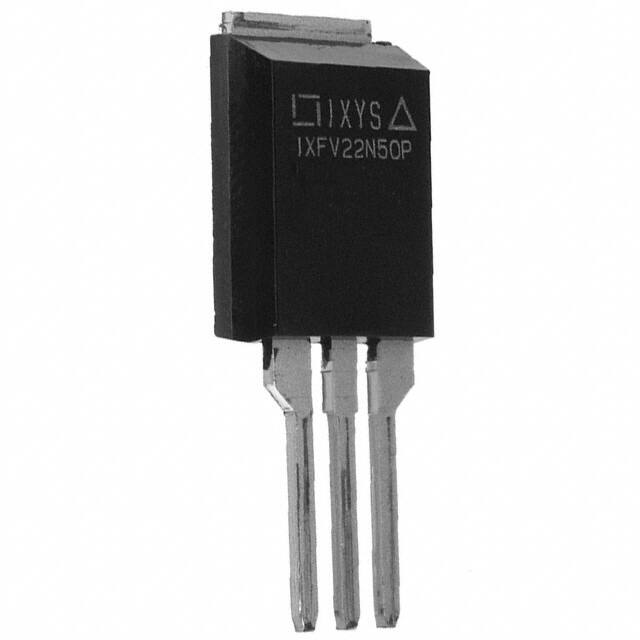

IXFV22N50PMOSFET N-CH 500V 22A PLUS220 |
3144 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2630 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFV22N50PSMOSFET N-CH 500V 22A PLUS-220SMD |
3137 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2630 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXFV26N50PMOSFET N-CH 500V 26A PLUS220 |
2253 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 4mA | 60 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFV26N50PSMOSFET N-CH 500V 26A PLUS-220SMD |
3853 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 4mA | 60 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|

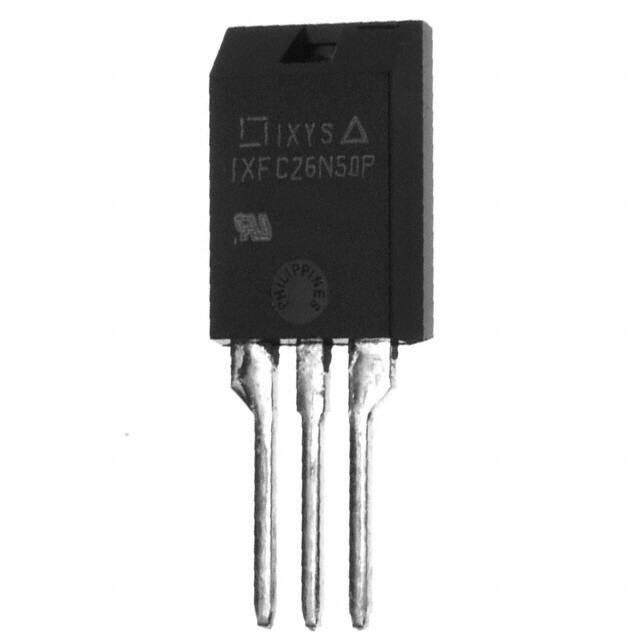

IXFC26N50PMOSFET N-CH 500V 15A ISOPLUS220 |
2506 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 15A (Tc) | 10V | 260mOhm @ 13A, 10V | 5.5V @ 4mA | 65 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|

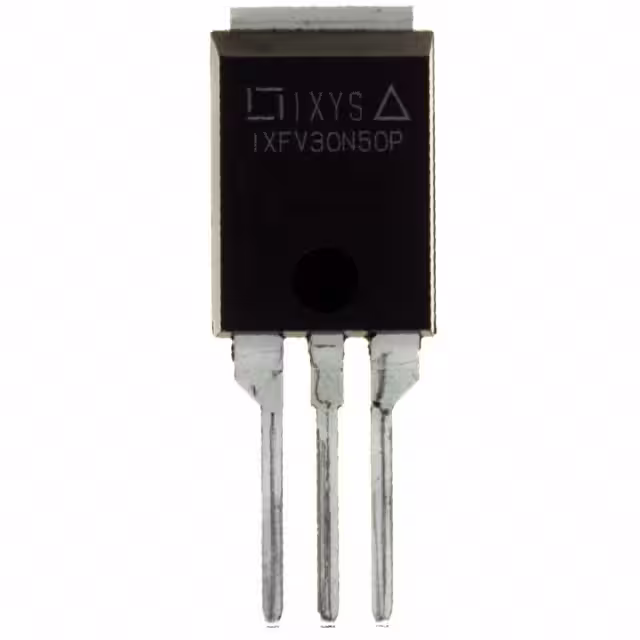

IXFV30N50PMOSFET N-CH 500V 30A PLUS220 |
2971 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A (Tc) | 10V | 200mOhm @ 15A, 10V | 5V @ 4mA | 70 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFV30N50PSMOSFET N-CH 500V 30A PLUS-220SMD |
3337 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A (Tc) | 10V | 200mOhm @ 15A, 10V | 5V @ 4mA | 70 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXFV36N50PMOSFET N-CH 500V 36A PLUS220 |
3772 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarP2™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 36A (Tc) | 10V | 170mOhm @ 500mA, 10V | 5V @ 4mA | 93 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFV36N50PSMOSFET N-CH 500V 36A PLUS-220SMD |
2851 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarP2™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 36A (Tc) | 10V | 170mOhm @ 500mA, 10V | 5V @ 4mA | 93 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|

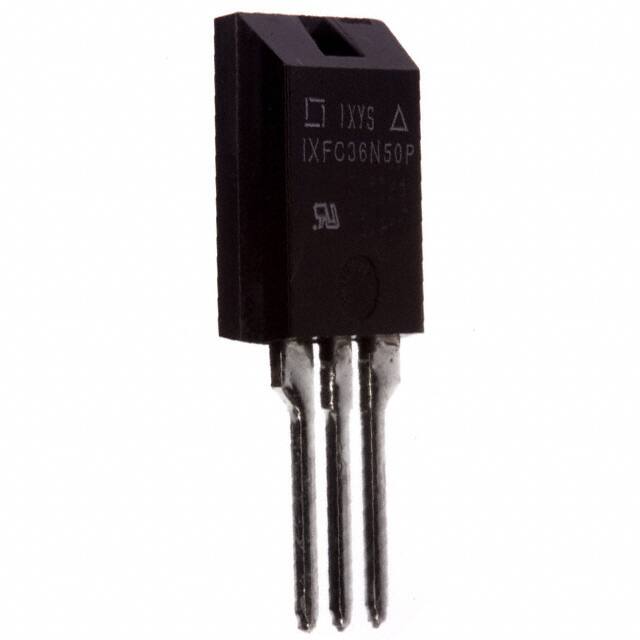

IXFC36N50PMOSFET N-CH 500V 19A ISOPLUS220 |
2938 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 19A (Tc) | 10V | 190mOhm @ 18A, 10V | 5V @ 4mA | 93 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFC14N60PMOSFET N-CH 600V 8A ISOPLUS220 |
2137 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 8A (Tc) | 10V | 630mOhm @ 7A, 10V | 5.5V @ 2.5mA | 36 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFV18N60PMOSFET N-CH 600V 18A PLUS220 |
3872 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 400mOhm @ 500mA, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IXFV18N60PSMOSFET N-CH 600V 18A PLUS-220SMD |
2947 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 400mOhm @ 500mA, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXFV22N60PMOSFET N-CH 600V 22A PLUS220 |
3118 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 350mOhm @ 11A, 10V | 5.5V @ 4mA | 58 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|

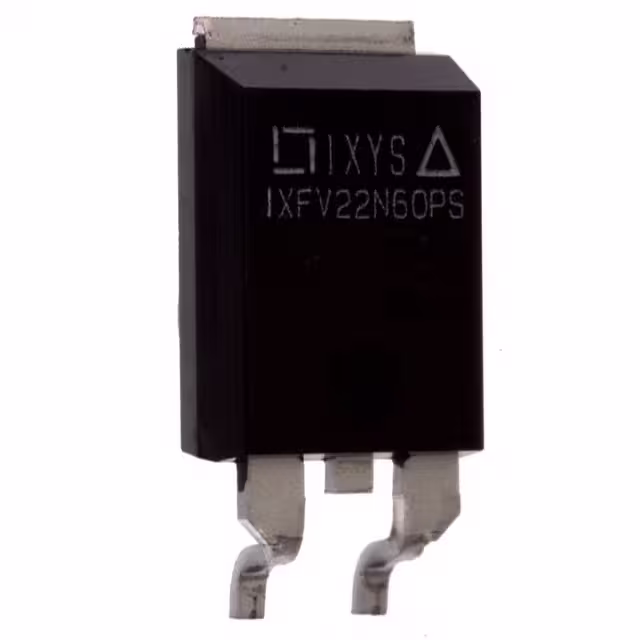

IXFV22N60PSMOSFET N-CH 600V 22A PLUS-220SMD |
2750 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 350mOhm @ 11A, 10V | 5.5V @ 4mA | 58 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXFC22N60PMOSFET N-CH 600V 12A ISOPLUS220 |
2396 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 360mOhm @ 11A, 10V | 5V @ 4mA | 58 nC @ 10 V | ±30V | 4000 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
