Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
IRF2807ZSPBFMOSFET N-CH 75V 75A D2PAK |
2070 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tc) | 10V | 9.4mOhm @ 53A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 3270 pF @ 25 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
64-2092PBFMOSFET N-CH 55V 75A D2PAK |
2059 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 6.5mOhm @ 66A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 3450 pF @ 25 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFB23N20DPBFMOSFET N-CH 200V 24A TO220AB |
2085 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 24A (Tc) | 10V | 100mOhm @ 14A, 10V | 5.5V @ 250µA | 86 nC @ 10 V | ±30V | 1960 pF @ 25 V | - | 3.8W (Ta), 170W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRL1404PBFMOSFET N-CH 40V 160A TO220AB |
2247 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 4.3V, 10V | 4mOhm @ 95A, 10V | 3V @ 250µA | 140 nC @ 5 V | ±20V | 6590 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRL1404LPBFMOSFET N-CH 40V 160A TO262 |
2980 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 4.3V, 10V | 4mOhm @ 95A, 10V | 3V @ 250µA | 140 nC @ 5 V | ±20V | 6600 pF @ 25 V | - | 3.8W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFBF30SPBFMOSFET N-CH 900V 3.6A D2PAK |
2160 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 3.6A (Tc) | 10V | 3.7Ohm @ 2.2A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRL3103SPBFMOSFET N-CH 30V 64A D2PAK |
3859 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 64A (Tc) | 4.5V, 10V | 12mOhm @ 34A, 10V | 1V @ 250µA | 33 nC @ 4.5 V | ±16V | 1650 pF @ 25 V | - | 94W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRCZ44PBFMOSFET N-CH 60V 50A TO220-5 |
2816 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 10V | 28mOhm @ 31A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±20V | 2500 pF @ 25 V | Current Sensing | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|

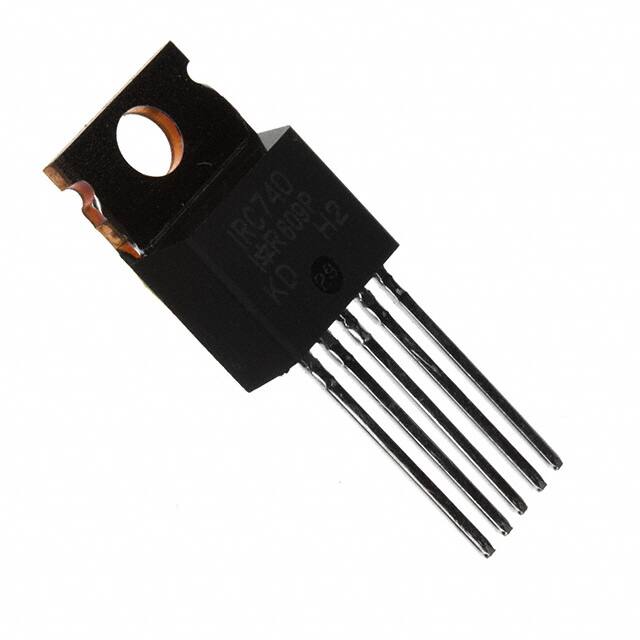

IRC740PBFMOSFET N-CH 400V 10A TO220-5 |
2504 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 10A (Tc) | 10V | 550mOhm @ 6A, 10V | 4V @ 250µA | 66 nC @ 10 V | ±20V | 1200 pF @ 25 V | Current Sensing | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRC644PBFMOSFET N-CH 250V 14A TO220-5 |
2072 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 280mOhm @ 8.4A, 10V | 4V @ 250µA | 65 nC @ 10 V | ±20V | 1200 pF @ 25 V | Current Sensing | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFB31N20DPBFMOSFET N-CH 200V 31A TO220AB |
2846 | 1.00 |
ДобавитьРасследования |
Bulk,Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 31A (Tc) | 10V | 82mOhm @ 18A, 10V | 5.5V @ 250µA | 107 nC @ 10 V | ±30V | 2370 pF @ 25 V | - | 3.1W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFS59N10DPBFMOSFET N-CH 100V 59A D2PAK |
2014 | 1.00 |
ДобавитьРасследования |
Tube,Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 100 V | 59A (Tc) | 10V | 25mOhm @ 35.4A, 10V | 5.5V @ 250µA | 114 nC @ 10 V | ±30V | 2450 pF @ 25 V | - | 3.8W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFS31N20DPBFMOSFET N-CH 200V 31A D2PAK |
3531 | 1.00 |
ДобавитьРасследования |
Tube,Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 200 V | 31A (Tc) | 10V | 82mOhm @ 18A, 10V | 5.5V @ 250µA | 107 nC @ 10 V | ±30V | 2370 pF @ 25 V | - | 3.1W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFB59N10DPBFMOSFET N-CH 100V 59A TO220AB |
3613 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 59A (Tc) | 10V | 25mOhm @ 35.4A, 10V | 5.5V @ 250µA | 114 nC @ 10 V | ±30V | 2450 pF @ 25 V | - | 3.8W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFI1010NPBFMOSFET N-CH 55V 49A TO220AB FP |
3472 | 1.00 |
ДобавитьРасследования |
Bulk,Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 49A (Tc) | 10V | 12mOhm @ 26A, 10V | 4V @ 250µA | 130 nC @ 10 V | ±20V | 2900 pF @ 25 V | - | 58W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRF1010NSPBFMOSFET N-CH 55V 85A D2PAK |
2522 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 55 V | 85A (Tc) | 10V | 11mOhm @ 43A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 3210 pF @ 25 V | - | 180W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRC840PBFMOSFET N-CH 500V 8A TO220-5 |
2193 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 850mOhm @ 4.8A, 10V | 4V @ 250µA | 67 nC @ 10 V | ±20V | 1300 pF @ 25 V | Current Sensing | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFS41N15DPBFMOSFET N-CH 150V 41A D2PAK |
3401 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 150 V | 41A (Tc) | 10V | 45mOhm @ 25A, 10V | 5.5V @ 250µA | 110 nC @ 10 V | ±30V | 2520 pF @ 25 V | - | 3.1W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRF2807SPBFMOSFET N-CH 75V 82A D2PAK |
2427 | 1.00 |
ДобавитьРасследования |
Tube,Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 75 V | 82A (Tc) | 10V | 13mOhm @ 43A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 3820 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRLI2203NPBFMOSFET N-CH 30V 61A TO220AB FP |
3930 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 61A (Tc) | 4.5V, 10V | 7mOhm @ 37A, 10V | 1V @ 250µA | 110 nC @ 4.5 V | ±16V | 3500 pF @ 25 V | - | 47W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
Запрос котировок
