Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
DMTH10H010LCTB-13MOSFET N-CH 100V 108A TO220AB |
2939 | 1.01 |
ДобавитьРасследования |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 108A (Tc) | 10V | 9.5mOhm @ 13A, 10V | 3.5V @ 250µA | 53.7 nC @ 10 V | ±20V | 2592 pF @ 50 V | - | 2.4W (Ta), 166W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
AOTF12N65MOSFET N-CH 650V 12A TO220-3F |
2062 | 1.01 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 720mOhm @ 6A, 10V | 4.5V @ 250µA | 48 nC @ 10 V | ±30V | 2150 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
AOW14N50MOSFET N-CH 500V 14A TO262 |
3496 | 1.01 |
ДобавитьРасследования |
Tube | - | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 380mOhm @ 7A, 10V | 4.5V @ 250µA | 51 nC @ 10 V | ±30V | 2297 pF @ 25 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
AOWF14N50MOSFET N-CH 500V 14A TO262F |
3293 | 1.01 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 380mOhm @ 7A, 10V | 4.5V @ 250µA | 51 nC @ 10 V | ±30V | 2297 pF @ 25 V | - | 28W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IPD65R660CFDATMA1MOSFET N-CH 650V 6A TO252-3 |
3977 | 1.01 |
ДобавитьРасследования |
Tape & Reel (TR) | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 6A (Tc) | 10V | 660mOhm @ 2.1A, 10V | 4.5V @ 200µA | 22 nC @ 10 V | ±20V | 615 pF @ 100 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AOWF7S60MOSFET N-CH 600V 7A TO262F |
2006 | 1.01 |
ДобавитьРасследования |
Tube | aMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 3.9V @ 250µA | 8.2 nC @ 10 V | ±30V | 372 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STL117N4LF7AGMOSFET N-CH 40V 119A POWERFLAT |
2099 | 1.01 |
ДобавитьРасследования |
Tape & Reel (TR) | Automotive, AEC-Q101, STripFET™ F7 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 119A (Tc) | 4.5V, 10V | 3.5mOhm @ 13A, 10V | 2.5V @ 250µA | 27.6 nC @ 10 V | ±20V | 1780 pF @ 25 V | - | 94W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
NTMFS6H801NLT1GMOSFET N-CH 80V 24A/160A 5DFN |
2478 | 1.01 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 24A (Ta), 160A (Tc) | 4.5V, 10V | 2.7mOhm @ 50A, 10V | 2V @ 250µA | 90 nC @ 10 V | ±20V | 5126 pF @ 40 V | - | 3.8W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
| |
|
IPD60R180P7SE8228AUMA1MOSFET N-CH 600V 18A TO252-3 |
2090 | 1.01 |
ДобавитьРасследования |
Tape & Reel (TR) | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 180mOhm @ 5.6A, 10V | 4V @ 280µA | 25 nC @ 10 V | ±20V | 1081 pF @ 400 V | - | 72W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFR430ATRLPBFMOSFET N-CH 500V 5A DPAK |
3019 | 1.01 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Tc) | 10V | 1.7Ohm @ 3A, 10V | 4.5V @ 250µA | 24 nC @ 10 V | ±30V | 490 pF @ 25 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
NVMFS5C645NLWFAFT3GMOSFET N-CH 60V 22A/100A 5DFN |
2825 | 1.02 |
ДобавитьРасследования |
Tape & Reel (TR) | Automotive, AEC-Q101 | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Ta), 100A (Tc) | 4.5V, 10V | 4mOhm @ 50A, 10V | 2V @ 250µA | 34 nC @ 10 V | ±20V | 2200 pF @ 50 V | - | 3.7W (Ta), 79W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
NTMFS5C442NLT3GMOSFET N-CH 40V 27A/130A 5DFN |
3069 | 1.02 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 27A (Ta), 130A (Tc) | 4.5V, 10V | 2.8mOhm @ 50A, 10V | 2V @ 250µA | 50 nC @ 10 V | ±20V | 3100 pF @ 25 V | - | 3.1W (Ta), 69W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
| |
|

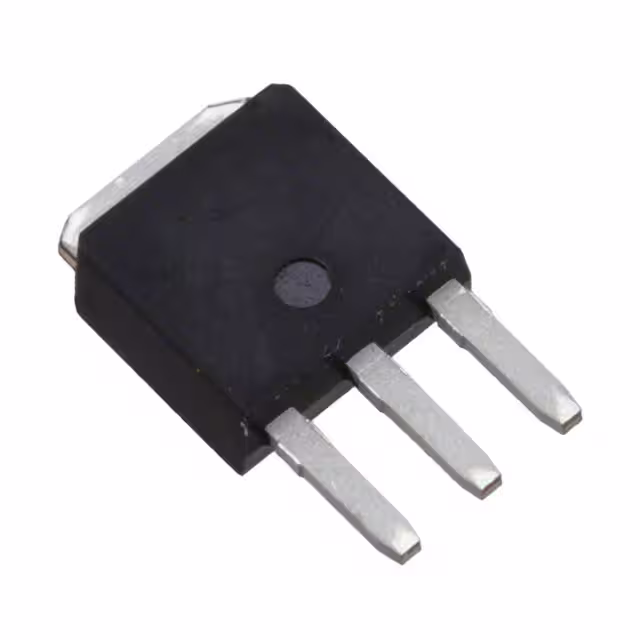

TK5Q65W,S1QMOSFET N-CH 650V 5.2A IPAK |
2867 | 1.02 |
ДобавитьРасследования |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 5.2A (Ta) | 10V | 1.22Ohm @ 2.6A, 10V | 3.5V @ 170µA | 10.5 nC @ 10 V | ±30V | 380 pF @ 300 V | - | 60W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
;;2.jpg)
|
STD130N4F6AGMOSFET N-CH 40V 80A DPAK |
3129 | 1.02 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101, STripFET™ F6 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 10V | 3.6mOhm @ 40A, 10V | 4V @ 250µA | 70 nC @ 10 V | ±20V | 4260 pF @ 25 V | - | 143W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
DKI04103MOSFET N-CH 40V 29A TO252 |
3785 | 1.02 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 29A (Tc) | 4.5V, 10V | 11.5mOhm @ 18.8A, 10V | 2.5V @ 250µA | 14.5 nC @ 10 V | ±20V | 990 pF @ 25 V | - | 32W (Tc) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
BUK7Y07-30B,115MOSFET N-CH 30V 75A LFPAK56 |
3044 | 1.02 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101, TrenchMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 10V | 7mOhm @ 25A, 10V | 4V @ 1mA | 31 nC @ 10 V | ±20V | 1773 pF @ 25 V | - | 105W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
MCU20N15-TPN-CHANNEL MOSFET, DPAK PACKAGE |
3832 | 1.02 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 20A (Tc) | 10V | 65mOhm @ 10A, 10V | 4.5V @ 250µA | 12 nC @ 10 V | ±20V | 600 pF @ 75 V | - | 68W | -55°C ~ 175°C (TJ) | Surface Mount |
| |
|
PSMN5R6-100YSFQPSMN5R6-100YSF/SOT1023/4 LEADS |
2031 | 1.02 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
Таблицы данных |
|
AOTF66920LMOSFET N-CH 100V 22.5/41A TO220F |
2655 | 1.02 |
ДобавитьРасследования |
Tube | AlphaSGT™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 22.5A (Ta), 41A (Tc) | 4.5V, 10V | 8.2mOhm @ 20A, 10V | 2.5V @ 250µA | 50 nC @ 10 V | ±20V | 2500 pF @ 50 V | - | 8.3W (Ta), 27.5W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STL90N3LLH6MOSFET N-CH 30V 90A POWERFLAT |
3185 | 1.02 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | DeepGATE™, STripFET™ VI | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 90A (Tc) | 4.5V, 10V | 4.5mOhm @ 12A, 10V | 1V @ 250µA | 17 nC @ 4.5 V | ±20V | 1690 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
Запрос котировок
