Diodes-Rectifiers-Single,Discrete Semiconductor Products

Таблицы данных	Производитель. Часть #	Акции	Цены	А	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Package / Case	Capacitance @ Vr, F	Supplier Device Package	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)

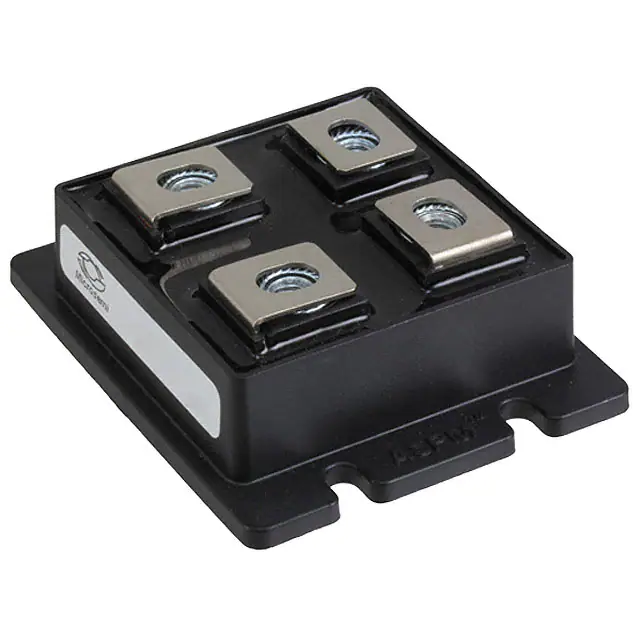

Таблицы данных	APTDF400U120G DIODE GEN PURP 1.2KV 450A LP4 Microchip Technology	2756	95.95	- + Добавить Расследования	Bulk		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Chassis Mount	-	110 ns	2.5 mA @ 1200 V	1200 V	450A	-	2.5 V @ 500 A
Таблицы данных	MSS2P3HM3_A/H DIODE SCHOTTKY 30V 2A MICROSMP Vishay General Semiconductor - Diodes Division	3302	0.41	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	Automotive, AEC-Q101, eSMP®	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	65pF @ 4V, 1MHz	-	250 µA @ 30 V	30 V	2A	-55°C ~ 150°C	600 mV @ 2 A
Таблицы данных	RB160MM-30TFTR RB160MM-30TF IS THE HIGH RELIABI Rohm Semiconductor	145	0.45	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	50 µA @ 30 V	30 V	1A	125°C (Max)	480 mV @ 1 A
Таблицы данных	RR1VWM4STR RR1VWM4S IS RECTIFYING DIODE FOR Rohm Semiconductor	2241	0.47	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	-	10 µA @ 400 V	400 V	1A	175°C (Max)	1.2 V @ 1 A
Таблицы данных	FCF16A20 DIODE FAST RECOVERY 200V 16A TO- KYOCERA AVX	2449	1.69	- + Добавить Расследования	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	35 ns	25 µA @ 200 V	200 V	16A	-40°C ~ 150°C	980 mV @ 8 A
Таблицы данных	B150Q-13-F DIODE SCHOTTKY 50V 1A SMA Diodes Incorporated	3298	0.47	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	110pF @ 4V, 1MHz	-	500 µA @ 40 V	50 V	1A	-65°C ~ 150°C	700 mV @ 1 A

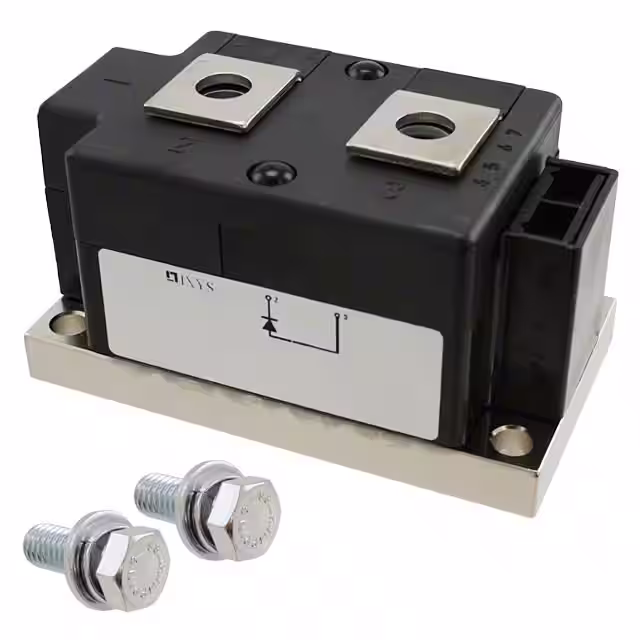

Таблицы данных	MDO500-12N1 DIODE GEN PURP 1.2KV 560A Y1-CU IXYS	3766	125.67	- + Добавить Расследования	Bulk		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Chassis Mount	762pF @ 400V, 1MHz	-	30 mA @ 1200 V	1200 V	560A	-	1.3 V @ 1200 A
Таблицы данных	B5817WS-TP DIODE SCHOTTKY 20V 1A SOD323 Micro Commercial Co	2938	0.41	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	120pF @ 4V, 1MHz	-	1 mA @ 20 V	20 V	1A	-65°C ~ 125°C	450 mV @ 1 A
Таблицы данных	FS1GE-TP DIODE GEN PURP 400V 1A SMAE Micro Commercial Co	131	0.08	- + Добавить Расследования	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Discontinued at Digi-Key	Surface Mount	-	150 ns	5 µA @ 400 V	400 V	1A	-50°C ~ 150°C	1.3 V @ 1 A
Таблицы данных	RBR1MM60ATFTR DIODE (RECTIFIER FRD) 60V-VR 1A- Rohm Semiconductor	3392	0.11	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Not For New Designs	Surface Mount	-	-	75 µA @ 60 V	60 V	1A	150°C (Max)	530 mV @ 1 A
Таблицы данных	RFNL15TJ6SGC9 SUPER FAST RECOVERY DIODE - RFNL Rohm Semiconductor	757	1.75	- + Добавить Расследования	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	160 ns	10 µA @ 600 V	600 V	15A	150°C	1.3 V @ 15 A
Таблицы данных	STPS1H100AFN 100 V, 1 A POWER SCHOTTKY RECTIF STMicroelectronics	2144	0.50	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	4 µA @ 100 V	100 V	1A	175°C	770 mV @ 1 A
Таблицы данных	LS411860 DIODE GP 1.8KV 600A POWRBLOK Powerex Inc.	2544	170.49	- + Добавить Расследования	Bulk		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Chassis Mount	-	-	40 mA @ 1800 V	1800 V	600A	-	1.19 V @ 1800 A
Таблицы данных	SK110-LTP DIODE SCHOTTKY 100V 1A DO214AA Micro Commercial Co	2287	0.41	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	30pF @ 4V, 1MHz	-	500 µA @ 100 V	100 V	1A	-55°C ~ 125°C	850 mV @ 1 A
	DB2440300L DIODE SCHOTTKY 40V 3A TMINIP2 Panasonic Electronic Components	3805	0.00	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Discontinued at Digi-Key	Surface Mount	50pF @ 10V, 1MHz	15 ns	250 µA @ 40 V	40 V	3A (DC)	150°C (Max)	540 mV @ 3 A
Таблицы данных	CDBA360-G DIODE SCHOTTKY 60V 3A DO214AC Comchip Technology	2162	0.39	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	500 µA @ 60 V	60 V	3A	-55°C ~ 150°C	700 mV @ 3 A
Таблицы данных	IDP08E65D1XKSA1 DIODE GEN PURP 650V 8A TO220-2 Infineon Technologies	726	1.76	- + Добавить Расследования	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	80 ns	40 µA @ 650 V	650 V	8A	-40°C ~ 175°C	1.7 V @ 8 A
Таблицы данных	BAT43W-7-F DIODE SCHOTTKY 30V 200MA SOD123 Diodes Incorporated	3394	0.53	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	Small Signal =< 200mA (Io), Any Speed	Schottky	Active	Surface Mount	10pF @ 1V, 1MHz	5 ns	500 nA @ 25 V	30 V	200mA (DC)	-55°C ~ 125°C	1 V @ 200 mA
Таблицы данных	1N914BTR DIODE GEN PURP 100V 200MA DO35 onsemi	2488	0.10	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Bulk		RoHS	Small Signal =< 200mA (Io), Any Speed	Standard	Active	Through Hole	4pF @ 0V, 1MHz	4 ns	5 µA @ 75 V	100 V	200mA	-65°C ~ 175°C	1 V @ 100 mA
Таблицы данных	BAT42W-E3-08 DIODE SCHOTTKY 30V 200MA SOD123 Vishay General Semiconductor - Diodes Division	2254	0.41	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	Small Signal =< 200mA (Io), Any Speed	Schottky	Active	Surface Mount	7pF @ 1V, 1MHz	5 ns	500 nA @ 25 V	30 V	200mA (DC)	125°C (Max)	650 mV @ 50 mA

Total 48193 Records«Prev 1... 294 295 296 297298299 300 301...2410 Next»
