Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
FDB7030LMOSFET N-CH 30V 80A TO263AB |
65084 | 5.34 |
ДобавитьРасследования |
Bulk | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Ta) | 4.5V, 10V | 7mOhm @ 40A, 10V | 3V @ 250µA | 33 nC @ 5 V | ±20V | 2440 pF @ 15 V | - | 68W (Tc) | -65°C ~ 175°C (TJ) | Surface Mount |
| |
|
SIPC69SN60C3X3SA1N-CHANNEL POWER MOSFET |
3000 | 5.36 |
ДобавитьРасследования |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
Таблицы данных |
.jpg)
|
IXTH20N65X2MOSFET N-CH 650V 20A TO247 |
280 | 6.98 |
ДобавитьРасследования |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 185mOhm @ 10A, 10V | 4.5V @ 250µA | 27 nC @ 10 V | ±30V | 1450 pF @ 25 V | - | 290W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
NTE2378MOSFET N-CHANNEL 900V 5A TO3P |
104 | 6.98 |
ДобавитьРасследования |
Bag | - | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 5A (Ta) | 10V | 3.6Ohm @ 2A, 10V | 3V @ 1mA | - | ±30V | 700 pF @ 20 V | - | 120W (Tc) | 150°C | Through Hole |
|
Таблицы данных |
|
R6030KNXC7G600V 30A TO-220FM, HIGH-SPEED SW |
1000 | 6.99 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Ta) | 10V | 130mOhm @ 14.5A, 10V | 5V @ 1mA | 56 nC @ 10 V | ±20V | 2350 pF @ 25 V | - | 86W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
R6530ENXC7G650V 30A TO-220FM, LOW-NOISE POW |
1000 | 6.99 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Ta) | 10V | 140mOhm @ 14.5A, 10V | 4V @ 960µA | 90 nC @ 10 V | ±20V | 2100 pF @ 25 V | - | 86W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
R6530KNXC7G650V 30A TO-220FM, HIGH-SPEED SW |
894 | 6.99 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Ta) | 10V | 140mOhm @ 14.5A, 10V | 5V @ 960µA | 56 nC @ 10 V | ±20V | 2350 pF @ 25 V | - | 86W (Tc) | 150°C (TJ) | Through Hole |
| |
|
UPA1559H(1)-AZN-CHANNEL POWER MOSFET |
8419 | 5.41 |
ДобавитьРасследования |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|
UPA1559H(2)-AZN-CHANNEL POWER MOSFET |
2719 | 5.41 |
ДобавитьРасследования |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
Таблицы данных |
|
R6035VNX3C16600V 35A TO-220AB, PRESTOMOS WIT |
1100 | 7.04 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 35A (Tc) | 10V, 15V | 114mOhm @ 8A, 15V | 6.5V @ 1.1mA | 50 nC @ 10 V | ±30V | 2400 pF @ 100 V | - | 347W (Tc) | 150°C (TJ) | Through Hole |
| |
|
FS70SM-2#201N-CHANNEL POWER MOSFET |
3105 | 5.46 |
ДобавитьРасследования |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
Таблицы данных |
|
IXTQ50N25TMOSFET N-CH 250V 50A TO3P |
274 | 7.10 |
ДобавитьРасследования |
Tube | Trench | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 50A (Tc) | 10V | 60mOhm @ 25A, 10V | 5V @ 1mA | 78 nC @ 10 V | ±30V | 4000 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
NTE2933MOSFET N-CHANNEL 400V 8A TO3PML |
168 | 7.10 |
ДобавитьРасследования |
Bag | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 8A (Tc) | 10V | 550mOhm @ 4A, 10V | 4V @ 250µA | 75 nC @ 10 V | ±30V | 1530 pF @ 25 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
| |
|
TSM60NC390CI C0G600V, 11A, SINGLE N-CHANNEL POWE |
3955 | 7.15 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 390mOhm @ 3.8A, 10V | 5V @ 1mA | 21.3 nC @ 10 V | ±20V | 832 pF @ 25 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
| |
|

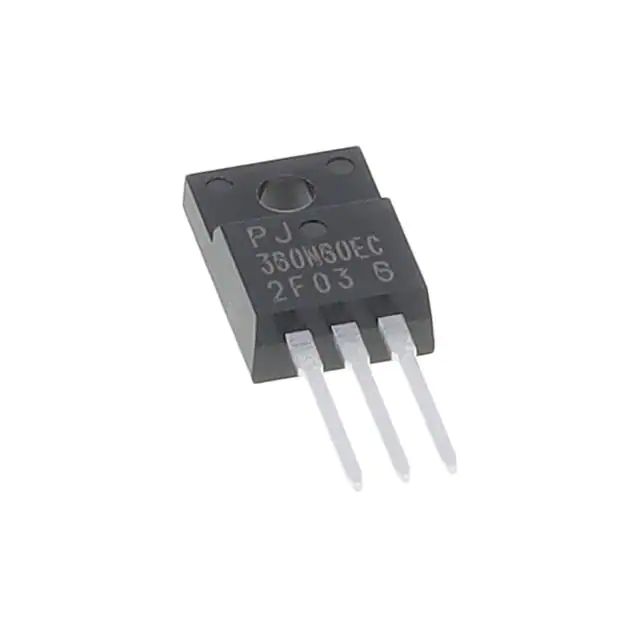

PJMF360N60EC_T0_00001600V SUPER JUNCITON MOSFET |
2000 | 7.15 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 18.7 nC @ 10 V | ±30V | 735 pF @ 400 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
| |
|

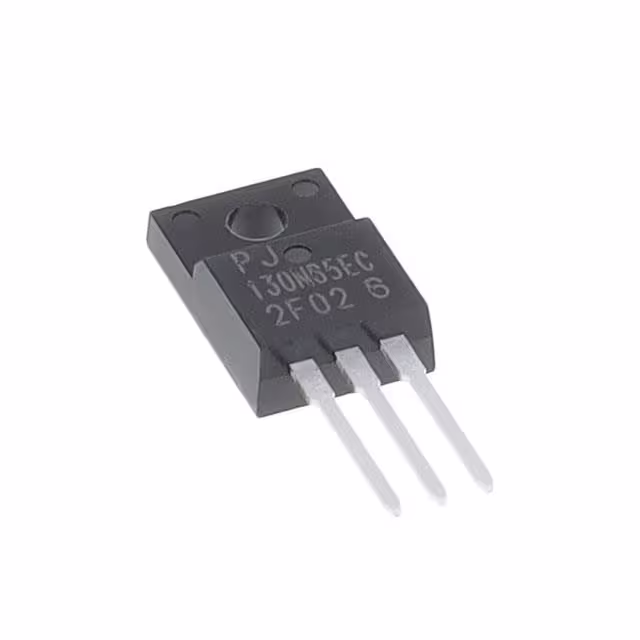

PJMP130N65EC_T0_00001650V SUPER JUNCITON MOSFET |
2000 | 7.15 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 29A (Tc) | 10V | 130mOhm @ 10.8A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±30V | 1920 pF @ 400 V | - | 235W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
| |
|
PJMP120N60EC_T0_00001600V SUPER JUNCITON MOSFET |
1998 | 7.15 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 120mOhm @ 12A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±30V | 1960 pF @ 400 V | - | 235W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
NTE2373MOSFET P-CHANNEL 200V 11A TO220 |
220 | 7.15 |
ДобавитьРасследования |
Bag | - | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 11A (Tc) | 10V | 500mOhm @ 6.6A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
NTE2385MOSFET N-CHANNEL 500V 8A TO220 |
841 | 7.18 |
ДобавитьРасследования |
Bag | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 850mOhm @ 4.8A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
R6530ENZ4C13650V 30A TO-247, LOW-NOISE POWER |
486 | 7.18 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 140mOhm @ 14.5A, 10V | 4V @ 960µA | 90 nC @ 10 V | ±20V | 2100 pF @ 25 V | - | 305W (Tc) | 150°C (TJ) | Through Hole |
Запрос котировок
