Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
AOT12N65_001MOSFET N-CH 650V 12A TO220 |
3671 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 720mOhm @ 6A, 10V | 4.5V @ 250µA | 48 nC @ 10 V | ±30V | 2150 pF @ 25 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
AOTF8T50P_001MOSFET N-CH 500V 8A TO220F |
2304 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 810mOhm @ 4A, 10V | 5V @ 250µA | 19 nC @ 10 V | ±30V | 905 pF @ 100 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
| |
|
MT8386M5MOSFET N-CH 30V |
2507 | 0.00 |
ДобавитьРасследования |
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
Таблицы данных |
|

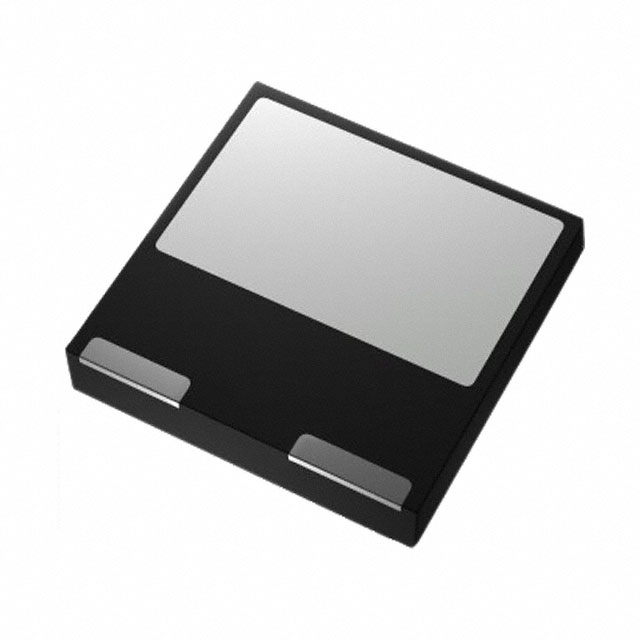

TPH3208LSGGANFET N-CH 650V 20A 3PQFN |
3624 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 20A (Tc) | 10V | 130mOhm @ 14A, 8V | 2.6V @ 300µA | 42 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
MCB60I1200TZ1200V 90A SIC POWER MOSFET |
2597 | 0.00 |
ДобавитьРасследования |
Tube | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|

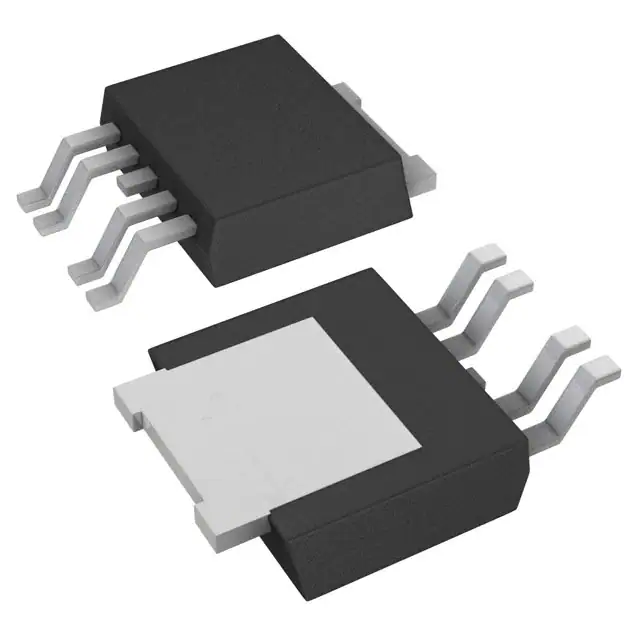

SPD50P03LGXTMOSFET P-CH 30V 50A TO252-5 |
2113 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR) | OptiMOS®-P | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 7mOhm @ 50A, 10V | 2V @ 250µA | 126 nC @ 10 V | ±20V | 6880 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
| |
|
IPI045N10N3GXKMOSFET N-CH 100V 137A TO262-3 |
2775 | 0.00 |
ДобавитьРасследования |
Tube | OptiMOS™ 3 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 137A (Tc) | 6V, 10V | 4.5mOhm @ 100A, 10V | 3.5V @ 150µA | 117 nC @ 10 V | ±20V | 8410 pF @ 50 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IPP023NE7N3GMOSFET N-CH 75V 120A TO220-3 |
3537 | 0.00 |
ДобавитьРасследования |
Tube | OptiMOS™ 3 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 2.3mOhm @ 100A, 10V | 3.8V @ 273µA | 206 nC @ 10 V | ±20V | 14400 pF @ 37.5 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
| |
|
SPP04N80C3XKMOSFET N-CH 800V 4A TO220-3 |
3360 | 1.00 |
ДобавитьРасследования |
Bulk,Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.3Ohm @ 2.5A, 10V | 3.9V @ 240µA | 31 nC @ 10 V | ±20V | 570 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
| |
|
SPP06N80C3XKMOSFET N-CH 800V 6A TO220-3 |
2188 | 0.00 |
ДобавитьРасследования |
Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 900mOhm @ 3.8A, 10V | 3.9V @ 250µA | 41 nC @ 10 V | ±20V | 785 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
| |
|
SPP08N80C3XKMOSFET N-CH 800V 8A TO220-3 |
2861 | 0.00 |
ДобавитьРасследования |
Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 650mOhm @ 5.1A, 10V | 3.9V @ 470µA | 60 nC @ 10 V | ±20V | 1100 pF @ 100 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
RSS060P05FRATBMOSFET P-CH 45V 6A 8SOP |
3740 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101 | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 45 V | 6A (Ta) | 4V, 10V | 36mOhm @ 6A, 10V | 2.5V @ 1mA | 32.2 nC @ 5 V | ±20V | 2700 pF @ 10 V | - | 2W (Ta) | 150°C | Surface Mount |
|
Таблицы данных |
|
RSS065N06FRATBMOSFET N-CH 60V 6.5A 8SOP |
2118 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101 | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 6.5A (Ta) | 4V, 10V | 37mOhm @ 6.5A, 10V | 2.5V @ 1mA | 16 nC @ 5 V | ±20V | 900 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
DMG4N65CTIMOSFET N-CH 650V 4A ITO220AB |
3368 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 3Ohm @ 2A, 10V | 5V @ 250µA | 13.5 nC @ 10 V | ±30V | 900 pF @ 25 V | - | 8.35W (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
DMS3016SSS-13MOSFET N-CH 30V 9.8A 8SO |
2806 | 0.44 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.8A (Ta) | 4.5V, 10V | 13mOhm @ 9.8A, 10V | 2.3V @ 250µA | 43 nC @ 10 V | ±12V | 1849 pF @ 15 V | Schottky Diode (Body) | 1.54W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
DMP32D5LFA-7BMOSFET P-CH 30V 300MA 3DFN |
7458 | 0.37 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 300mA (Ta) | 1.8V, 4.5V | 1.5Ohm @ 200mA, 4.5V | 1.2V @ 250µA | 0.7 nC @ 4.5 V | ±8V | 40.9 pF @ 15 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
| |
|
SPP80N06S08NKMOSFET N-CH 55V 80A TO220-3 |
2489 | 0.00 |
ДобавитьРасследования |
Tube | Automotive, AEC-Q101, SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 10V | 8mOhm @ 80A, 10V | 4V @ 240µA | 187 nC @ 10 V | ±20V | 3660 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
DMP3098LDM-7MOSFET P-CH 30V 4A SOT-26 |
2338 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 4.5V, 10V | 65mOhm @ 4A, 10V | 2.1V @ 250µA | 7.8 nC @ 10 V | ±20V | 336 pF @ 25 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
SI4778DY-T1-E3MOSFET N-CH 25V 8A 8SO |
2226 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 8A (Tc) | 4.5V, 10V | 23mOhm @ 7A, 10V | 2.2V @ 250µA | 18 nC @ 10 V | ±16V | 680 pF @ 13 V | - | 2.4W (Ta), 5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
SQ7415AENW-T1_GE3MOSFET P-CH 60V 16A PPAK1212-8 |
2113 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 16A (Tc) | 4.5V, 10V | 65mOhm @ 5.7A, 10V | 2.5V @ 250µA | 38 nC @ 10 V | ±20V | 1385 pF @ 25 V | - | 53W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
Запрос котировок
