Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|
IXTU55N075TMOSFET N-CH 75V 55A TO251 |
3160 | 0.00 |
ДобавитьРасследования |
Tube | Trench | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 55A (Tc) | - | - | 4V @ 25µA | - | - | - | - | - | - | Through Hole |
|
Таблицы данных |
|
IXTU5N50PMOSFET N-CH 500V 4.8A TO252 |
2925 | 0.00 |
ДобавитьРасследования |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 4.8A (Tc) | 10V | 1.4Ohm @ 2.4A, 10V | 5.5V @ 50µA | 12.6 nC @ 10 V | ±30V | 620 pF @ 25 V | - | 89W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
| |
|
IXTU64N055TMOSFET N-CH 55V 64A TO251 |
3146 | 0.00 |
ДобавитьРасследования |
Tube | Trench | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 64A (Tc) | - | - | 4V @ 25µA | - | - | - | - | - | - | Through Hole |
|
Таблицы данных |
|
IXTY01N80MOSFET N-CH 800V 100MA TO252AA |
2953 | 0.00 |
ДобавитьРасследования |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 100mA (Tc) | 10V | 50Ohm @ 100mA, 10V | 4.5V @ 25µA | 8 nC @ 10 V | ±20V | 60 pF @ 25 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXTY1N80MOSFET N-CH 800V 750MA TO252AA |
3327 | 0.00 |
ДобавитьРасследования |
Box | - | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 750mA (Tc) | 10V | 11Ohm @ 500mA, 10V | 4.5V @ 25µA | 8.5 nC @ 10 V | ±20V | 220 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXTY2N80PMOSFET N-CH 800V 2A TO252 |
3778 | 0.00 |
ДобавитьРасследования |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 2A (Tc) | 10V | 6Ohm @ 1A, 10V | 5.5V @ 50µA | 10.6 nC @ 10 V | ±30V | 440 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXTY50N085TMOSFET N-CH 85V 50A TO252 |
2909 | 0.00 |
ДобавитьРасследования |
Tube | TrenchMV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 50A (Tc) | 10V | 23mOhm @ 25A, 10V | 4V @ 25µA | 34 nC @ 10 V | ±20V | 1460 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXTY55N075TMOSFET N-CH 75V 55A TO252 |
3209 | 0.00 |
ДобавитьРасследования |
Tube | TrenchMV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 55A (Tc) | 10V | 19.5mOhm @ 27.5A, 10V | 4V @ 25µA | 33 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|

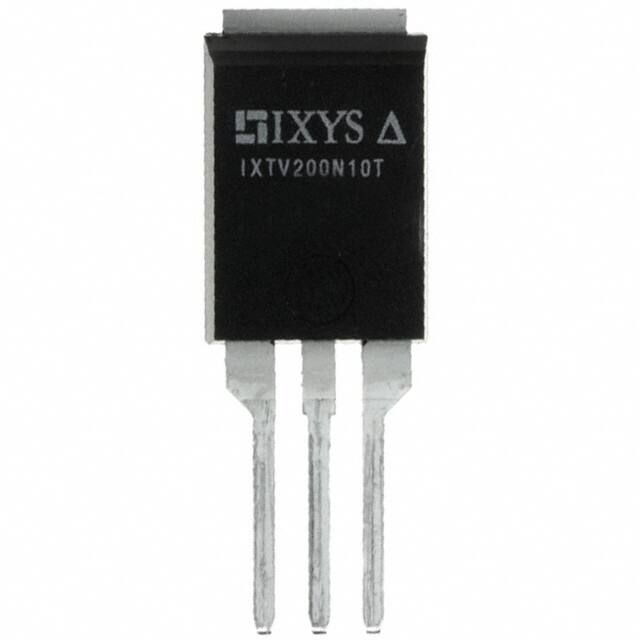

IXTV200N10TMOSFET N-CH 100V 200A PLUS220 |
3318 | 0.00 |
ДобавитьРасследования |
Tube | TrenchMV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 200A (Tc) | 10V | 5.5mOhm @ 50A, 10V | 4.5V @ 250µA | 152 nC @ 10 V | ±30V | 9400 pF @ 25 V | - | 550W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|

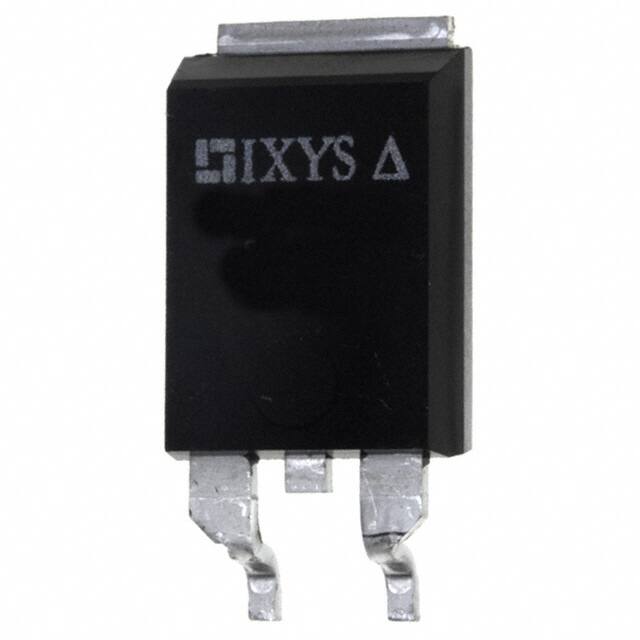

IXTV200N10TSMOSFET N-CH 100V 200A PLUS220SMD |
2962 | 0.00 |
ДобавитьРасследования |
Tube | TrenchMV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 200A (Tc) | 10V | 5.5mOhm @ 50A, 10V | 4.5V @ 250µA | 152 nC @ 10 V | ±30V | 9400 pF @ 25 V | - | 550W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|

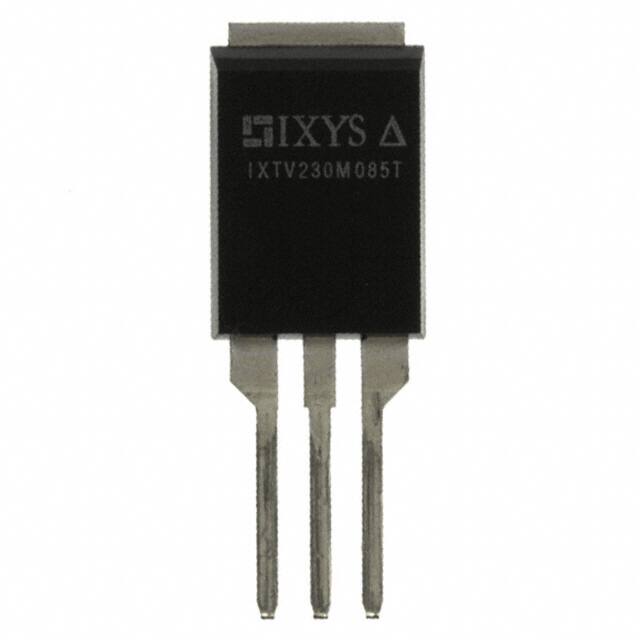

IXTV230N085TMOSFET N-CH 85V 230A PLUS220 |
2856 | 0.00 |
ДобавитьРасследования |
Tube | TrenchMV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 230A (Tc) | 10V | 4.4mOhm @ 50A, 10V | 4V @ 250µA | 187 nC @ 10 V | ±20V | 9900 pF @ 25 V | - | 550W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|

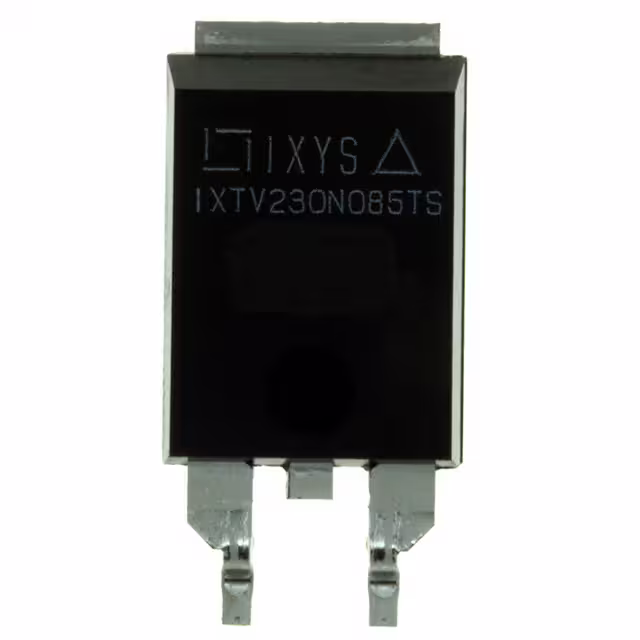

IXTV230N085TSMOSFET N-CH 85V 230A PLUS-220SMD |
3394 | 0.00 |
ДобавитьРасследования |
Tube | TrenchMV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 230A (Tc) | 10V | 4.4mOhm @ 50A, 10V | 4V @ 250µA | 187 nC @ 10 V | ±20V | 9900 pF @ 25 V | - | 550W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|

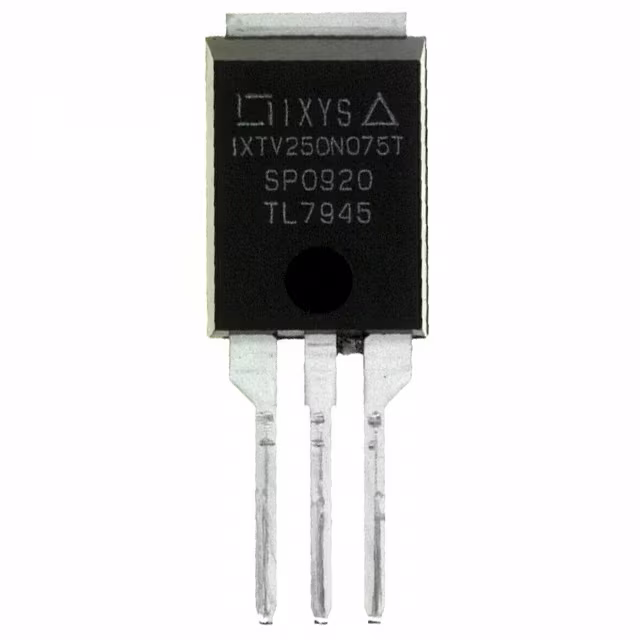

IXTV250N075TMOSFET N-CH 75V 250A PLUS220 |
2401 | 0.00 |
ДобавитьРасследования |
Tube | TrenchMV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 250A (Tc) | 10V | 4mOhm @ 50A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 9900 pF @ 25 V | - | 550W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|

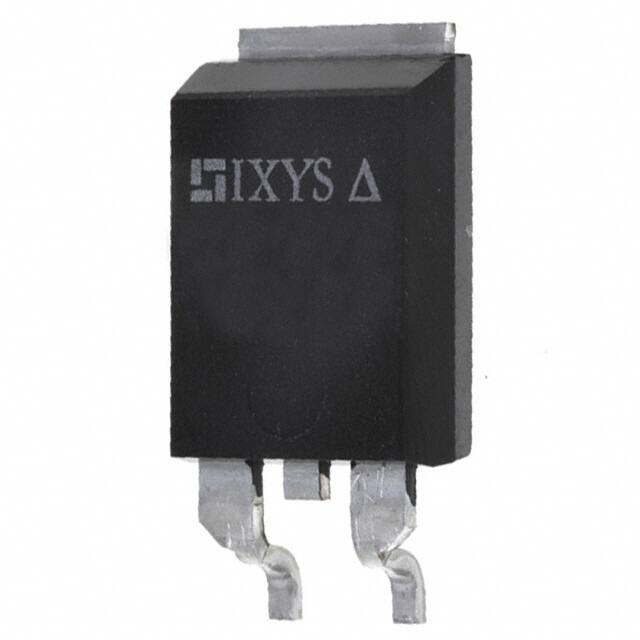

IXTV250N075TSMOSFET N-CH 75V 250A PLUS-220SMD |
3826 | 0.00 |
ДобавитьРасследования |
Tube | TrenchMV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 250A (Tc) | 10V | 4mOhm @ 50A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 9900 pF @ 25 V | - | 550W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|

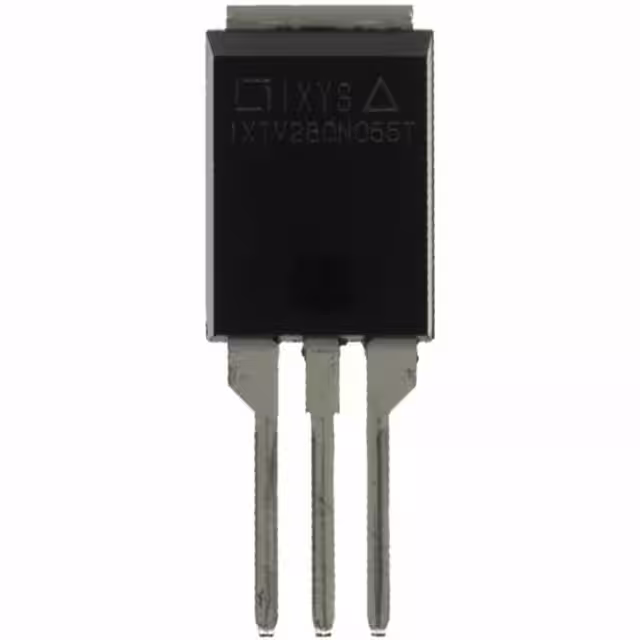

IXTV280N055TMOSFET N-CH 55V 280A PLUS220 |
3924 | 0.00 |
ДобавитьРасследования |
Tube | TrenchMV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 280A (Tc) | 10V | 3.2mOhm @ 50A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 9800 pF @ 25 V | - | 550W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|

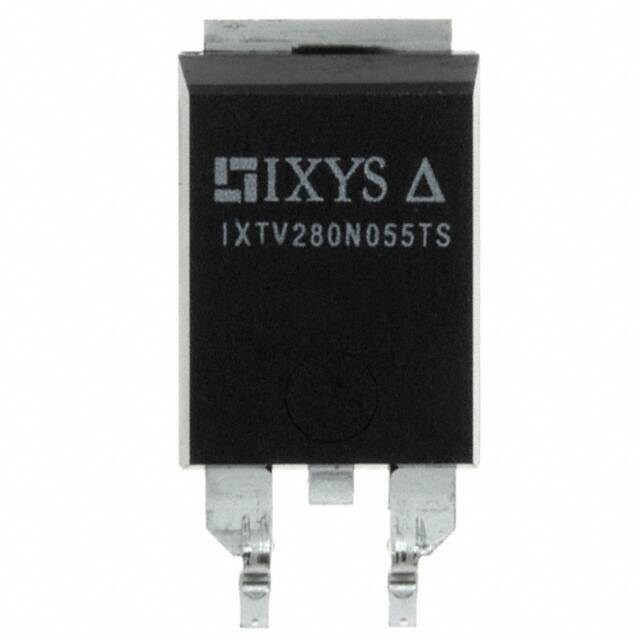

IXTV280N055TSMOSFET N-CH 55V 280A PLUS-220SMD |
2143 | 0.00 |
ДобавитьРасследования |
Tube | TrenchMV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 280A (Tc) | 10V | 3.2mOhm @ 50A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 9800 pF @ 25 V | - | 550W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXTY5N50PMOSFET N-CH 500V 4.8A TO252 |
2943 | 0.00 |
ДобавитьРасследования |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 4.8A (Tc) | 10V | 1.4Ohm @ 2.4A, 10V | 5.5V @ 50µA | 12.6 nC @ 10 V | ±30V | 620 pF @ 25 V | - | 89W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXTY64N055TMOSFET N-CH 55V 64A TO252 |
2288 | 0.00 |
ДобавитьРасследования |
Tube | TrenchMV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 64A (Tc) | 10V | 13mOhm @ 500mA, 10V | 4V @ 25µA | 37 nC @ 10 V | ±20V | 1420 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXUN280N10MOSFET N-CH 100V 280A SOT-227B |
2609 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 280A (Tc) | 10V | 5mOhm @ 140A, 10V | 4V @ 4mA | 440 nC @ 10 V | ±20V | 18000 pF @ 25 V | - | 770W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
| |
|
IXUV170N075MOSFET N-CH 75V 175A PLUS220 |
2182 | 0.00 |
ДобавитьРасследования |
Box | - | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 175A (Tc) | - | - | - | - | - | - | - | - | - | Through Hole |
