Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
FQH70N10MOSFET N-CH 100V 70A TO247-3 |
3178 | 0.00 |
ДобавитьРасследования |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 70A (Tc) | 10V | 23mOhm @ 35A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±25V | 3300 pF @ 25 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
FQAF34N25MOSFET N-CH 250V 21.7A TO3PF |
3562 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 21.7A (Tc) | 10V | 85mOhm @ 10.9A, 10V | 5V @ 250µA | 80 nC @ 10 V | ±30V | 2750 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
HUFA76443S3SMOSFET N-CH 60V 75A D2PAK |
2273 | 0.00 |
ДобавитьРасследования |
Tube | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 75A (Tc) | 4.5V, 10V | 8mOhm @ 75A, 10V | 3V @ 250µA | 129 nC @ 10 V | ±16V | 4115 pF @ 25 V | - | 260W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
FQA34N25MOSFET N-CH 250V 34A TO3P |
2680 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 34A (Tc) | 10V | 85mOhm @ 17A, 10V | 5V @ 250µA | 80 nC @ 10 V | ±30V | 2750 pF @ 25 V | - | 245W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
FQI12N50TUMOSFET N-CH 500V 12.1A I2PAK |
2581 | 0.00 |
ДобавитьРасследования |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 12.1A (Tc) | 10V | 490mOhm @ 6.05A, 10V | 5V @ 250µA | 51 nC @ 10 V | ±30V | 2020 pF @ 25 V | - | 3.13W (Ta), 179W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
HUFA75343S3SMOSFET N-CH 55V 75A D2PAK |
2864 | 0.00 |
ДобавитьРасследования |
Tube | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 9mOhm @ 75A, 10V | 4V @ 250µA | 205 nC @ 20 V | ±20V | 3000 pF @ 25 V | - | 270W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
HUF76445P3MOSFET N-CH 60V 75A TO220-3 |
2580 | 0.00 |
ДобавитьРасследования |
Tube | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 75A (Tc) | 4.5V, 10V | 6.5mOhm @ 75A, 10V | 3V @ 250µA | 150 nC @ 10 V | ±16V | 4965 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
HUFA76443S3STMOSFET N-CH 60V 75A D2PAK |
2306 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR) | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 75A (Tc) | 4.5V, 10V | 8mOhm @ 75A, 10V | 3V @ 250µA | 129 nC @ 10 V | ±16V | 4115 pF @ 25 V | - | 260W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
FDZ7064NMOSFET N-CH 30V 13.5A 30BGA |
3790 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13.5A (Ta) | 4.5V, 10V | 7mOhm @ 14.5A, 10V | 2V @ 250µA | 43 nC @ 4.5 V | ±12V | 3843 pF @ 15 V | - | 2.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
HUFA75343S3STMOSFET N-CH 55V 75A D2PAK |
2034 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR) | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 9mOhm @ 75A, 10V | 4V @ 250µA | 205 nC @ 20 V | ±20V | 3000 pF @ 25 V | - | 270W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
HUFA75344S3MOSFET N-CH 55V 75A I2PAK |
2800 | 0.00 |
ДобавитьРасследования |
Tube | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 8mOhm @ 75A, 10V | 4V @ 250µA | 210 nC @ 20 V | ±20V | 3200 pF @ 25 V | - | 285W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
FQPF17N40TMOSFET N-CH 400V 9.5A TO220F |
3898 | 0.00 |
ДобавитьРасследования |
Tube,Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 9.5A (Tc) | 10V | 270mOhm @ 4.75A, 10V | 5V @ 250µA | 60 nC @ 10 V | ±30V | 2300 pF @ 25 V | - | 56W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
HUF76645S3SMOSFET N-CH 100V 75A D2PAK |
3090 | 0.00 |
ДобавитьРасследования |
Tube | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 75A (Tc) | 4.5V, 10V | 14mOhm @ 75A, 10V | 3V @ 250µA | 153 nC @ 10 V | ±16V | 4400 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
HUF76645P3MOSFET N-CH 100V 75A TO220-3 |
3756 | 0.00 |
ДобавитьРасследования |
Tube | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 75A (Tc) | 4.5V, 10V | 14mOhm @ 75A, 10V | 3V @ 250µA | 153 nC @ 10 V | ±16V | 4400 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
HUFA75545S3SMOSFET N-CH 80V 75A D2PAK |
3509 | 0.00 |
ДобавитьРасследования |
Tube | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 75A (Tc) | 10V | 10mOhm @ 75A, 10V | 4V @ 250µA | 235 nC @ 20 V | ±20V | 3750 pF @ 25 V | - | 270W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STK850MOSFET N-CH 30V 30A POLARPAK |
2278 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Tc) | 4.5V, 10V | 2.9mOhm @ 15A, 10V | 2.5V @ 250µA | 32.5 nC @ 4.5 V | ±16V | 3150 pF @ 25 V | - | 5.2W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STP270N04MOSFET N-CH 40V 120A TO220AB |
2863 | 0.00 |
ДобавитьРасследования |
Tube | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 2.9mOhm @ 80A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 7400 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
STP75N20MOSFET N-CH 200V 75A TO220AB |
3480 | 0.00 |
ДобавитьРасследования |
Tube | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 75A (Tc) | 10V | 34mOhm @ 37A, 10V | 4V @ 250µA | 84 nC @ 10 V | ±20V | 3260 pF @ 25 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|

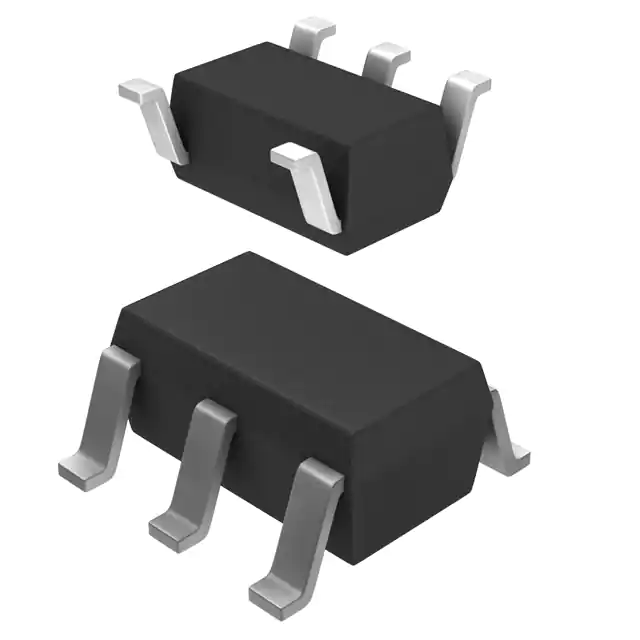

ZXMP2120E5TAMOSFET P-CH 200V 122MA SOT25 |
2813 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 122mA (Ta) | 10V | 28Ohm @ 150mA, 10V | 3.5V @ 1mA | - | ±20V | 100 pF @ 25 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
FDD8778MOSFET N-CH 25V 35A TO252AA |
3623 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 35A (Tc) | 4.5V, 10V | 14mOhm @ 35A, 10V | 2.5V @ 250µA | 18 nC @ 10 V | ±20V | 845 pF @ 13 V | - | 39W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
