Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
IRF3808SPBFMOSFET N-CH 75V 106A D2PAK |
2321 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 75 V | 106A (Tc) | 10V | 7mOhm @ 82A, 10V | 4V @ 250µA | 220 nC @ 10 V | ±20V | 5310 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFP450NPBFMOSFET N-CH 500V 14A TO247-3 |
3347 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 370mOhm @ 8.4A, 10V | 5V @ 250µA | 77 nC @ 10 V | ±30V | 2260 pF @ 25 V | - | 200W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFB16N60LPBFMOSFET N-CH 600V 16A TO220AB |
3772 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 460mOhm @ 9A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±30V | 2720 pF @ 25 V | - | 310W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFP264NPBFMOSFET N-CH 250V 44A TO247-3 |
2821 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 44A (Tc) | 10V | 60mOhm @ 25A, 10V | 4V @ 250µA | 210 nC @ 10 V | ±20V | 3860 pF @ 25 V | - | 380W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFP15N60LPBFMOSFET N-CH 600V 15A TO247-3 |
2790 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 460mOhm @ 9A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±30V | 2720 pF @ 25 V | - | 280W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
| |
|
IRFP22N60C3PBFMOSFET N-CH 650V 22A TO247-3 |
3484 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Ta) | - | - | - | - | - | - | - | - | - | Through Hole |
|
Таблицы данных |
|

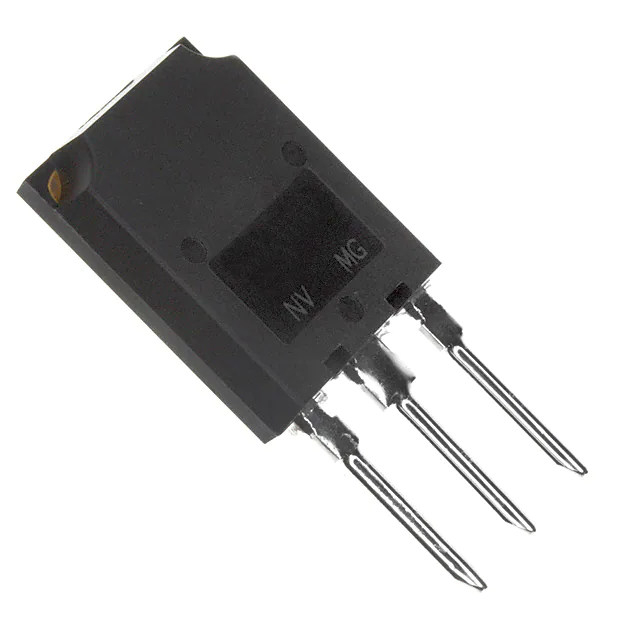

IRFPS35N50LPBFMOSFET N-CH 500V 34A SUPER247 |
3053 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 34A (Tc) | 10V | 145mOhm @ 20A, 10V | 5V @ 250µA | 230 nC @ 10 V | ±30V | 5580 pF @ 25 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFPS30N60KPBFMOSFET N-CH 600V 30A SUPER247 |
2812 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 190mOhm @ 18A, 10V | 5V @ 250µA | 220 nC @ 10 V | ±30V | 5870 pF @ 25 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFPS29N60LPBFMOSFET N-CH 600V 29A SUPER247 |
2900 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 210mOhm @ 17A, 10V | 5V @ 250µA | 220 nC @ 10 V | ±30V | 6160 pF @ 25 V | - | 480W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFPS38N60LPBFMOSFET N-CH 600V 38A SUPER247 |
2065 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 38A (Tc) | 10V | 150mOhm @ 23A, 10V | 5V @ 250µA | 320 nC @ 10 V | ±30V | 7990 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFPS40N60KPBFMOSFET N-CH 600V 40A SUPER247 |
3625 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 40A (Tc) | 10V | 130mOhm @ 24A, 10V | 5V @ 250µA | 330 nC @ 10 V | ±30V | 7970 pF @ 25 V | - | 570W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFP044NPBFMOSFET N-CH 55V 53A TO247AC |
3929 | 0.00 |
ДобавитьРасследования |
Bulk,Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 53A (Tc) | 10V | 20mOhm @ 29A, 10V | 4V @ 250µA | 61 nC @ 10 V | ±20V | 1500 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFP044PBFMOSFET N-CH 60V 57A TO247-3 |
2771 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 57A (Tc) | 10V | 28mOhm @ 34A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±20V | 2500 pF @ 25 V | - | 180W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFP344PBFMOSFET N-CH 450V 9.5A TO247-3 |
2067 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 450 V | 9.5A (Tc) | 10V | 630mOhm @ 5.7A, 10V | 4V @ 250µA | 80 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFP048NPBFMOSFET N-CH 55V 64A TO247AC |
2022 | 0.00 |
ДобавитьРасследования |
Bag | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 64A (Tc) | 10V | 16mOhm @ 37A, 10V | 4V @ 250µA | 89 nC @ 10 V | ±20V | 1900 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFPS37N50APBFMOSFET N-CH 500V 36A SUPER247 |
3910 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 36A (Tc) | 10V | 130mOhm @ 22A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±30V | 5579 pF @ 25 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFPS3815PBFMOSFET N-CH 150V 105A SUPER247 |
3486 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 105A (Tc) | 10V | 15mOhm @ 63A, 10V | 5V @ 250µA | 390 nC @ 10 V | ±30V | 6810 pF @ 25 V | - | 441W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFPS40N50LPBFMOSFET N-CH 500V 46A SUPER247 |
3697 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 46A (Tc) | 10V | 100mOhm @ 28A, 10V | 5V @ 250µA | 380 nC @ 10 V | ±30V | 8110 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRL3714PBFMOSFET N-CH 20V 36A TO220AB |
2027 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 36A (Tc) | 4.5V, 10V | 20mOhm @ 18A, 10V | 3V @ 250µA | 9.7 nC @ 4.5 V | ±20V | 670 pF @ 10 V | - | 47W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRL3714LPBFMOSFET N-CH 20V 36A TO262 |
3044 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 36A (Tc) | 4.5V, 10V | 20mOhm @ 18A, 10V | 3V @ 250µA | 9.7 nC @ 4.5 V | ±20V | 670 pF @ 10 V | - | 47W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
