Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
STW16NK60ZMOSFET N-CH 600V 14A TO247-3 |
3980 | 0.00 |
ДобавитьРасследования |
Tube | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 420mOhm @ 7A, 10V | 4.5V @ 50µA | 86 nC @ 10 V | ±30V | 2650 pF @ 25 V | - | 190W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STW20NK70ZMOSFET N-CH 700V 20A TO247-3 |
2920 | 0.00 |
ДобавитьРасследования |
Tube | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 20A (Tc) | 10V | 285mOhm @ 10A, 10V | 4.5V @ 150µA | 185 nC @ 10 V | ±30V | 6000 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRF3305MOSFET N-CH 55V 75A TO220AB |
2659 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 8mOhm @ 75A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 3650 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRFB4215MOSFET N-CH 60V 115A TO220AB |
2538 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 115A (Tc) | 10V | 9mOhm @ 54A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 4080 pF @ 25 V | - | 270W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRLL024ZMOSFET N-CH 55V 5A SOT223 |
2711 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 5A (Tc) | 4.5V, 10V | 60mOhm @ 3A, 10V | 3V @ 250µA | 11 nC @ 5 V | ±16V | 380 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
BSS123ATAMOSFET N-CH 100V 170MA SOT23-3 |
3942 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 170mA (Ta) | 4.5V, 10V | 6Ohm @ 170mA, 10V | 2V @ 1mA | - | ±20V | 25 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
ZVN4424ZTAMOSFET N-CH 240V 300MA SOT89-3 |
3575 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 240 V | 300mA (Ta) | 2.5V, 10V | 5.5Ohm @ 500mA, 10V | 1.8V @ 1mA | - | ±40V | 200 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STB80NF55-08T4MOSFET N-CH 55V 80A D2PAK |
2049 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 10V | 8mOhm @ 40A, 10V | 4V @ 250µA | 155 nC @ 10 V | ±20V | 3850 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
NTMS4503NR2MOSFET N-CH 28V 9A 8SOIC |
3520 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 28 V | 9A (Ta) | 4.5V, 10V | 8mOhm @ 14A, 10V | 2V @ 250µA | 23 nC @ 4.5 V | ±20V | 2400 pF @ 16 V | - | 930mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
NTMS4700NR2MOSFET N-CH 30V 8.6A 8SOIC |
35000 | 0.51 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.6A (Ta) | 4.5V, 10V | 7.2mOhm @ 13A, 10V | 3V @ 250µA | 24 nC @ 4.5 V | ±20V | 1600 pF @ 24 V | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|

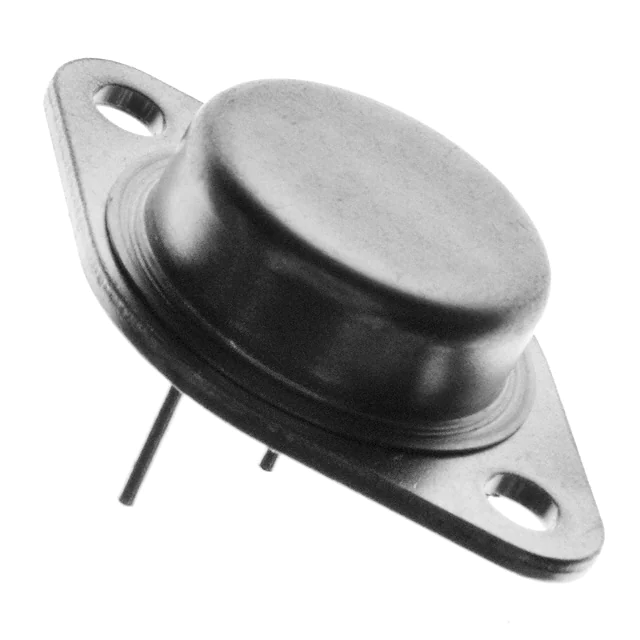

IRF450MOSFET N-CH 500V 12A TO204AA |
3456 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 500mOhm @ 12A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRF2804STRL-7PMOSFET N-CH 40V 160A D2PAK |
2717 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 1.6mOhm @ 160A, 10V | 4V @ 250µA | 260 nC @ 10 V | ±20V | 6930 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
FDN336P-NLMOSFET P-CH 20V 1.3A SUPERSOT3 |
3218 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.3A (Ta) | 2.5V, 4.5V | 200mOhm @ 1.3A, 4.5V | 1.5V @ 250µA | 5 nC @ 4.5 V | ±8V | 330 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
2SK3546J0LMOSFET N-CH 50V 100MA SSMINI3-F1 |
3940 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 100mA (Ta) | 2.5V, 4V | 12Ohm @ 10mA, 4V | 1.5V @ 1µA | - | ±7V | 12 pF @ 3 V | - | 125mW (Ta) | 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
2SK354700LMOSFET N-CH 50V 100MA SSSMINI3 |
2045 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 100mA (Ta) | 2.5V, 4V | 12Ohm @ 10mA, 4V | 1.5V @ 1µA | - | ±7V | 12 pF @ 3 V | - | 100mW (Ta) | 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
NDS8426AMOSFET N-CH 20V 10.5A 8SOIC |
2403 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 10.5A (Ta) | 2.7V, 4.5V | 13.5mOhm @ 10.5A, 4.5V | 1V @ 250µA | 60 nC @ 4.5 V | ±8V | 2150 pF @ 10 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IXFT13N100MOSFET N-CH 1000V 12.5A TO268 |
3883 | 0.00 |
ДобавитьРасследования |
Tube | HiPerFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 12.5A (Tc) | 10V | 900mOhm @ 500mA, 10V | 4.5V @ 4mA | 155 nC @ 10 V | ±20V | 4000 pF @ 25 V | - | 300W (Tc) | - | Surface Mount |
|
Таблицы данных |
|
IRFP4232PBFMOSFET N-CH 250V 60A TO247AC |
2205 | 0.00 |
ДобавитьРасследования |
Bag | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 60A (Tc) | 10V | 35.7mOhm @ 42A, 10V | 5V @ 250µA | 240 nC @ 10 V | ±20V | 7290 pF @ 25 V | - | 430W (Tc) | -40°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRF7495PBFMOSFET N-CH 100V 7.3A 8SO |
3377 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.3A (Ta) | 10V | 22mOhm @ 4.4A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±20V | 1530 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
IRFB3307MOSFET N-CH 75V 130A TO220AB |
2269 | 0.00 |
ДобавитьРасследования |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 130A (Tc) | 10V | 6.3mOhm @ 75A, 10V | 4V @ 150µA | 180 nC @ 10 V | ±20V | 5150 pF @ 50 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
