Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
STP20NE06LMOSFET N-CH 60V 20A TO220AB |
2203 | 0.00 |
ДобавитьРасследования |
Tube | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 5V, 10V | 70mOhm @ 10A, 10V | 1V @ 250µA | 20 nC @ 5 V | ±20V | 800 pF @ 25 V | - | 70W (Tc) | 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
STP5NB60MOSFET N-CH 600V 5A TO220AB |
3381 | 0.00 |
ДобавитьРасследования |
Tube | PowerMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 2Ohm @ 2.5A, 10V | 5V @ 250µA | 30 nC @ 10 V | ±30V | 884 pF @ 25 V | - | 100W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STP4NB80MOSFET N-CH 800V 4A TO220AB |
2295 | 0.00 |
ДобавитьРасследования |
Tube | PowerMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 3.3Ohm @ 2A, 10V | 5V @ 250µA | 29 nC @ 10 V | ±30V | 920 pF @ 25 V | - | 100W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
IRF520MOSFET N-CH 100V 10A TO220AB |
3332 | 0.00 |
ДобавитьРасследования |
Tube | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 10A (Tc) | 10V | 270mOhm @ 7A, 10V | 4V @ 250µA | 22 nC @ 10 V | ±20V | 460 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|

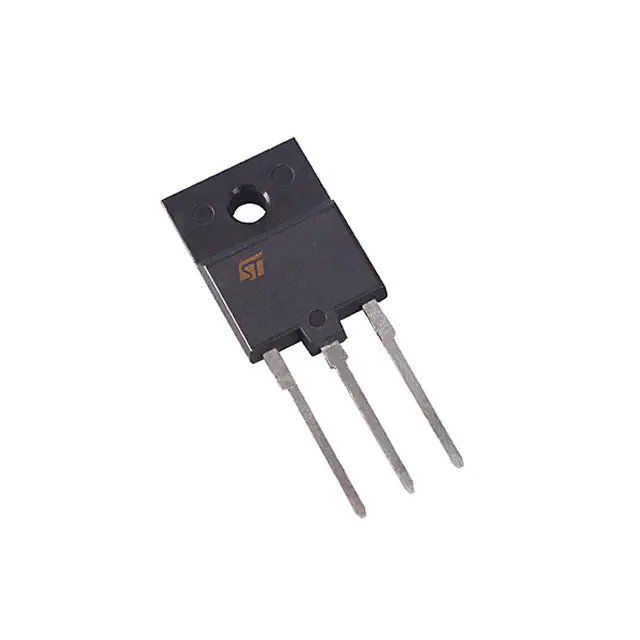

STH15NB50FIMOSFET N-CH 500V 10.5A ISOWAT218 |
3775 | 0.00 |
ДобавитьРасследования |
Tube | PowerMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 10.5A (Tc) | 10V | 360mOhm @ 7.5A, 10V | 5V @ 250µA | 80 nC @ 10 V | ±30V | 3400 pF @ 25 V | - | 80W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STP6NB90MOSFET N-CH 900V 5.8A TO220AB |
2879 | 0.00 |
ДобавитьРасследования |
Tube | PowerMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 5.8A (Tc) | 10V | 2Ohm @ 3A, 10V | 5V @ 250µA | 55 nC @ 10 V | ±30V | 1400 pF @ 25 V | - | 135W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STP50NE08MOSFET N-CH 80V 50A TO220AB |
3071 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 50A (Tc) | 10V | 24mOhm @ 25A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 5100 pF @ 25 V | - | 150W (Tc) | 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
STW11NB80MOSFET N-CH 800V 11A TO247-3 |
2718 | 0.00 |
ДобавитьРасследования |
Tube | PowerMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 11A (Tc) | 10V | 800mOhm @ 5.5A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±30V | 2900 pF @ 25 V | - | 190W (Tc) | 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
STW80NE06-10MOSFET N-CH 60V 80A TO247-3 |
2377 | 0.00 |
ДобавитьРасследования |
Tube | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 10V | 10mOhm @ 40A, 10V | 4V @ 250µA | 189 nC @ 10 V | ±20V | 7600 pF @ 25 V | - | 250W (Tc) | 175°C (TJ) | Through Hole |
|
Таблицы данных |
;;2.jpg)
|
STD10PF06T4MOSFET P-CH 60V 10A DPAK |
3731 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | STripFET™ II | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 10A (Tc) | 10V | 200mOhm @ 5A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±20V | 850 pF @ 25 V | - | 40W (Tc) | 175°C (TJ) | Surface Mount |
|
Таблицы данных |
|
STD12NF06LT4MOSFET N-CH 60V 12A DPAK |
3524 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Tc) | 5V, 10V | 100mOhm @ 6A, 10V | 2V @ 250µA | 10 nC @ 5 V | ±16V | 350 pF @ 25 V | - | 42.8W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
Таблицы данных |
.jpg)
|
IXFX55N50FMOSFET N-CH 500V 55A PLUS247-3 |
2428 | 0.00 |
ДобавитьРасследования |
Tube | HiPerRF™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 55A (Tc) | 10V | 85mOhm @ 27.5A, 10V | 5.5V @ 8mA | 195 nC @ 10 V | ±20V | 6700 pF @ 25 V | - | 560W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
,TO-226_straightlead.jpg)
|
MPF960MOSFET N-CH 60V 2A TO92-3 |
3569 | 0.00 |
ДобавитьРасследования |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 2A (Ta) | 10V | 1.7Ohm @ 1A, 10V | 3.5V @ 1mA | - | ±20V | 70 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
MPF990MOSFET N-CH 90V 2A TO92-3 |
2560 | 0.00 |
ДобавитьРасследования |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90 V | 2A (Ta) | 10V | 2Ohm @ 1A, 10V | 3.5V @ 1mA | - | ±20V | 70 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
NTD80N02-001MOSFET N-CH 24V 80A IPAK |
527401 | 0.42 |
ДобавитьРасследования |
Tube,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 80A (Tc) | 4.5V, 10V | 5.8mOhm @ 80A, 10V | 3V @ 250µA | 42 nC @ 4.5 V | ±20V | 2600 pF @ 20 V | - | 75W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
NTP75N06MOSFET N-CH 60V 75A TO220AB |
2094 | 0.00 |
ДобавитьРасследования |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 75A (Ta) | 10V | 9.5mOhm @ 37.5A, 10V | 4V @ 250µA | 130 nC @ 10 V | ±20V | 4510 pF @ 25 V | - | 2.4W (Ta), 214W (Tj) | -55°C ~ 175°C (TJ) | Through Hole |
|
Таблицы данных |
|
2N7002LT1MOSFET N-CH 60V 115MA SOT23-3 |
2788 | 0.00 |
ДобавитьРасследования |
Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Tc) | - | 7.5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | - | 50 pF @ 25 V | - | - | - | Surface Mount |
|
Таблицы данных |
|
MMBF170LT1MOSFET N-CH 60V 500MA SOT23-3 |
3660 | 0.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 500mA (Ta) | 10V | 5Ohm @ 200mA, 10V | 3V @ 1mA | - | ±20V | 60 pF @ 10 V | - | 225mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
Таблицы данных |
|
2N7000RLRAMOSFET N-CH 60V 200MA TO92-3 |
3936 | 1.00 |
ДобавитьРасследования |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 3V @ 1mA | - | ±20V | 60 pF @ 25 V | - | 350mW (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
Таблицы данных |
|
MMBF0201NLT1MOSFET N-CH 20V 300MA SOT-23 |
2701 | 0.00 |
ДобавитьРасследования |
Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 300mA (Ta) | - | 1Ohm @ 300mA, 10V | 2.4V @ 250µA | - | - | 45 pF @ 5 V | - | - | - | Surface Mount |
Запрос котировок
