Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
SC1565I5M1.8TRTIC REG LINEAR 1.8V 1.5A TO263-5 |
2007 | 0.00 |
ДобавитьРасследования |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 1.5A | 1.5A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | Surface Mount |
|
Таблицы данных |
|
EZ1084CM-1.5TRTIC REG LINEAR 1.5V 5A TO263 |
2477 | 0.00 |
ДобавитьРасследования |
TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | 1.35V @ 5A | 5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
EZ1084CM-2.5TRTIC REG LINEAR 2.5V 5A TO263 |
2365 | 0.00 |
ДобавитьРасследования |
TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.35V @ 5A | 5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
EZ1084CT-3.3TIC REG LINEAR 3.3V 5A TO220-3 |
2393 | 0.00 |
ДобавитьРасследования |
TO-220-3 | Tube | - | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.35V @ 5A | 5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Through Hole |
|
Таблицы данных |
|
EZ1084CM-3.3TRTIC REG LINEAR 3.3V 5A TO263 |
2872 | 0.00 |
ДобавитьРасследования |
TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.35V @ 5A | 5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
| |
|
EZ1581CT-2.5TIC REG LINEAR 2.5V 5A TO220-5 |
3178 | 0.00 |
ДобавитьРасследования |
TO-220-5 | Tube | - | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.6V @ 5A | 5A | 10 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Through Hole |
| |
|
EZ1581CMTRTIC REG LINEAR POS ADJ 5A TO263-5 |
3277 | 0.00 |
ДобавитьРасследования |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | - | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 0.6V @ 5A | 5A | 10 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
| |
|
SC1202CSTTRTIC REG LIN POS ADJ 600MA SOT223 |
2848 | 0.00 |
ДобавитьРасследования |
TO-261-4, TO-261AA | Tape & Reel (TR) | - | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | - | 600mA | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | Surface Mount |
| |
|
EZ1580CM-2.5TRTIC REG LINEAR 2.5V 7A TO263-5 |
2410 | 0.00 |
ДобавитьРасследования |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.8V @ 7A | 7A | 10 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | Surface Mount |
| |
|
EZ1580CTTIC REG LINEAR POS ADJ 7A TO220-5 |
3508 | 0.00 |
ДобавитьРасследования |
TO-220-5 | Tube | - | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 0.8V @ 7A | 7A | 10 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | Through Hole |
| |
|
EZ1580CM.TRTIC REG LINEAR POS ADJ 7A TO263-5 |
2308 | 0.00 |
ДобавитьРасследования |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | - | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 0.8V @ 7A | 7A | 10 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | Surface Mount |
|
Таблицы данных |
|
SC1458AWLTRTIC REG LINEAR 1.8V/2.5V 6MLPD |
3017 | 0.00 |
ДобавитьРасследования |
6-WDFN Exposed Pad | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 2.5V | - | -, 0.2V @ 200mA | 300mA, 300mA | 100 µA | - | - | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
SC1458BWLTRTIC REG LINEAR 2.85V/2.85V 6MLPD |
2162 | 0.00 |
ДобавитьРасследования |
6-WDFN Exposed Pad | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 2 | 5.5V | 2.85V, 2.85V | - | -, - | 300mA, 300mA | 100 µA | - | 65dB ~ 40dB (1kHz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
SC560LULTRTIC REG LINEAR 1.8V/3.3V 8MLPQ-UT |
3757 | 0.00 |
ДобавитьРасследования |
8-UFQFN | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 3.3V | - | -, 0.1V @ 200mA (Typ) | 300mA, 300mA | 100 µA | - | 65dB ~ 40dB (1kHz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
SC561ULTRTIC REG LIN 2.85V/3.1V 8MLPQ-UT |
2301 | 0.00 |
ДобавитьРасследования |
8-UFQFN | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 2 | 5.5V | 2.85V, 3.1V | - | 0.25V @ 250mA, 0.25V @ 250mA | 300mA, 300mA | 60 µA | 85 µA | 65dB (1kHz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
SC4205IS-1.8TRTIC REG LINEAR 1.8V 1A 8SOIC |
2235 | 0.00 |
ДобавитьРасследования |
8-SOIC (0.154, 3.90mm Width) Exposed Pad | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.5V @ 1A | 1A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | Surface Mount |
|
Таблицы данных |
|
LM3490IM5X-12/NOPBIC REG LINEAR 12V 100MA SOT23-5 |
2270 | 0.35 |
ДобавитьРасследования |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | - | Obsolete | Positive | Fixed | 1 | 30V | 12V | - | 1.2V @ 100mA | 100mA | 4 mA | - | - | Enable | Short Circuit | -40°C ~ 125°C | Surface Mount |
| |
|
AOZ2002PIIC REG LINEAR POS ADJ 2A 8SO |
2644 | 0.00 |
ДобавитьРасследования |
8-SOIC (0.154, 3.90mm Width) Exposed Pad | Tape & Reel (TR) | - | Obsolete | Positive | Adjustable | 1 | 5.5V | 1V | 5.25V | 0.25V @ 2A | 2A | 1 mA | - | - | Enable, Power Good | Over Current, Over Temperature, Power On Reset (POR) | -40°C ~ 85°C (TA) | Surface Mount |
| |
|
LP2985ITP-2.6/NOPBIC REG LINEAR 2.6V 150MA 5DSBGA |
2411 | 0.00 |
ДобавитьРасследования |

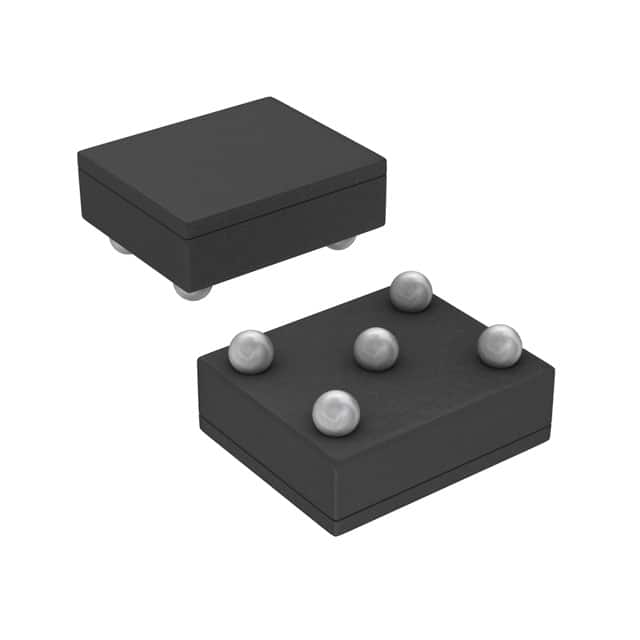

5-UFBGA, DSBGA | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 16V | 2.6V | - | 0.58V @ 150mA | 150mA | 95 µA | 2.5 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount |
| |
|
LP2985ITP-3.0/NOPBIC REG LINEAR 3V 150MA 5DSBGA |
2125 | 0.00 |
ДобавитьРасследования |
5-UFBGA, DSBGA | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 16V | 3V | - | 0.58V @ 150mA | 150mA | 95 µA | 2.5 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount |
