Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
AS1374-BWLT1833IC REG LINEAR 1.8V/3.3V 6WLCSP |
3349 | 0.00 |
ДобавитьРасследования |
6-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 3.3V | - | -, 0.15V @ 100mA | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS1352V-TIC REG LIN POS PROG 200MA 16QFN |
3083 | 0.00 |
ДобавитьРасследования |
16-VFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | Positive | Programmable | 4 | 5.5V | 1.8V | 3.3V | - | 200mA | 350 µA | - | 70dB ~ 40dB (1KHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS1374BWLT18285IC REG LINEAR 1.8V/2.85V 6WLCSP |
3370 | 0.00 |
ДобавитьРасследования |
6-UFBGA, WLCSP | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 2.85V | - | -, 0.15V @ 100mA | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|

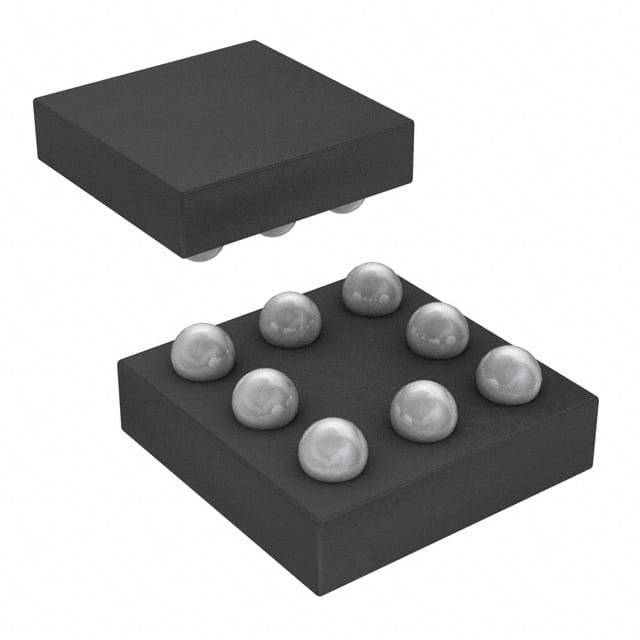

AS13986-1833-TIC REG LINEAR 1.8V/3.3V 8WLP |
3598 | 0.00 |
ДобавитьРасследования |
8-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 3.3V | - | -, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount |
|
Таблицы данных |
|
AS1372-BWLT-15IC REG LINEAR 1.5V 350MA 5WLCSP |
3881 | 0.00 |
ДобавитьРасследования |
5-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | Positive | Fixed | 1 | 4.5V | 1.5V | - | 0.11V @ 350mA (Typ) | 350mA | - | - | 85dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS13986-1225-TIC REG LINEAR 1.2V/2.5V 8WLP |
2612 | 0.00 |
ДобавитьРасследования |
8-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 2.5V | - | -, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount |
|
Таблицы данных |
|
AS1372-BWLT-10IC REG LINEAR 1V 350MA 5WLCSP |
3416 | 0.00 |
ДобавитьРасследования |
5-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | Positive | Fixed | 1 | 4.5V | 1V | - | 0.11V @ 350mA (Typ) | 350mA | - | - | 85dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS13986-2828-TIC REG LINEAR 2.8V/2.8V 8WLP |
3242 | 0.00 |
ДобавитьРасследования |
8-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 2 | 5.5V | 2.8V, 2.8V | - | 0.1V @ 150mA, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount |
|
Таблицы данных |
|
AS1374-BWLT1818IC REG LINEAR 1.8V/1.8V 6WLCSP |
3966 | 0.00 |
ДобавитьРасследования |
6-UFBGA, WLCSP | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 1.8V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS1374-BWLT1218IC REG LINEAR 1.2V/1.8V 6WLCSP |
2101 | 0.00 |
ДобавитьРасследования |
6-UFBGA, WLCSP | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 1.8V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS1367-BTDT-30IC REG LINEAR 3V 150MA 8TDFN |
2608 | 0.00 |
ДобавитьРасследования |
8-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | - | 150mA | 16 µA | 30 µA | 75dB ~ 52dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|

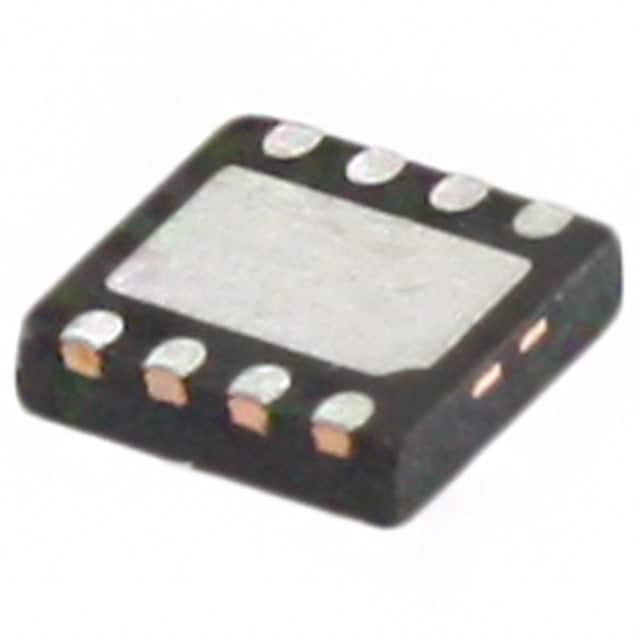

AS1364-BTDT-ADIC REG LINEAR POS ADJ 1A 8TDFN |
2738 | 0.00 |
ДобавитьРасследования |
8-WDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.3V | 0.32V @ 1A | 1A | 150 µA | 200 µA | 72dB ~ 46dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS1367-BTDT-18IC REG LINEAR 1.8V 150MA 8TDFN |
3867 | 0.00 |
ДобавитьРасследования |
8-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 16 µA | 30 µA | 75dB ~ 52dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS1364-BTDT-33IC REG LINEAR 3.3V 1A 8TDFN |
3121 | 0.00 |
ДобавитьРасследования |
8-WDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.32V @ 1A | 1A | 150 µA | 200 µA | 78dB ~ 46dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|

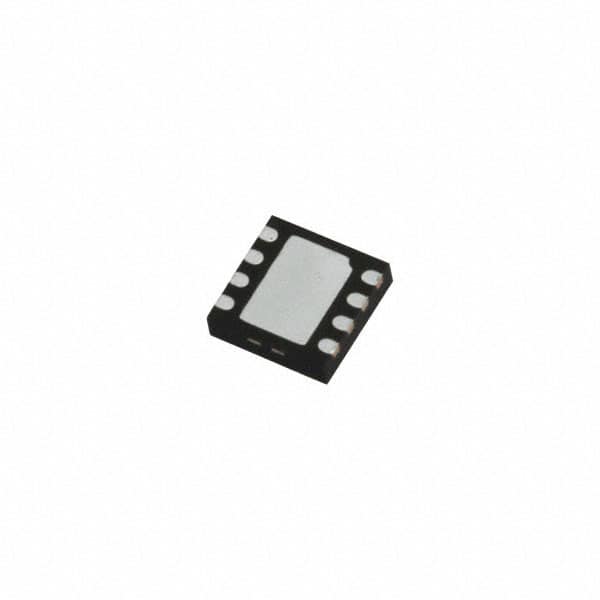

AS1364-BTDT-45IC REG LINEAR 4.5V 1A 8TDFN |
2002 | 0.00 |
ДобавитьРасследования |
8-WDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 5.5V | 4.5V | - | - | 1A | 150 µA | 200 µA | 78dB ~ 46dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
Таблицы данных |
|

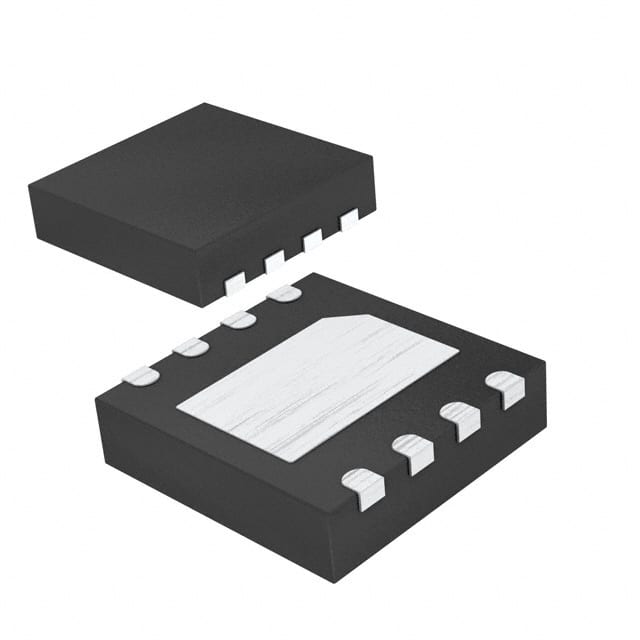

AS1364-BTDT-30IC REG LINEAR 3V 1A 8TDFN |
2647 | 0.00 |
ДобавитьРасследования |
8-WDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | - | 1A | 150 µA | 200 µA | 78dB ~ 46dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS1367-BTDT-45IC REG LINEAR 4.5V 150MA 8TDFN |
3232 | 0.00 |
ДобавитьРасследования |
8-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 5.5V | 4.5V | - | 0.2V @ 150mA | 150mA | 16 µA | 30 µA | 75dB ~ 52dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS1374-BWLT1214IC REG LINEAR 1.2V/1.4V 6WLCSP |
2215 | 0.00 |
ДобавитьРасследования |
6-UFBGA, WLCSP | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 1.4V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS1367-BTDT-33IC REG LINEAR 3.3V 150MA 8TDFN |
3383 | 0.00 |
ДобавитьРасследования |
8-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 150mA | 150mA | 16 µA | 30 µA | 75dB ~ 52dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AS1360-21-TIC REG LINEAR 2.1V 115MA SOT23-3 |
2267 | 0.00 |
ДобавитьРасследования |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 20V | 2.1V | - | 0.5V @ 60mA | 115mA | 1.5 µA | 3 µA | - | - | Over Current, Short Circuit | -40°C ~ 85°C | Surface Mount |
