Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|

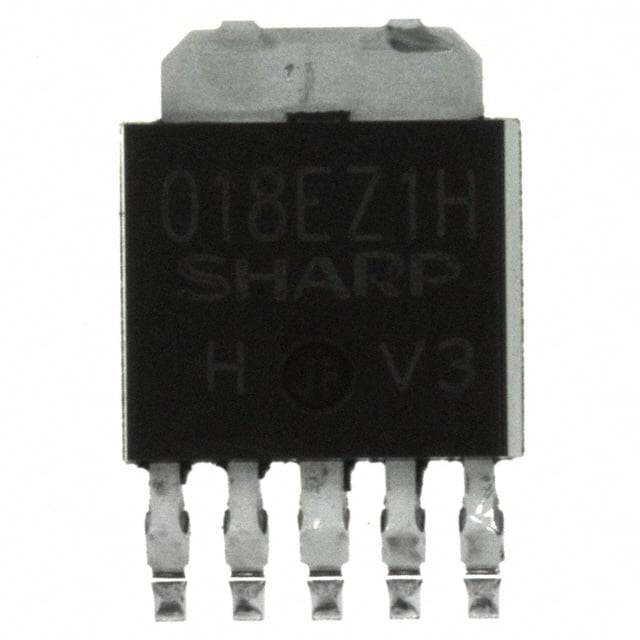

PQ018EZ1HZPHIC REG LINEAR 1.8V 1.5A SC63 |
3742 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 10V | 1.8V | - | - | 1.5A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
PQ025Y3H3ZPHIC REG LINEAR 2.5V 3.5A TO263 |
2500 | 0.00 |
ДобавитьРасследования |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.5V @ 3.5A | 3.5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
Таблицы данных |
|

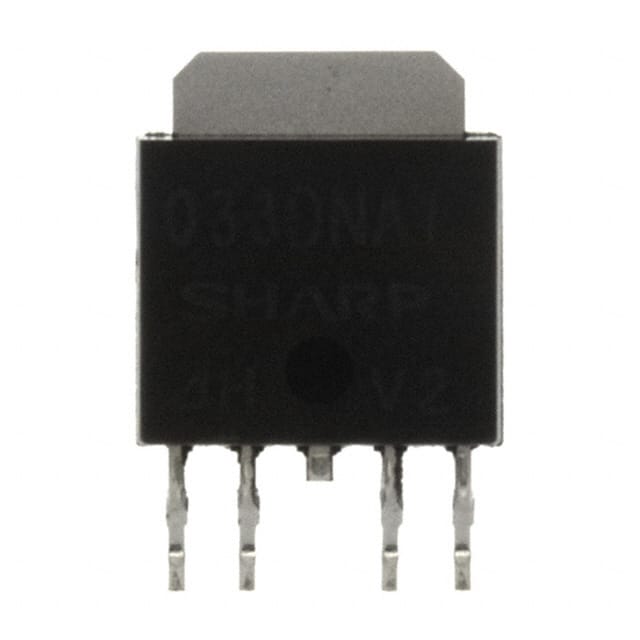

PQ033DNA1ZPHIC REG LINEAR 3.3V 1A SC63 |
3275 | 0.00 |
ДобавитьРасследования |
TO-252-5, DPak (4 Leads + Tab), TO-252AD | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 24V | 3.3V | - | 0.5V @ 500mA | 1A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
| |
|

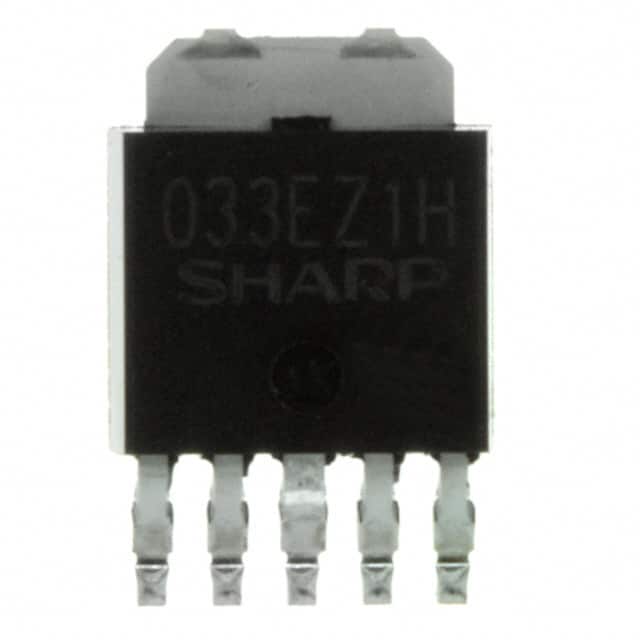

PQ033EZ1HZPHIC REG LINEAR 3.3V 1.5A SC63 |
2876 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 1V @ 1.25A | 1.5A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|

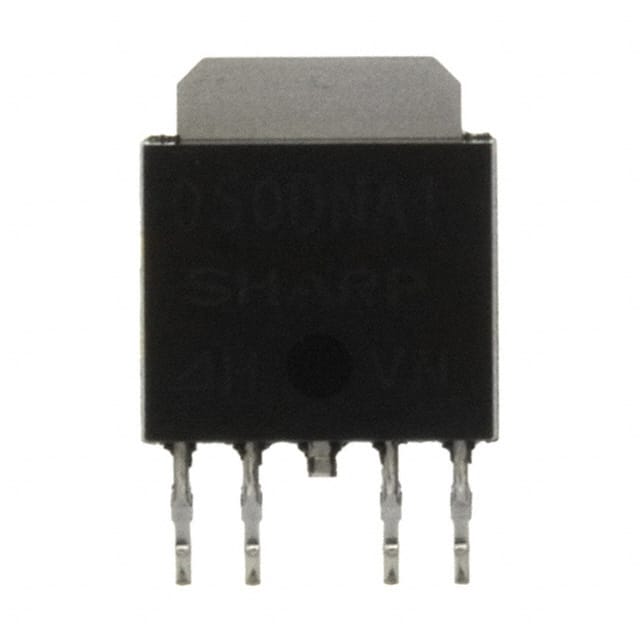

PQ050DNA1ZPHIC REG LINEAR 5V 1A SC63 |
2555 | 0.00 |
ДобавитьРасследования |
TO-252-5, DPak (4 Leads + Tab), TO-252AD | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.5V @ 500mA | 1A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
AP1084D18L-UIC REG LINEAR 1.8V 5A TO252-3 |
2147 | 0.00 |
ДобавитьРасследования |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 12V | 1.8V | - | 1.4V @ 5A | 5A | 10 mA | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1084D33L-UIC REG LINEAR 3.3V 5A TO252-3 |
3068 | 0.00 |
ДобавитьРасследования |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 1.4V @ 5A | 5A | 10 mA | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1084D50L-UIC REG LINEAR 5V 5A TO252-3 |
2902 | 0.00 |
ДобавитьРасследования |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 12V | 5V | - | 1.4V @ 5A | 5A | 10 mA | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1084DL-UIC REG LINEAR POS ADJ 5A TO252-3 |
3303 | 0.00 |
ДобавитьРасследования |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Adjustable | 1 | 12V | 1.25V | 10.6V | 1.4V @ 5A | 5A | 10 mA | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1084K18L-UIC REG LINEAR 1.8V 5A TO263-2 |
3809 | 0.00 |
ДобавитьРасследования |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | - | Obsolete | Positive | Fixed | 1 | 12V | 1.8V | - | 1.4V @ 5A | 5A | 10 mA | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1084K33L-UIC REG LINEAR 3.3V 5A TO263-2 |
3136 | 0.00 |
ДобавитьРасследования |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | - | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 1.4V @ 5A | 5A | 10 mA | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1084KL-UIC REG LINEAR POS ADJ 5A TO263 |
2253 | 0.00 |
ДобавитьРасследования |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | - | Obsolete | Positive | Adjustable | 1 | 12V | 1.25V | 10.6V | 1.4V @ 5A | 5A | 10 mA | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1086D33L-UIC REG LINEAR 3.3V 1.5A TO252-3 |
3859 | 0.00 |
ДобавитьРасследования |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 1.4V @ 1.5A | 1.5A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1086D50L-UIC REG LINEAR 5V 1.5A TO252-3 |
2534 | 0.00 |
ДобавитьРасследования |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 12V | 5V | - | 1.4V @ 1.5A | 1.5A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1086DL-UIC REG LIN POS ADJ 1.5A TO252-3 |
3095 | 0.00 |
ДобавитьРасследования |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Adjustable | 1 | 12V | 1.25V | 5V | 1.4V @ 1.5A | 1.5A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1086K33L-UIC REG LINEAR 3.3V 1.5A TO263-2 |
3873 | 0.00 |
ДобавитьРасследования |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | - | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 1.4V @ 1.5A | 1.5A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1086K50L-UIC REG LINEAR 5V 1.5A TO263-2 |
2080 | 0.00 |
ДобавитьРасследования |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | - | Obsolete | Positive | Fixed | 1 | 12V | 5V | - | 1.4V @ 1.5A | 1.5A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1117D18L-UIC REG LINEAR 1.8V 1A TO252-3 |
2778 | 0.00 |
ДобавитьРасследования |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 18V | 1.8V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1117D33L-UIC REG LINEAR 3.3V 1A TO252-3 |
3654 | 0.00 |
ДобавитьРасследования |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
Таблицы данных |
|
AP1117D50L-UIC REG LINEAR 5V 1A TO252-3 |
3933 | 0.00 |
ДобавитьРасследования |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
Запрос котировок
