Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
CS9201YDFR8GIC REG LINEAR 5V 100MA 8SOIC |
2285 | 0.64 |
ДобавитьРасследования |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Positive | Fixed | 1 | 36V | 5V | - | 0.6V @ 100mA | 100mA | 750 µA | 20 mA | 75dB (120Hz) | - | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | -40°C ~ 125°C | Surface Mount |
|
Таблицы данных |
|
CS9202YDFR8GIC REG LDO 3.3V W/NOCAP 8SOIC |
3693 | 0.00 |
ДобавитьРасследования |
8-SOIC (0.154, 3.90mm Width) | Cut Tape (CT) | - | Obsolete | - | - | 1 | - | - | - | - | 100mA | - | - | - | - | - | -40°C ~ 125°C | Surface Mount |
|
Таблицы данных |
|
CS8101YT5GIC REG LINEAR 5V 100MA TO220-5 |
2411 | 0.00 |
ДобавитьРасследования |
TO-220-5 | Tube | - | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.6V @ 100mA | 100mA | 140 µA | 20 mA | 75dB (120Hz) | Enable, Reset | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
CS8101YTHA5GIC REG LIN 5V 100MA TO220-5 |
250 | 1.35 |
ДобавитьРасследования |
TO-220-5 Formed Leads | Tube,Tube | - | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.6V @ 100mA | 100mA | 140 µA | 20 mA | 75dB (120Hz) | Enable, Reset | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
CS8101YTVA5GIC REG LIN 5V 100MA TO220-5 |
5650 | 1.35 |
ДобавитьРасследования |
TO-220-5 Formed Leads | Tube,Tube | - | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.6V @ 100mA | 100mA | 140 µA | 20 mA | 75dB (120Hz) | Enable, Reset | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
CS8126-1YT5GIC REG LINEAR 5V 750MA TO220-5 |
2973 | 0.00 |
ДобавитьРасследования |
TO-220-5 | Tube | - | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 500mA | 750mA | 70 mA | 100 mA | 75dB (120Hz) | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
CS8151CGN8GIC REG LINEAR 5V 100MA 8DIP |
550 | 1.44 |
ДобавитьРасследования |
8-DIP (0.300, 7.62mm) | Tube,Tube | - | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 100mA | 100mA | - | - | 75dB (120Hz) | Reset, Wake-Up, Watchdog | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
CS8151YNF16GIC REG LINEAR 5V 100MA 16DIP |
3634 | 0.00 |
ДобавитьРасследования |
16-DIP (0.300, 7.62mm) | Tube | - | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 100mA | 100mA | - | - | 75dB (120Hz) | Reset, Wake-Up, Watchdog | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
CS8151YT7GIC REG LINEAR 5V 100MA TO220-7 |
500 | 1.32 |
ДобавитьРасследования |
TO-220-7 | Tube,Tube | - | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 100mA | 100mA | - | - | 75dB (120Hz) | Reset, Wake-Up, Watchdog | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|

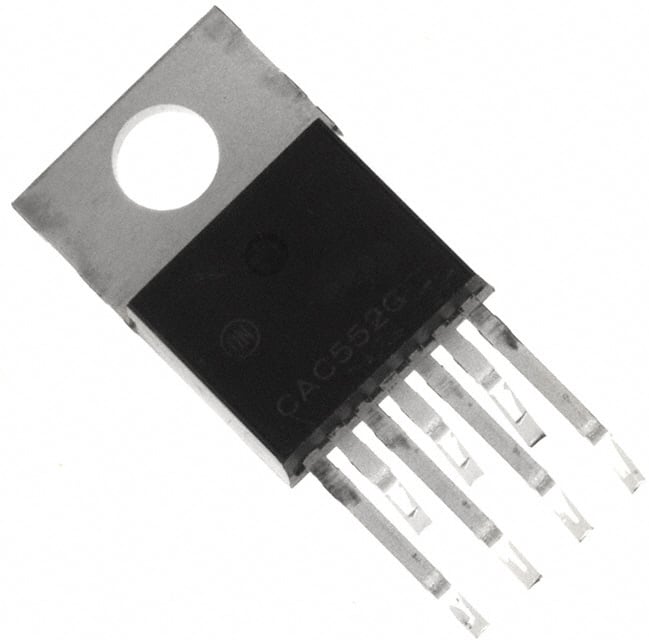

CS8151YTHA7GIC REG LINEAR 5V 100MA TO220-7 |
1250 | 1.46 |
ДобавитьРасследования |
TO-220-7 Formed Leads | Tube,Tube | - | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 100mA | 100mA | - | - | 75dB (120Hz) | Reset, Wake-Up, Watchdog | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
CS8151YTVA7GIC REG LINEAR 5V 100MA TO220-7 |
650 | 2.90 |
ДобавитьРасследования |
TO-220-7 Formed Leads | Tube,Tube | - | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 100mA | 100mA | - | - | 75dB (120Hz) | Reset, Wake-Up, Watchdog | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
LM2931CTGIC REG LIN POS ADJ 100MA TO220-5 |
3249 | 0.00 |
ДобавитьРасследования |
TO-220-5 | Tube | - | Obsolete | Positive | Adjustable | 1 | 26V | 2.7V | 29.5V | 0.6V @ 100mA | 100mA | 1 mA | 6 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
LM317LBDGIC REG LIN POS ADJ 100MA 8SOIC |
3344 | 1.00 |
ДобавитьРасследования |
8-SOIC (0.154, 3.90mm Width) | Bulk,Tube | - | Obsolete | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 100mA | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount |
|
Таблицы данных |
|
LM350TGIC REG LINEAR POS ADJ 3A TO220-3 |
2973 | 0.00 |
ДобавитьРасследования |
TO-220-3 | Tube | - | Obsolete | Positive | Adjustable | 1 | 35V | 1.2V | 33V | - | 3A | 10 mA | - | 65dB ~ 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | Through Hole |
|
Таблицы данных |
|

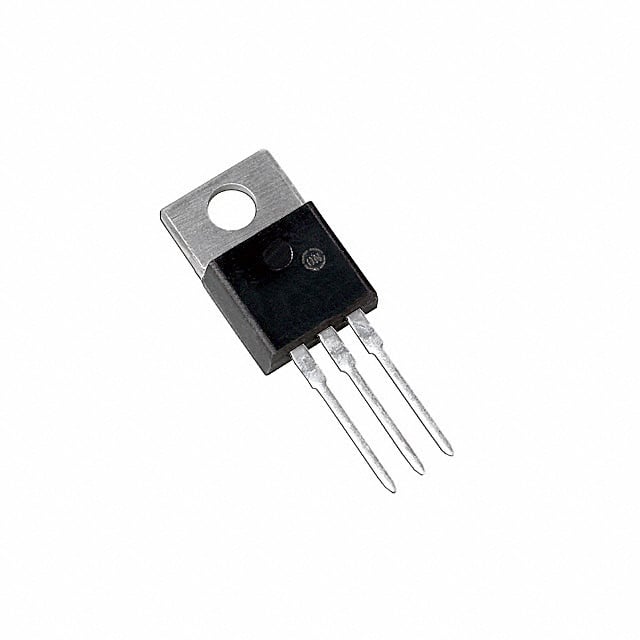

MC7808BTGIC REG LINEAR 8V 1A TO220AB |
2832 | 0.00 |
ДобавитьРасследования |
TO-220-3 | Bulk,Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
MC7812ACD2TGIC REG LINEAR 12V 1A D2PAK |
3240 | 1.00 |
ДобавитьРасследования |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Bulk,Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 60dB (1kHz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Surface Mount |
|
Таблицы данных |
.jpg)
|
MC78LC50HT1GIC REG LINEAR 5V 80MA SOT89-3 |
3705 | 0.00 |
ДобавитьРасследования |
TO-243AA | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 12V | 5V | - | 0.038V @ 1mA | 80mA | 3.9 µA | - | - | - | - | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
MC78M08BTGIC REG LINEAR 8V 500MA TO220AB |
7209 | 0.31 |
ДобавитьРасследования |
TO-220-3 | Bulk,Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | - | 500mA | - | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
MC7905ACTGIC REG LINEAR -5V 1A TO220AB |
13387 | 0.31 |
ДобавитьРасследования |
TO-220-3 | Bulk,Tube | - | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | 1.3V @ 1A (Typ) | 1A | - | - | 70dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | Through Hole |
|
Таблицы данных |
|
MC7908CTGIC REG LINEAR -8V 1A TO220AB |
300169 | 0.32 |
ДобавитьРасследования |
TO-220-3 | Bulk,Tube | - | Obsolete | Negative | Fixed | 1 | -35V | -8V | - | 1.3V @ 1A (Typ) | 1A | - | - | 62dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | Through Hole |
