Грузовой вагон ( )| Таблицы данных | Фотографии | Производитель. Часть # | Акции | Цены | А | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Таблицы данных |
|
PQ070XZ1HZZHIC REG LINEAR POS ADJ 1.5A SC63 |
3876 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 1V @ 1.25A | 1.5A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|

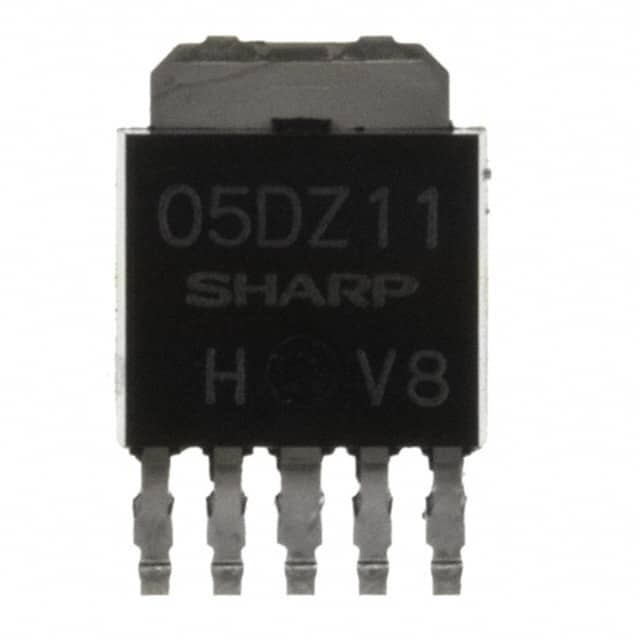

PQ05DZ11J00HIC REG LINEAR 5V 1A SC63 |
3439 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.5V @ 500mA | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
Таблицы данных |
|
PQ033Y053ZZHIC REG LINEAR 3.3V 5A SC63 |
3569 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 0.5V @ 5A | 5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
| |
|

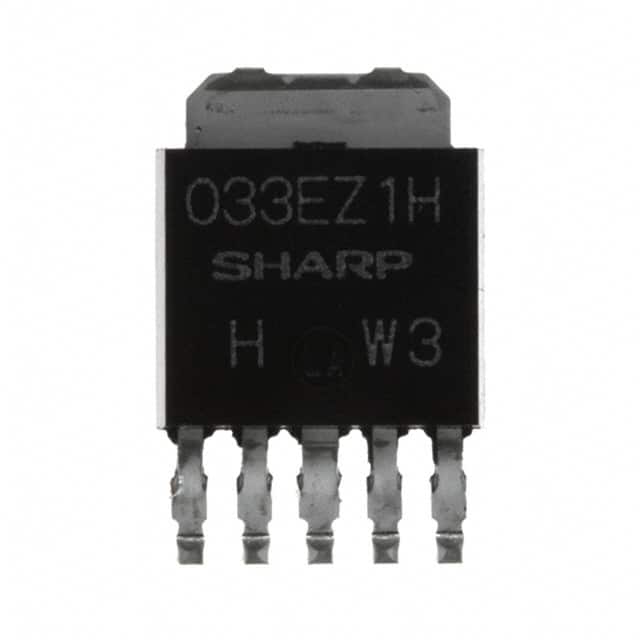

PQ033EZ1HZZHIC REG LINEAR 3.3V 1.5A SC63 |
3524 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 1V @ 1.25A | 1.5A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
PQ033EZ01ZZHIC REG LINEAR 3.3V 1A SC63 |
2917 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 0.5V @ 500mA | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
PQ070XZ5MZZHIC REG LINEAR POS ADJ 500MA SC63 |
2010 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 300mA | 500mA | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
Таблицы данных |
|
PQ12RD1BJ00HIC REG LINEAR 12V 1A TO220-4 |
3298 | 0.00 |
ДобавитьРасследования |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 12V | - | 0.5V @ 500mA | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
Таблицы данных |
|

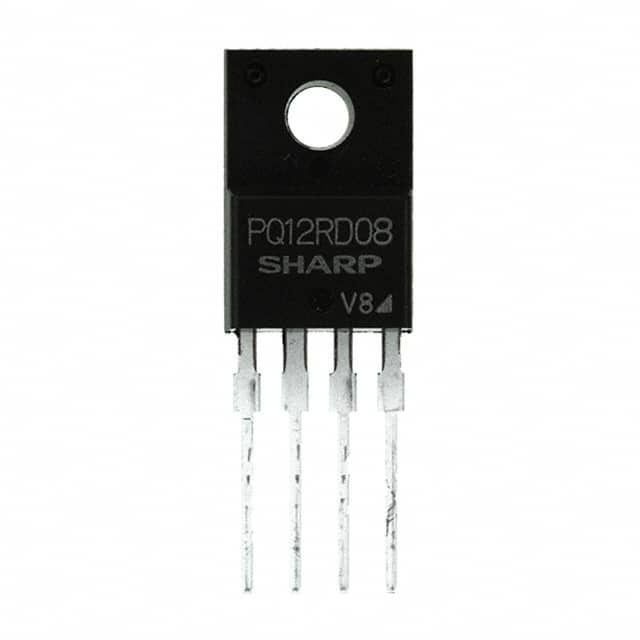

PQ12RD08J00HIC REG LINEAR 12V 800MA TO220-4 |
2461 | 0.00 |
ДобавитьРасследования |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 12V | - | 0.5V @ 500mA | 800mA | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
| |
|

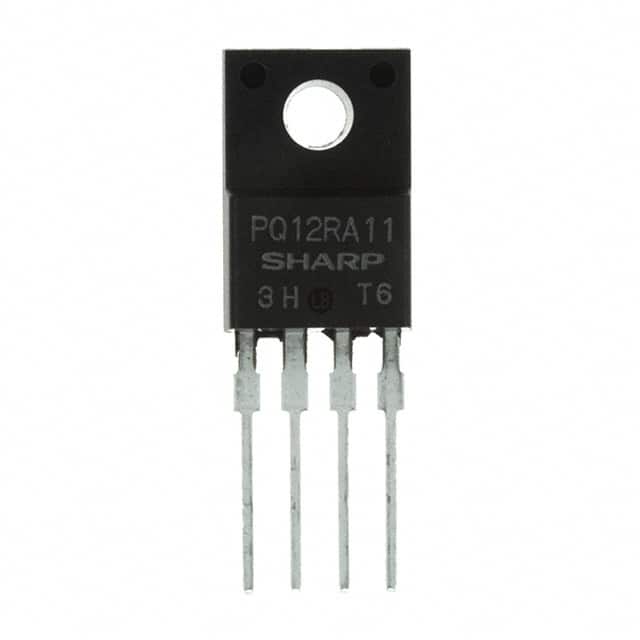

PQ12RA11J00HIC REG LINEAR 12V 1A TO220-4 |
2411 | 0.00 |
ДобавитьРасследования |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | - | 1A | 8 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
Таблицы данных |
|
PQ12DZ51J00HIC REG LINEAR 12V 500MA SC63 |
2674 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 24V | 12V | - | 0.5V @ 300mA | 500mA | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
Таблицы данных |
|
PQ12DZ11J00HIC REG LINEAR 12V 1A SC63 |
2134 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 24V | 12V | - | 0.5V @ 500mA | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
Таблицы данных |
|
PQ09RD1BJ00HIC REG LINEAR 9V 1A TO220-4 |
2648 | 0.00 |
ДобавитьРасследования |
TO-220-4 (Formed Leads) | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 9V | - | 0.5V @ 500mA | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
Таблицы данных |
|
PQ07VR5MAZZHIC REG LINEAR POS ADJ 500MA SC63 |
2838 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | - | 500mA | 5 mA | - | 60dB (120Hz) | Reset | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
Таблицы данных |
|
PQ09DZ51J00HIC REG LINEAR 9V 500MA SC63 |
2248 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 24V | 9V | - | 0.5V @ 300mA | 500mA | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
Таблицы данных |
|

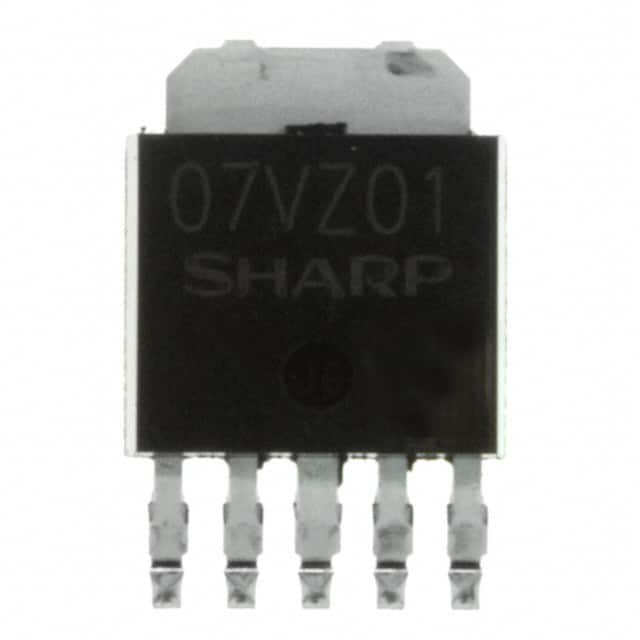

PQ07VZ012ZPHIC REG LINEAR POS ADJ 1A SC63 |
2724 | 0.00 |
ДобавитьРасследования |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 500mA | 1A | 7 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | Surface Mount |
|
Таблицы данных |
|
PQ1K253M2ZPHIC REG LIN 2.5V 300MA SOT23L-6 |
2878 | 0.00 |
ДобавитьРасследования |
SOT-23L-6 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 9V | 2.5V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | Surface Mount |
|
Таблицы данных |
|
PQ1K303M2ZPHIC REG LINEAR 3V 300MA SOT23L-6 |
2217 | 0.00 |
ДобавитьРасследования |
SOT-23L-6 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 9V | 3V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | Surface Mount |
|
Таблицы данных |
|
PQ1K333M2ZPHIC REG LIN 3.3V 300MA SOT23L-6 |
2449 | 0.00 |
ДобавитьРасследования |
SOT-23L-6 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 9V | 3.3V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | Surface Mount |
|
Таблицы данных |
|
PQ1K503M2ZPHIC REG LINEAR 5V 300MA SOT23L-6 |
3597 | 0.00 |
ДобавитьРасследования |
SOT-23L-6 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 9V | 5V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | Surface Mount |
|
Таблицы данных |
|

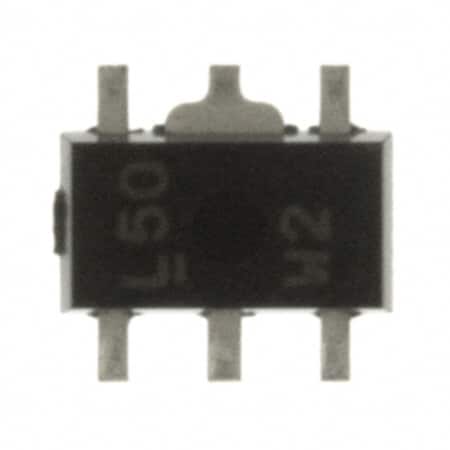

PQ1L503M2SPQIC REG LINEAR 5V 300MA SOT89 |
2638 | 0.00 |
ДобавитьРасследования |
SOT-89-5/6 | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | Positive | Fixed | 1 | 16V | 5V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | Surface Mount |
