Diodes-Rectifiers-Single,Discrete Semiconductor Products

Таблицы данных	Производитель. Часть #	Акции	Цены	А	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Package / Case	Capacitance @ Vr, F	Supplier Device Package	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)

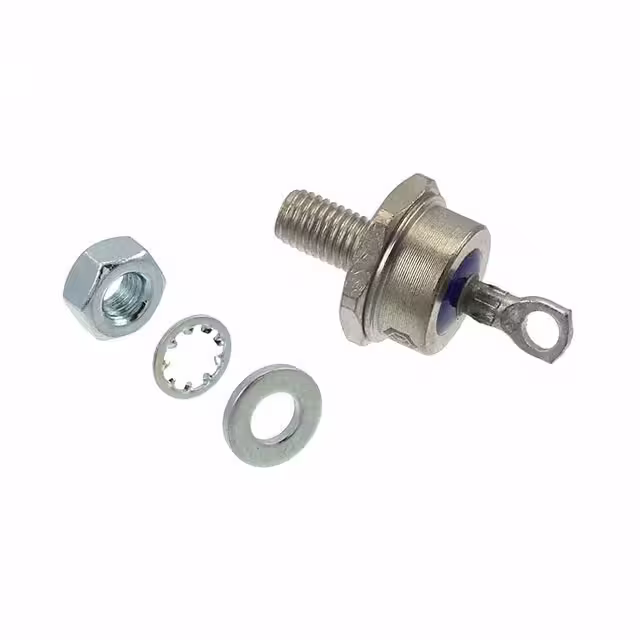

Таблицы данных	FR85G02 DIODE GEN PURP 400V 85A DO5 GeneSiC Semiconductor	383	12.13	- + Добавить Расследования	Bulk		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Chassis, Stud Mount	-	200 ns	25 µA @ 100 V	400 V	85A	-40°C ~ 125°C	1.4 V @ 85 A
Таблицы данных	12TQ100 DIODE SCHOTTKY 100V 15A TO220AC SMC Diode Solutions	1950	0.99	- + Добавить Расследования	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	500pF @ 5V, 1MHz	-	550 µA @ 100 V	100 V	15A	-55°C ~ 175°C	840 mV @ 15 A
Таблицы данных	CURN105-HF DIODE GEN PURP 1KV 1A 1206 Comchip Technology	15111	0.52	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	10pF @ 4V, 1MHz	75 ns	-	1000 V	1A	-65°C ~ 175°C	1.7 V @ 1 A
Таблицы данных	VS-70HFR80 DIODE GEN PURP 800V 70A DO203AB Vishay General Semiconductor - Diodes Division	3428	12.67	- + Добавить Расследования	Bulk		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Chassis, Stud Mount	-	-	9 mA @ 800 V	800 V	70A	-65°C ~ 180°C	1.35 V @ 220 A
Таблицы данных	STPSC406B-TR DIODE SCHOTTKY 600V 4A DPAK STMicroelectronics	4832	1.85	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	200pF @ 0V, 1MHz	0 ns	50 µA @ 600 V	600 V	4A	-40°C ~ 175°C	1.9 V @ 4 A
Таблицы данных	1N5819 A0G DIODE SCHOTTKY 40V 1A DO204AL Taiwan Semiconductor Corporation	8880	0.52	- + Добавить Расследования	Cut Tape (CT),Tape & Box (TB)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	55pF @ 4V, 1MHz	-	1 mA @ 40 V	40 V	1A	-55°C ~ 125°C	600 mV @ 1 A
Таблицы данных	LSIC2SD120E20CC SCHOTTKY DIODE SIC 1200V 20A Littelfuse Inc.	118	12.87	- + Добавить Расследования	Tube	Gen2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	582pF @ 1V, 1MHz	0 ns	100 µA @ 1200 V	1200 V	28A (DC)	-55°C ~ 175°C	1.8 V @ 10 A
Таблицы данных	BYV29-500,127 DIODE GEN PURP 500V 9A TO220AC WeEn Semiconductors	4999	1.00	- + Добавить Расследования	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	60 ns	50 µA @ 500 V	500 V	9A	150°C (Max)	1.25 V @ 8 A
Таблицы данных	SE30AFJHM3/6A DIODE GEN PURP 600V 1.4A DO221AC Vishay General Semiconductor - Diodes Division	64655	0.52	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	Automotive, AEC-Q101, eSMP®	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	19pF @ 4V, 1MHz	1.5 µs	10 µA @ 600 V	600 V	1.4A (DC)	-55°C ~ 175°C	1.1 V @ 3 A

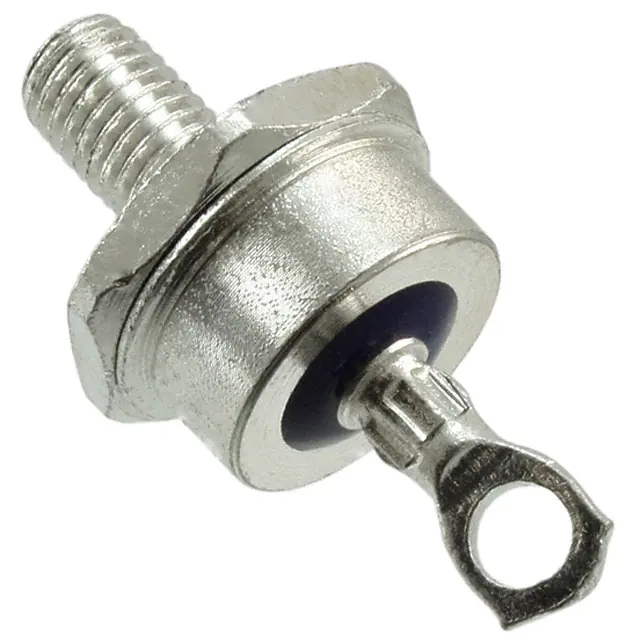

Таблицы данных	S85Q DIODE GEN PURP 1.2KV 85A DO5 GeneSiC Semiconductor	159	18.14	- + Добавить Расследования	Bulk		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Chassis, Stud Mount	-	-	10 µA @ 100 V	1200 V	85A	-65°C ~ 180°C	1.1 V @ 85 A
Таблицы данных	SF68G DIODE GEN PURP 600V 6A DO201AD Taiwan Semiconductor Corporation	2302	1.79	- + Добавить Расследования	Cut Tape (CT),Tape & Box (TB)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	50pF @ 4V, 1MHz	35 ns	5 µA @ 600 V	600 V	6A	-55°C ~ 150°C	1.7 V @ 6 A
Таблицы данных	RR1LAM6STR DIODE GEN PURP 600V 1A PMDTM Rohm Semiconductor	3000	0.52	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	-	10 µA @ 600 V	600 V	1A	150°C (Max)	1.1 V @ 1 A
Таблицы данных	LSIC2SD120E30CC SCHOTTKY DIODE SIC 1200V 30A Littelfuse Inc.	535	19.29	- + Добавить Расследования	Tube	Gen2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	920pF @ 1V, 1MHz	0 ns	100 µA @ 1200 V	1200 V	44A (DC)	-55°C ~ 175°C	1.8 V @ 15 A
Таблицы данных	VS-10WQ045FN-M3 DIODE SCHOTTKY 45V 10A DPAK Vishay General Semiconductor - Diodes Division	5310	1.04	- + Добавить Расследования	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	760pF @ 5V, 1MHz	-	1 mA @ 45 V	45 V	10A	-40°C ~ 175°C	800 mV @ 20 A
Таблицы данных	STTH1R06AF 600 V, 1 A SOD128FLAT TURBO 2 UL STMicroelectronics	5056	0.53	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	45 ns	1 µA @ 600 V	600 V	1A	175°C (Max)	1.9 V @ 1 A
Таблицы данных	E4D20120A E SERIES, 20 AMP, 1200V G4 SCHOT Wolfspeed, Inc.	844	25.55	- + Добавить Расследования	Tube	E-Series, Automotive	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	1500pF @ 0V, 1MHz	0 ns	200 µA @ 1200 V	1200 V	54.5A (DC)	-55°C ~ 175°C	1.8 V @ 20 A
Таблицы данных	BYV29X-600,127 DIODE GEN PURP 600V 9A TO220FP WeEn Semiconductors	1030	1.04	- + Добавить Расследования	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	60 ns	50 µA @ 600 V	600 V	9A	150°C (Max)	1.26 V @ 8 A
Таблицы данных	SS2P3L-M3/84A DIODE SCHOTTKY 30V 2A DO220AA Vishay General Semiconductor - Diodes Division	15537	0.53	- + Добавить Расследования	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	eSMP®	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	130pF @ 4V, 1MHz	-	200 µA @ 30 V	30 V	2A	-55°C ~ 150°C	500 mV @ 2 A
Таблицы данных	249NQ150-1 DIODE SCHOTTKY 150V PRM1-1 SMC Diode Solutions	593	39.21	- + Добавить Расследования	Bulk		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Chassis Mount	6000pF @ 5V, 1MHz	-	6 mA @ 150 V	150 V	-	-55°C ~ 175°C	1.07 V @ 240 A
Таблицы данных	VFT1045BP-M3/4W DIODE SCHOTTKY 45V 10A ITO220AC Vishay General Semiconductor - Diodes Division	2091	1.05	- + Добавить Расследования	Tube	TMBS®	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	500 µA @ 45 V	45 V	10A (DC)	200°C (Max)	680 mV @ 10 A

Total 48193 Records«Prev 1... 34 35 36 373839 40 41...2410 Next»
